Danfoss VFD500 Series User Manual

Chapter3 product appearance and wiring VFD500 high performance vector control frequency inverter user manual
!
3-1-5 280KW-400KW

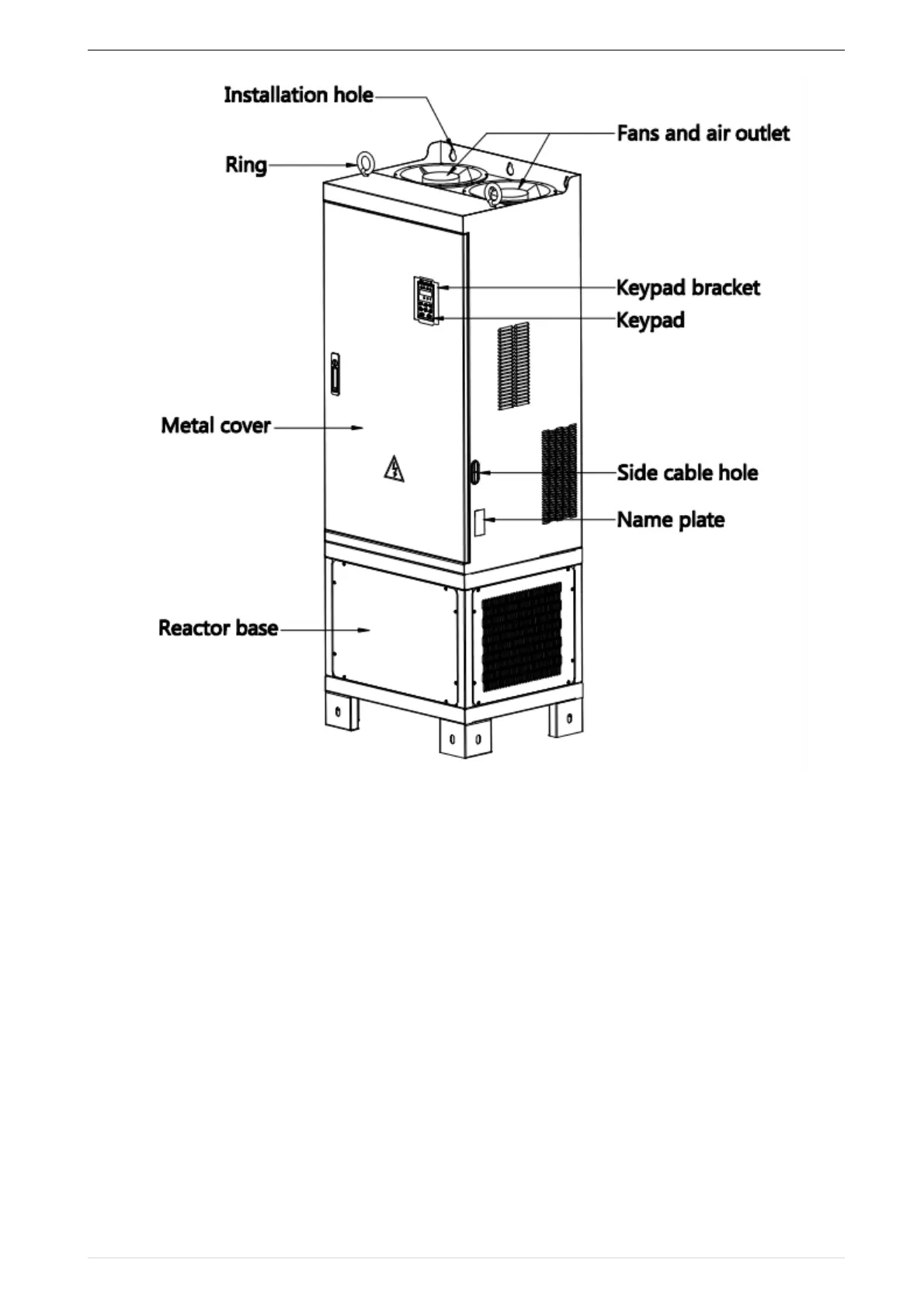

3.1.2Appearance and Mounting Hole Dimension
◆Keypay and keypad support size
The dimensions of the VFD500 series keypad are shown in Figure 3-1. When installing the keypad on the outside
of the control cabinet, use the two screws on the back of the keypad to fix it (right side of Figure 3-1).
