12 Group Motor 1 VF control parameter
P12.00
VF curve
0：linear VF#
1：Multi-point VF#
2：VF to the 1.3#
3：1.7 power#
4：2.0 power#
5：VF complete separation #
6：VF Half separation
0
★
P12.01
Multi-point VF Frequency
1(F0)
0.00Hz～multi-point VF curve F1(P12.03)
0.00Hz
☆
P12.02
Multi-point VF Voltage 0(V0)
0.0%～100.0%
0.0%
☆
P12.03
Multi-point VF Frequency
1(F1)
multi-point VF curve F0(P12.01)～multi-point
VF curve F2(P12.05)
50.00Hz
☆
P12.04
Multi-point VF Voltage 1(V1)
0.0%～100.0%
100.0%
☆
P12.05
Multi-point VF Frequency
1(F2)
multi-point VF curve F1(P12.03)～multi-point
VF curve F3(P12.08)
50.00Hz
☆
P12.06
Multi-point VF Voltage 2(V2)
0.0%～100.0%
100.0%
☆

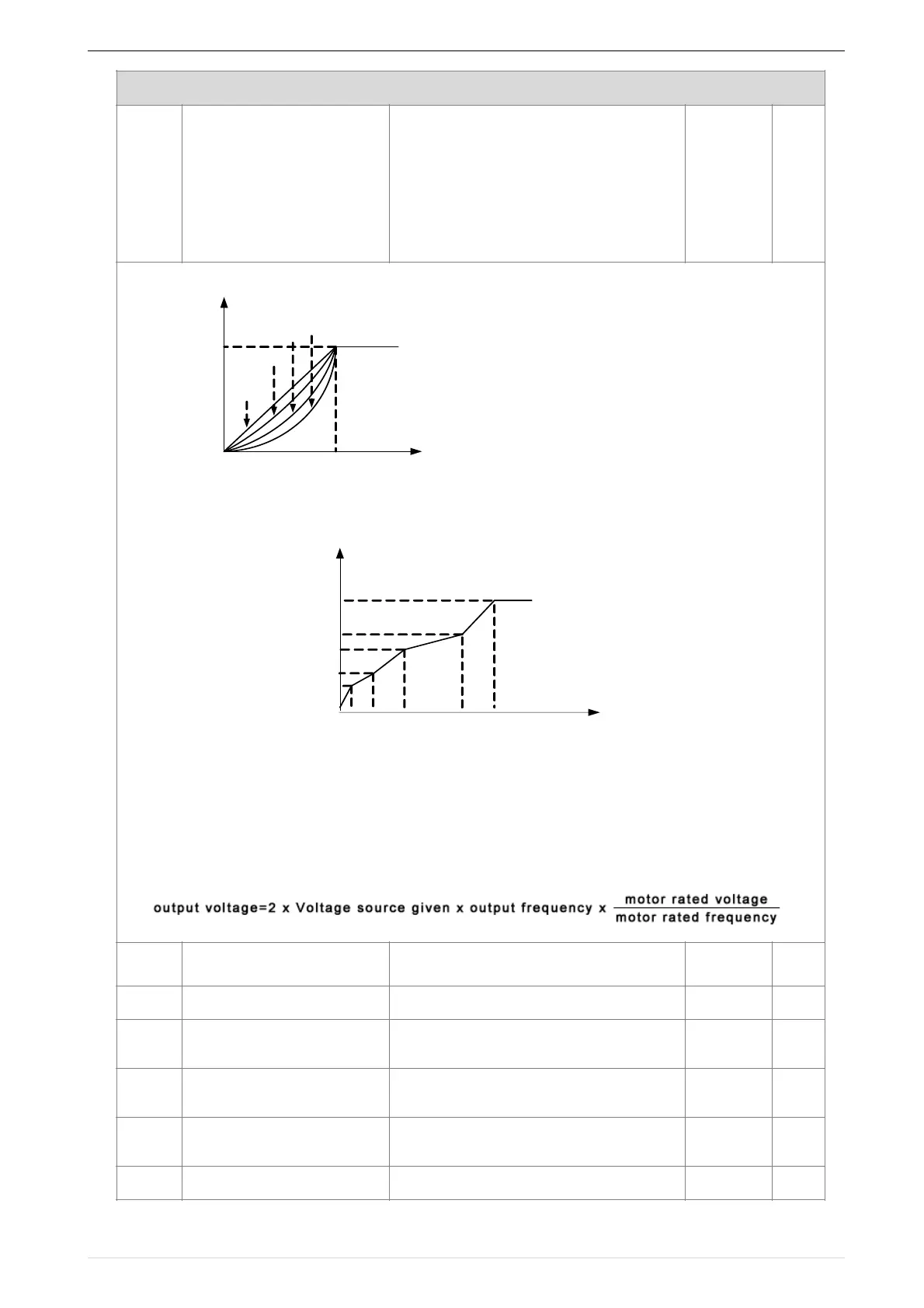

➢ When the VF curve is straight line and power curve, the frequency-voltage curve is as follows:
!
Figure 1：Straight line VF and 1.3、1.7、2.0 power VF
➢
Multi-stage line type VF curve：
Figure 2：Ø multi-stage line type VF curve
➢ VF full separation
The output voltage and output frequency are completely independent. The output frequency is determined by
the frequency source. The output voltage is determined by P12.20. Suitable for applications such as variable
frequency power or torque motors.
➢ VF semi-isolated
At this point the ratio of output voltage and output frequency given by the voltage source, the formula is as
follows:：
Output
frequenc
y
Output
Voltage
Motor rated
frequency
0
Motor rated
Voltage
Straight line V/F
1.3
power
1.7powe
r
2.0
power
Motor rated
voltage
Output
voltage
Motor rated
frequency
Output
frequen
cy
0
F
0
F
1
F
2
F
3
V0
V1
V2
V3
72
