VLT
®
5000 FLUX
■ Installation of VLT 5350-5500 380-500 V Compact
Nema 1 (IP 20) and IP 54

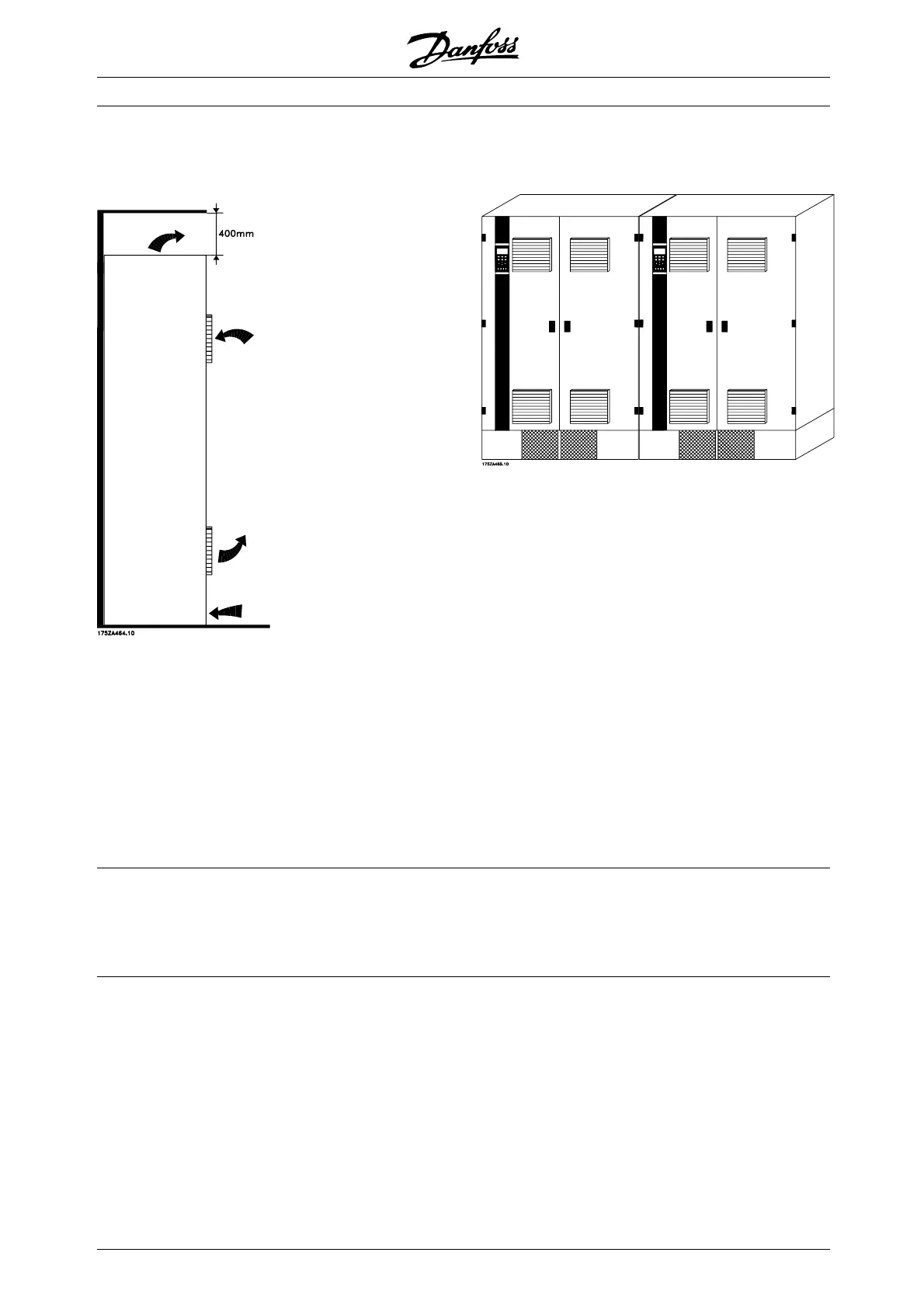

Cooling
All units in the above-mentioned series require a
minimum space of 400 mm above the enclosure
and must be installed on a plane floor. This applie
s
to both Nema 1 (IP 20) and IP 54 units.
Gaining access to the VLT 5350-5500 requires
a minimum space of 605 mm in front of the
frequency converter.
Filter mats in IP 54 units have to be changed regularly
depending on the operating environment.
Side-by-side
Compact Nema 1 (IP 20) and IP 54
All Nema 1 (IP 20) and IP 54 units in the
above-mentioned series can be installed side by
side without any space between them, since these
units do not require cooling on the sides.
■ IP 00 VLT 5350 - 5500 380 - 500 V
The IP 00 unit is des
igned for installation in a cabinet
when installed according to the instructions in the
VLT 5350 - 5500 Installation Guide, MG.56.AX.YY.
Please note, tha
t the same conditions as for
Nema 1 / IP 54 must be fulfilled.
MG.55.A6.02 - VLT is a registered Danfoss trademark
18
