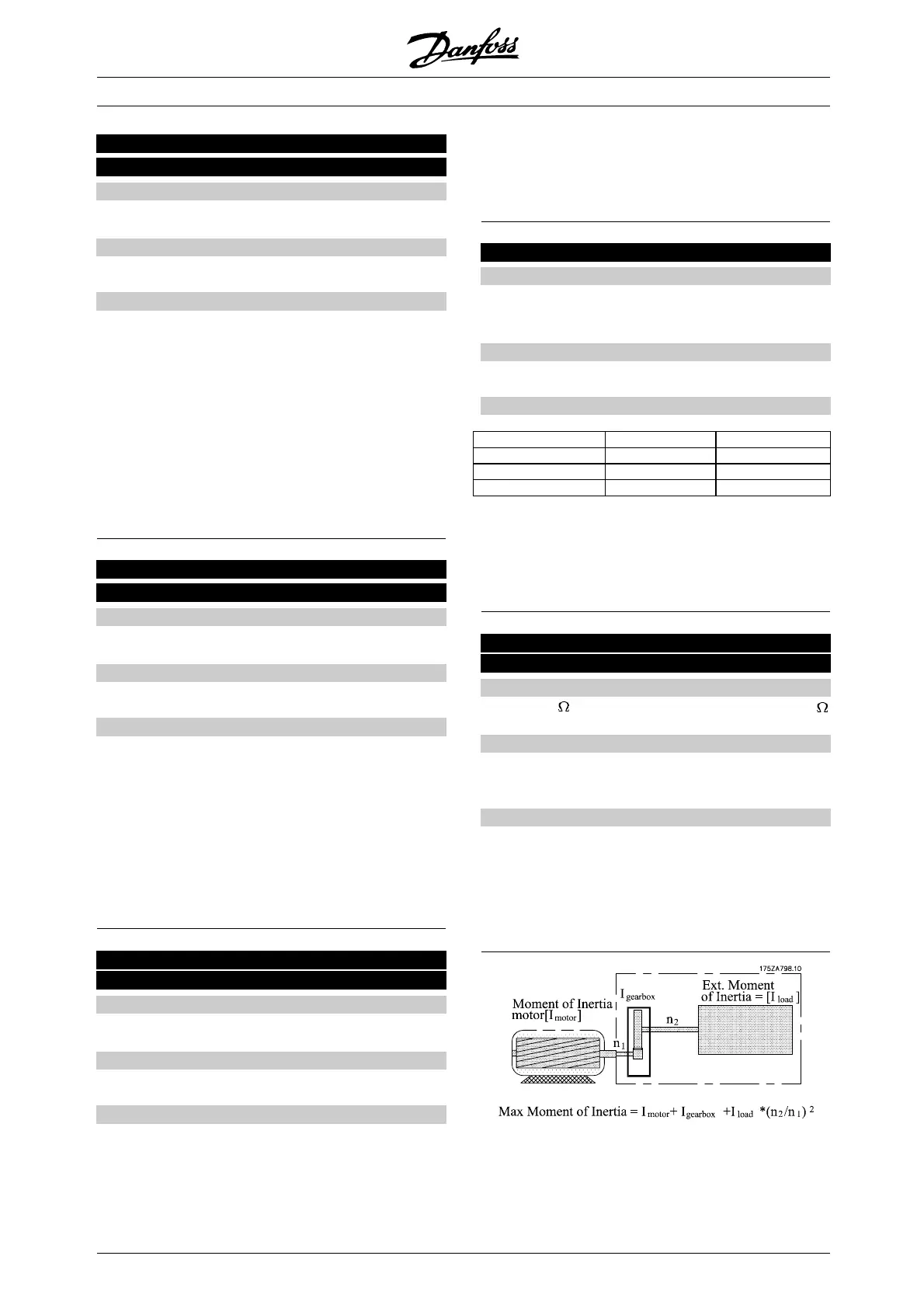

Danfoss VLT 5000 FLUX User Manual

VLT
®
5000 FLUX
152 Stator Leakage Reactance
(STATOR LEAKAGE)
Value:
Ohm
✭ Depends on unit
Function:
Set the stator leakage reactance of the motor.
Description of choice:
X
1
can be set as follows:
1. Automatic Motor Adaptation, where the
frequency converter measures on the motor
to determine the value.
2. The motor supplier states the value.
3. The factory setting of X
1
, selected by the
frequency converter itself on the basis of the
motor nameplate data, is used.
153 Rotor Leakage Reactance
(ROTOR LEAKAGE)
Value:
Ohm
✭ Depends on unit
Function:
Set the rotor leakage reactance of the motor.
Description of choice:
X
2
can be set as follows:
1. Automatic Motor Adaptation, where the
frequency converter measures on the motor
to determine the value.
2. The motor supplier states the value.
3. The factory setting of X
2
, selected by the
frequency converter itself on the basis of the
motor nameplate data, is used.
154 Main Reactance
(MAIN REACTANCE)
Value:
Ohm
✭ Depends on unit
Function:
Set the main reactance of the motor.
Description of choice:
X
h
can be set as follows:
1. Automatic Motor Adaptation, where the
frequency converter measures on the motor
to determine the value.
2. The motor supplier states the value.
3. The factory setting of X
h
, selected by the
frequency converter itself on the basis of the
motor nameplate data, is used.
156 Pole Number (POLE NUMBER)
Value:
Depends on motor type
Value 2 - 100 poles
✭ 4-pole motor
Function:
Set the pole number of the motor
Description of choice:
Poles ~n
n
@50Hz ~n
n
@60Hz
2 2700 - 2880 3250 - 3460
4 1350 - 1450 1625 - 1730
6 700 - 960 840 - 1153
Theabovetableshowsthenormalspeedrange
for various motor types. Motors designed for other
frequencies must be defined separat
ely.
158 Iron loss Resistance
(IRONLOSS RES.)
Value:
1 -10.000
✭ 10.000
Function:
Set the equivalents of the R
Fe
to compensate
forironlossesinthemotor.
Description of choice:
The function is switched off when the value
10.000 is chosen.
The Iron loss resistance most be less than:
R
Fe
<P
0
/I
0
2
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.55.A6.02 - VLT is a registered Danfoss trademark
76
