Danfoss VLT 5000 FLUX User Manual

VLT
®
5000 FLUX

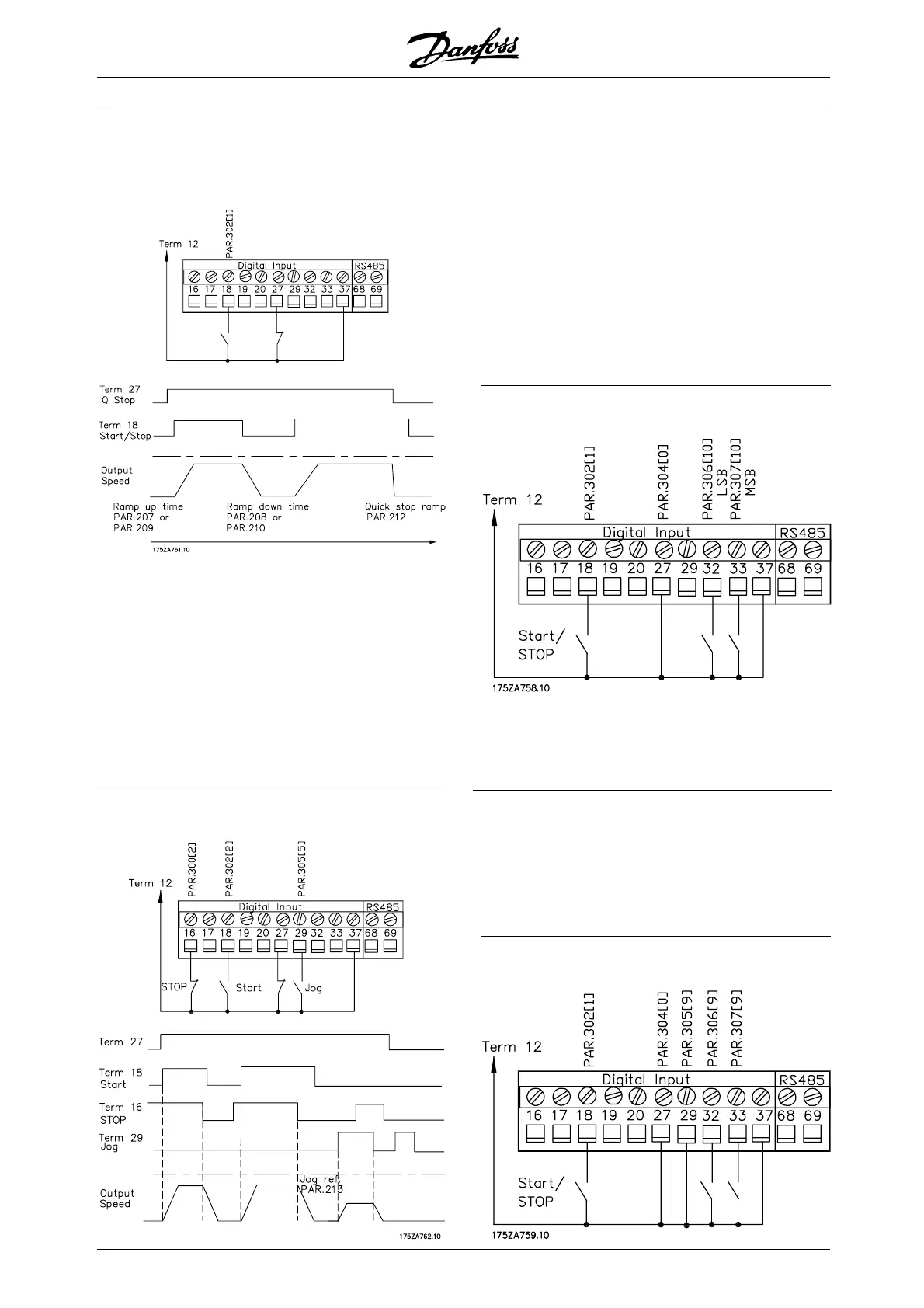

■ Connection examples
■ 2-wire start/stop
Start - Stop (18) Parameter 302 Start [1]
Quick Stop (27) Parameter 304 Coasting Stop
inverted [0]
Ramp up Time Parameter 207/209
[0.01…3600]
Ramp down Time Parameter 208/210
[0.01…3600]
Quick Stop Ramp Parameter 212 [0.01…3600]
■ Pulse start/stop
Start (18) Parameter 302 Pulse Start [2]
Stop (16) Parameter 300 Stop inverted [2]
Jog Parameter 305 Jog [5]
Ramp up Time Parameter 207/209
[0.01…3600]
Ramp down
Time
Parameter 208/210
[0.01…3600]
Jog Speed Parameter 213 [0.0…Parameter
202]
Jog Ramp Time Parameter 211 [0.01… 3600]
Quick Stop (27) Parameter 304 Coasting Stop
inverted [0]
■ Setup change
Start - Stop (18) Parameter 302 Start [1]
Active Set-up Parameter 004 Multi-setup [5]
Set-up MSB Parameter 306 [11]
Set-up LSB Parameter 307 [11]
Term 33 Term 32
Select setup 1 0 0
Select setup 2 1 0
Select setup 3 0 1
Select setup 4 1 1
■ Digital speed up/down
MG.55.A6.02 - VLT is a registered Danfoss trademark
36
