Danfoss VLT 5000 FLUX User Manual

VLT
®
5000 FLUX
Reference
Handling

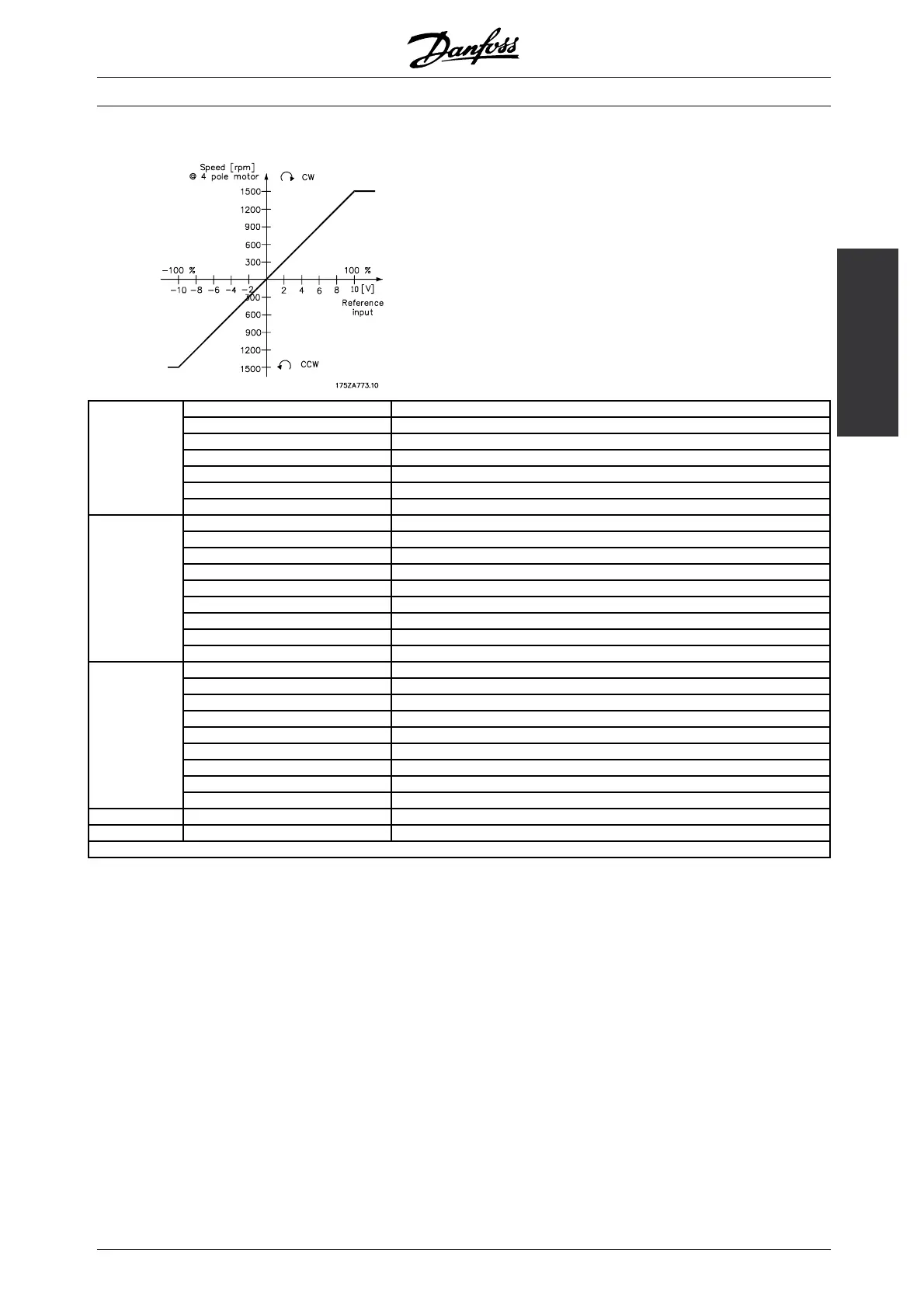

Example 3: External reference signal from an external source =
-10 V (1500 rpm ccw) - +10 V (1500 rpm cw)
Configuration (parameter 100) = Speed
control closed loop.
Configuration Parameter 100 Config Mode [1]
Reference term (53) Parameter 308 [1]
Min Ref signal (1V) Parameter 309 [0.0...10.0 V]
Max Ref signal (5 V) Parameter 310 [Parameter 309...10.0 V]
Ref Range Parameter 203 Min - Max [0]
Min Ref (20.000 rpm) Parameter 204 [-100,000.000...Parameter 205]
Ex 1
Max Ref (1500.000 rpm) Parameter 205 [Parameter 204...100,000.000]
Configuration Parameter 100 Config Mode [0 or 5]
Reference term (53) Parameter 308 [1]
Min Ref signal (0V) Parameter 309 [0.0...10.0 V]
Max Ref signal (10 V) Parameter 310 [Parameter 309...10.0 V]
Ref Range Parameter 203 -Max - + Max [1]
Ref Type Parameter 214 Sum[0]
Max Ref (3000.000 rpm) Parameter 205 [Parameter 204...100,000.000]
Preset Ref (-50%) Parameter 215 [-100.00% -+100.00%]
Ex 2
Output speed / direction Parameter 200 4500 rpm Both Direct [1]
Configuration Parameter 100 Config Mode [1]
Reference term (53) Parameter 308 [1]
Min Ref signal (0 V) Parameter 309 [0.0...10.0 V]
Max Ref signal (10 V) Parameter 310 [Parameter 309...10.0 V]
Ref Range Parameter 203 -Max - + Max [1]
Ref Type Parameter 214 Sum[0]
Max Ref (3000.000 rpm) Parameter 205 [Parameter 204...100,000.000]
Preset Ref (0%) Parameter 215 [-100.00% -+100.00%]
Ex 3
Output speed / direction Parameter 200 4500 rpm Both Direct [1]
Catch-up/slow down and freeze reference via digital inputs 16. 17, 29. 32 or 33.
MG.55.A6.02 - VLT is a registered Danfoss trademark
53
