Danfoss VLT AQUA Drive FC 202

e30bu185.11
-XD4.1
7
8
3
5
6
-XD4.4
4
-XD11.3
-XDL.1
1
2
R
TS
L1R
L3T
L2S
-XD4.3

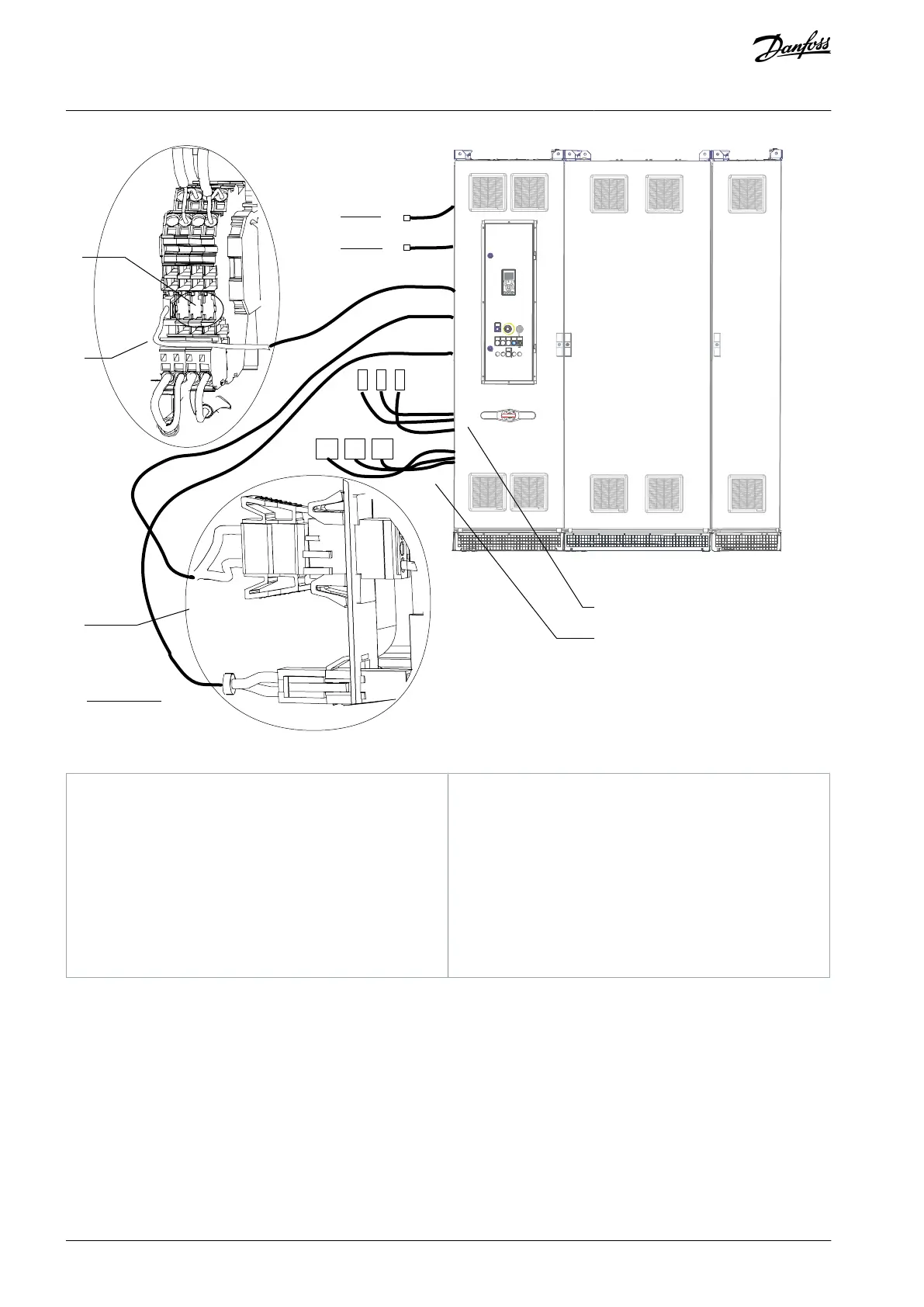

Illustration 37: Split Shipment Electrical Connections (Input Power Options Cabinet + E6h Drive Cabinet + Top Exit Cabinet)
1
Additional terminal connections
2
Thermal protection wiring harness to input lter
cabinet
3
DC-link harness to fan supply in the input lter cabi-
net
4
Cabinet heater supply harness to input lter cabinet
5
PHF contactor 1 supply harness to input lter cabi-
net (only with PHF option)
6
PHF contactor 2 supply harness to input lter cabi-
net (only with PHF option)
7
Mains cables (R/S/T) to input terminals (R/S/T) in the
input lter cabinet
8
Mains cables (L1R/L2S/L3T) to output terminals
(L1R/L2S/L3T) in the input lter cabinet
AQ262141056213en-000201 / 130R088266 | Danfoss A/S © 2020.09
Electrical Installation
VLT® AQUA Drive FC 202
Operating Guide
