Danfoss VLT FC 103 Instruction Manual

1
2
3
4
5
6
7
8
9
10
11
M
12
37
130BB749.10

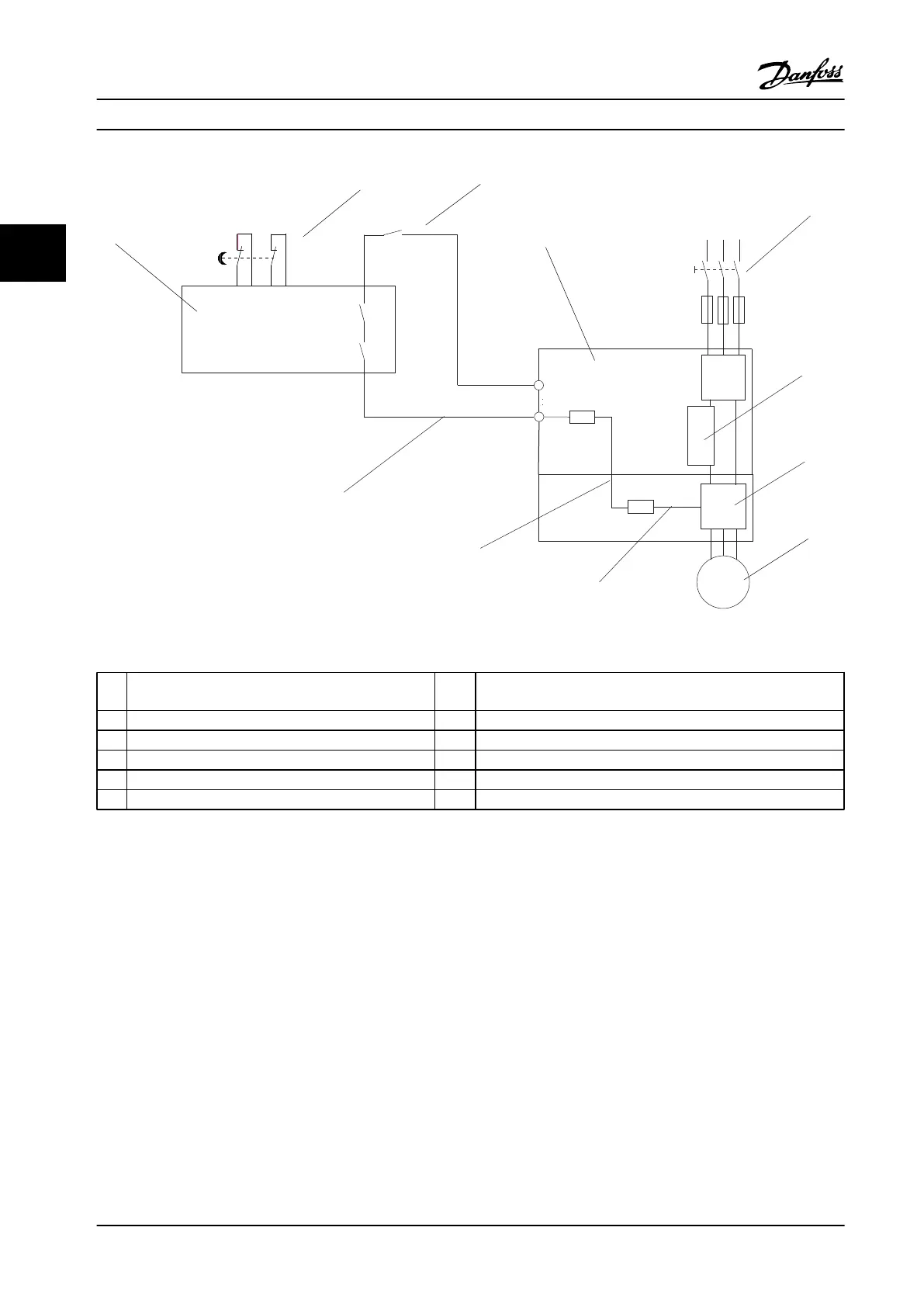

Figure 2.37 Installation to Achieve a Stopping Category 0 (EN 60204-1) with Safety Cat. 3 (EN 954-1) / PL “d” (ISO 13849-1).
1
Safety device Cat. 3 (circuit interrupt device, possibly
with release input)
7 Inverter
2 Door contact 8 Motor
3 Contactor (Coast) 9 5 V DC
4 Adjustable frequency drive 10 Safe channel
5 Line power 11 Short-circuit protected cable (if not inside installation cabinet)
6 Control board
Table 2.9 Legend to Figure 2.37
STO commissioning test
After installation and before first operation, perform a commissioning test of the installation making use of STO. Also,
perform the test after each modification of the installation.
Installation Instruction Manual
28 Danfoss A/S © Rev. 2014-02-10 All rights reserved. MG16E222
