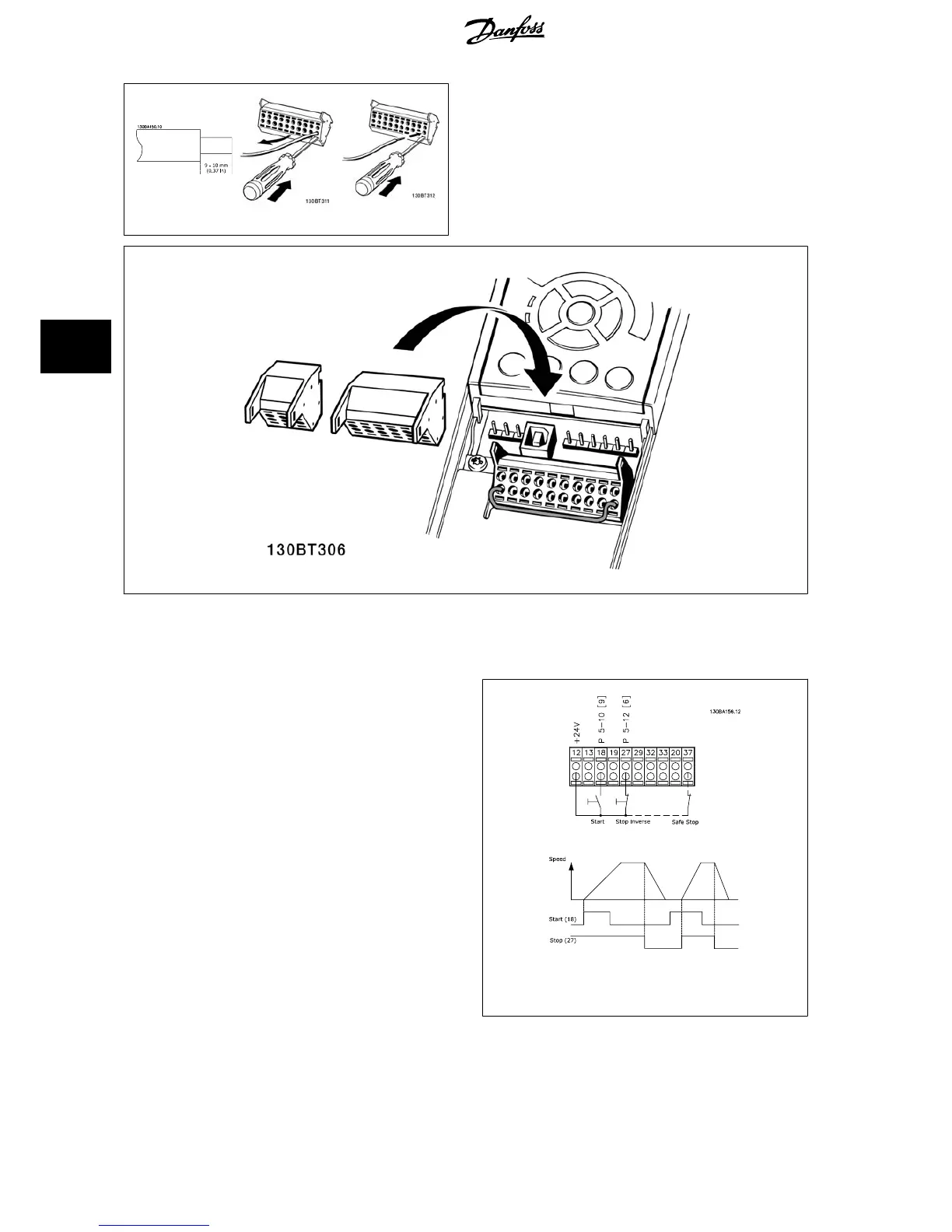

5.2.11 Basic Wiring Example
1. Mount terminals from the accessory bag to the front of the fre-
quency converter.
2. Connect terminals 18 and 27 to +24 V (terminal 12/13)
Default settings:
18 = latched start
27 = stop inverse
Illustration 5.19: Terminal 37 available with Safe Stop Func-
tion only!
