Danfoss VLT Midi Drive FC 280 Design Guide

2 Product Overview

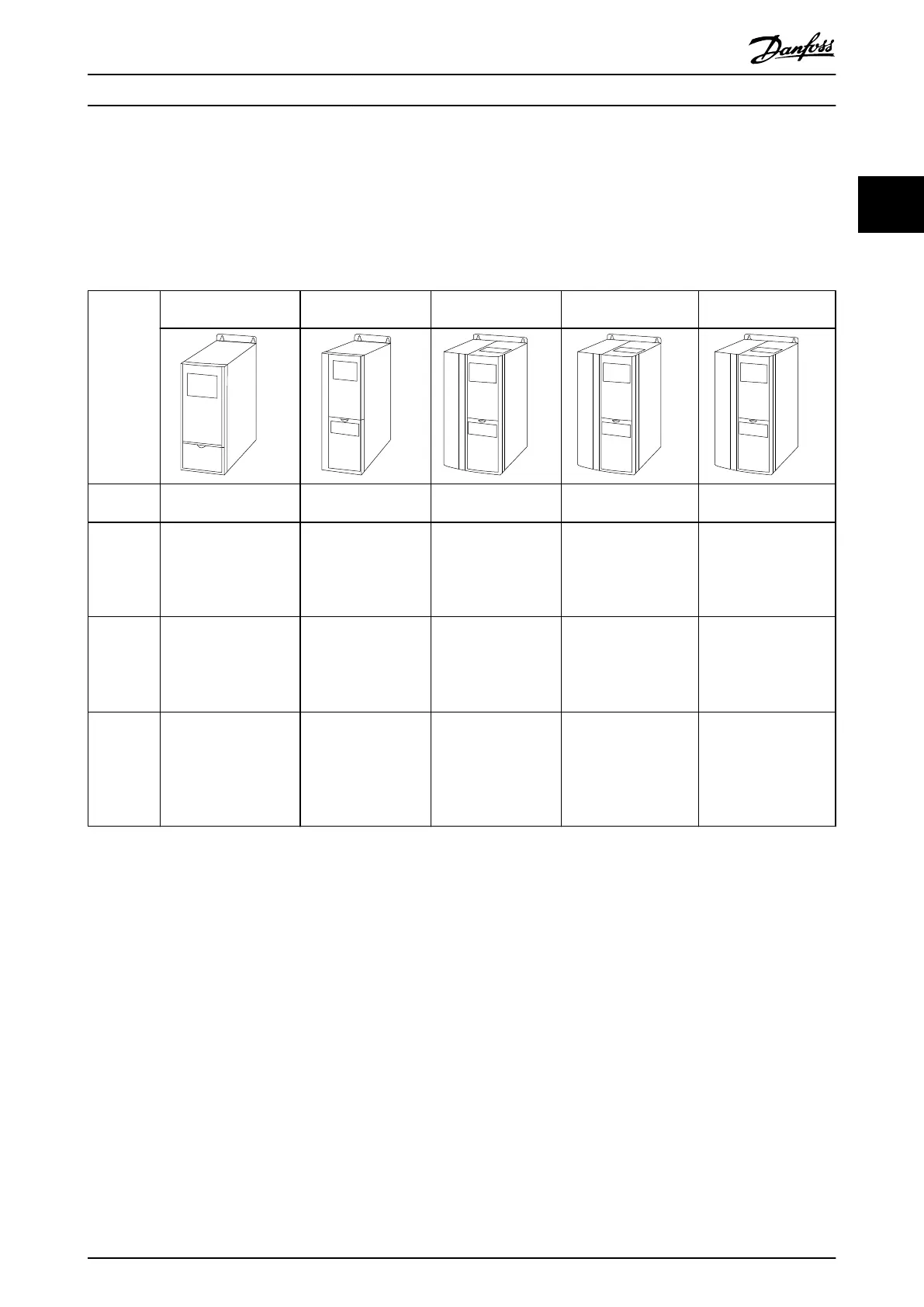

2.1 Enclosure Size Overview
Enclosure size depends on power range.
Enclosure
size
K1 K2 K3 K4 K5
130BA870.10
130BA809.10
130BA810.10
130BA810.10
130BA810.10
Enclosure
protection
IP20 IP20 IP20 IP20 IP20
Power
range
[kW (hp)]
3-phase
380–480 V
0.37–2.2 (0.5–3.0) 3.0–5.5 (5.0–7.5) 7.5 (10) 11–15 (15–20) 18.5–22 (25–30)
Power
range
[kW (hp)]
3-phase
200–240 V
1)
0.37–1.5 (0.5–2.0) 2.2 (3.0) 3.7 (5.0) – –
Power
range
[kW (hp)]
single-
phase
200–240 V
1)
0.37–1.5 (0.5–2.0) 2.2 (3.0) – – –
Table 2.1 Enclosure Sizes
1) Single-phase and 3-phase 200–240 V products are launched on the market later.
Product Overview Design Guide
MG07B102 Danfoss A/S © 03/2016 All rights reserved. 11
2 2
