Danfoss VLT Midi Drive FC 280 Design Guide

2.5.2 Process PID Control
The process PID control can be used to control application parameters that can be measured by a sensor (for example
pressure, temperature, ow) and aected by the connected motor through a pump, fan, or other connected devices.
Table 2.8 shows the control congurations in which the process control is possible. Refer to chapter 2.3 Control Structures to
see where the speed control is active.
Parameter 1-00 Conguration Mode Parameter 1-01 Motor Control Principle
U/f
VVC
+
[3] Process Process Process
Table 2.8 Control Conguration
NOTICE
The process control PID works under the default parameter setting, but tuning the parameters is recommended to
optimize the application control performance.
P 7-30
normal/inverse
PID
P 7-38
*(-1)
Feed forward
Ref.
Handling
Feedback
Handling
% [unit]
% [unit]
%
[unit]
%
[speed]
Scale to
speed
P 4-10
Motor speed
direction
To motor
control
Process PID
130BA178.10
_
+
0%
-100%
100%
0%
-100%
100%

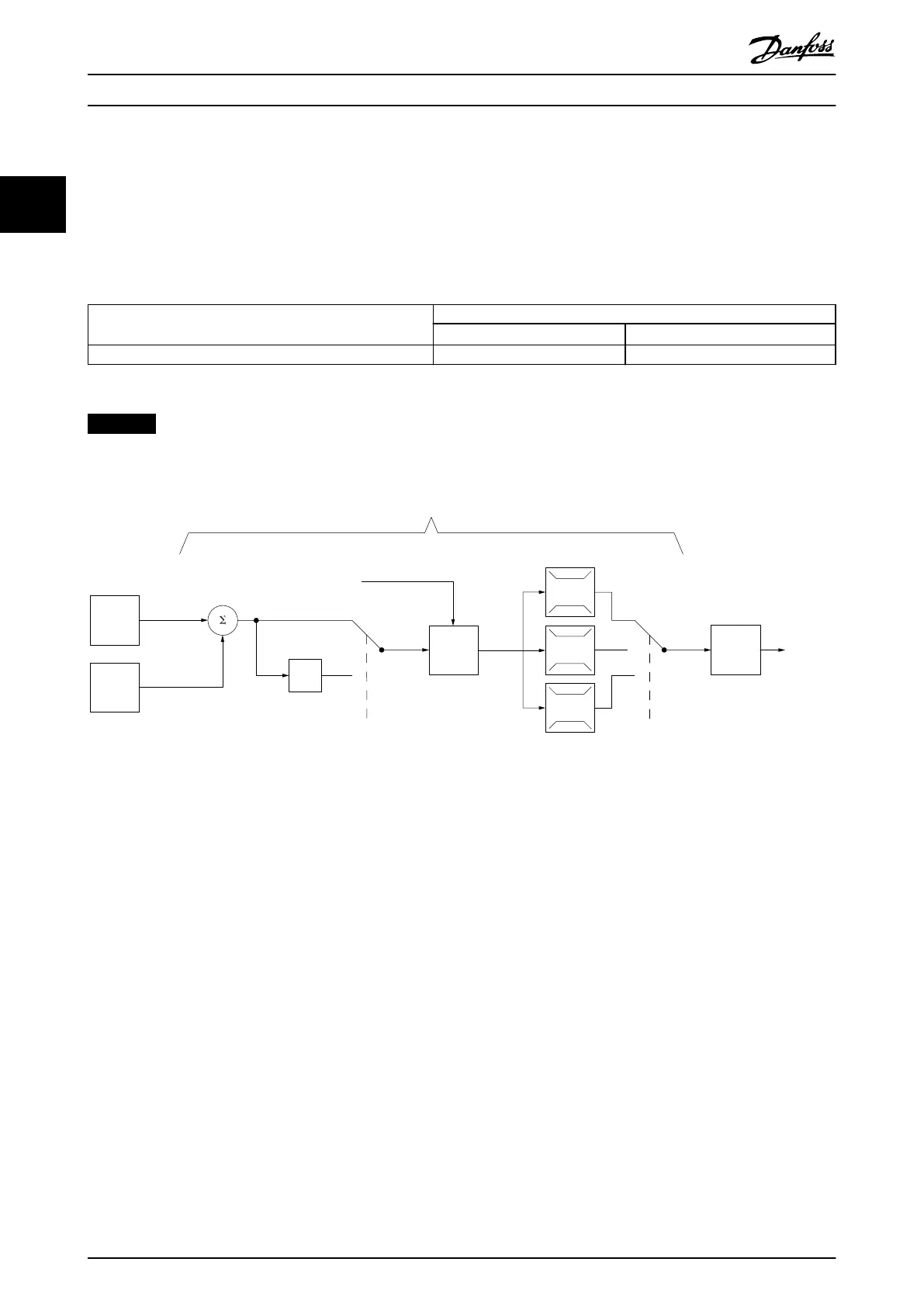

Illustration 2.22 Process PID Control Diagram
Product Overview
VLT
®
Midi Drive FC 280
30 Danfoss A/S © 03/2016 All rights reserved. MG07B102
22
