Danfoss VLT Midi Drive FC 280 Design Guide

130BD391.11
1
2
3
4
5
6
78
9
10
Reset
Auto
On
Hand
On
OK
Back
Menu
Status Quick
Menu
Main
Menu
PE
U
V
W
L1
L2
L3
PE
1 PLC 6 Minimum 200 mm (7.9 in) between control cables, motor, and
mains.
2 Frequency converter 7 Motor, 3-phase and PE
3 Output contactor (generally not recommended) 8 Mains, single-phase, 3-phase, and reinforced PE
4 Grounding rail (PE) 9 Control wiring
5 Cable shielding (stripped) 10
Equalizing minimum 16 mm
2
(6 AWG)

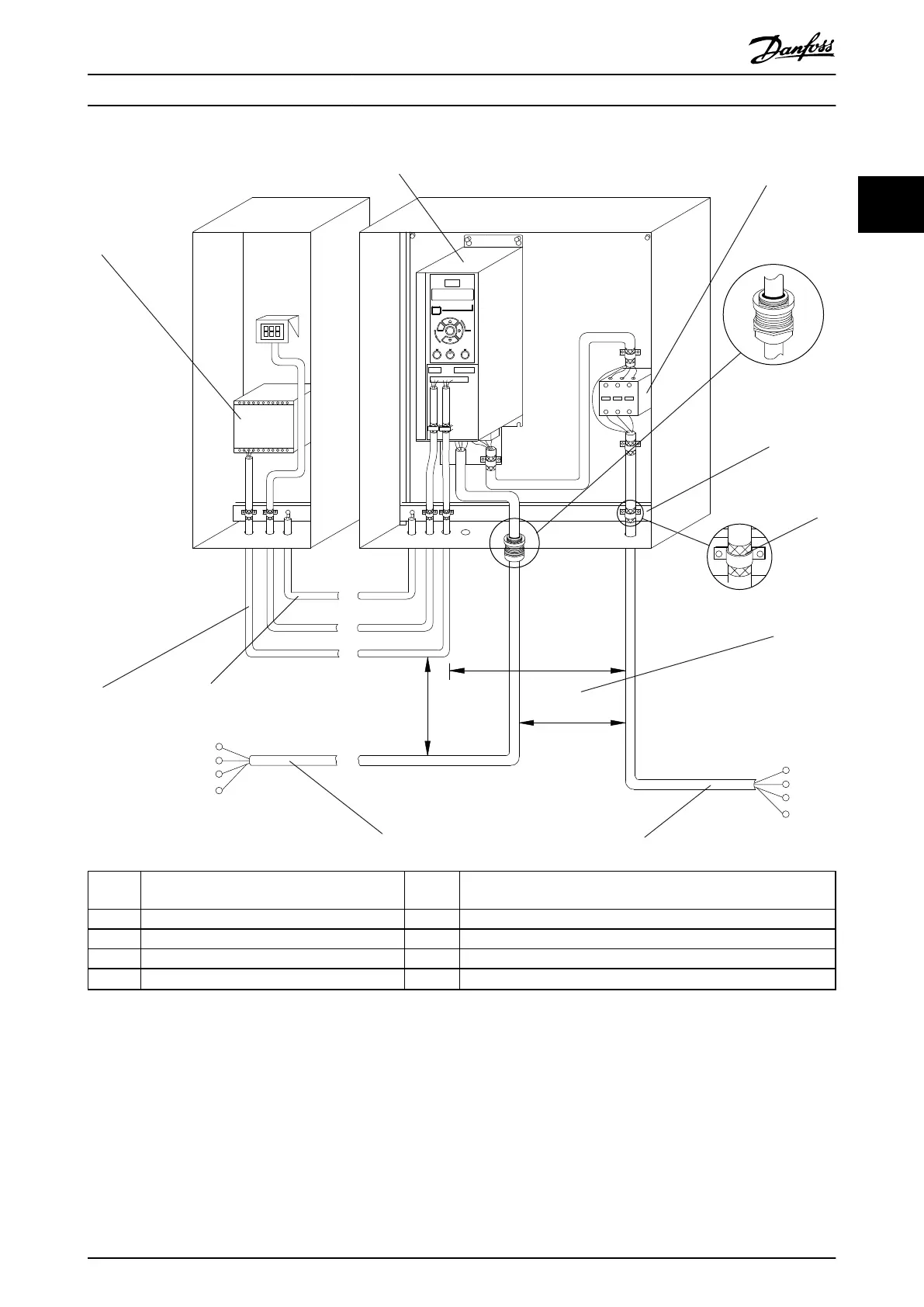

Illustration 2.2 Typical Electrical Connection
Product Overview Design Guide
MG07B102 Danfoss A/S © 03/2016 All rights reserved. 13
2 2
