DS2100N REFERENCE MANUAL
92
7

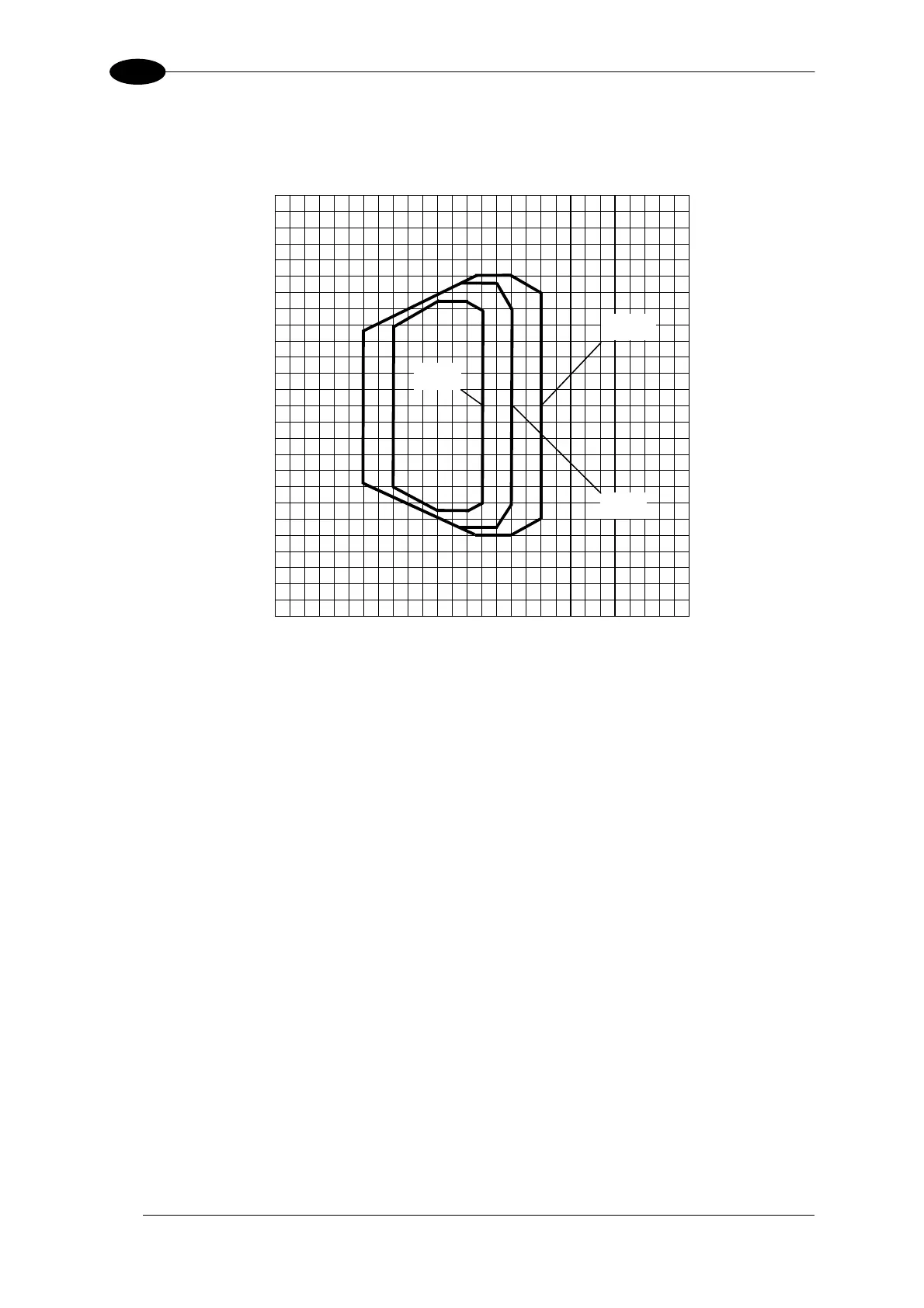

DS2100N-2200 (High resolution)
1
0
2
1
2
(in)
01 53
(in)
24
0
10
20
30
40
50 60
70 80
90
100
110
120
130
(mm)
60
50
40
30
20
10
0
10
20
30
40
50
60
(mm)
0.15 mm
(6 mils)
0.20 mm
(8 mils)
0.30 mm
12 mils
NOTE: (0,0) is the center of the laser beam output window.
CONDITIONS
Optic Version = Linear
Code = Interleaved 2/5 or Code 39
PCS = 0.90
"Pitch" angle =
0
"Skew" angle =
15
"Tilt" angle =
0
*Reading Conditions = Standard
*Scan Speed = 500 scans/sec
* Parameter selectable in Genius™
To Next Page
