DS2100N REFERENCE MANUAL
54
5

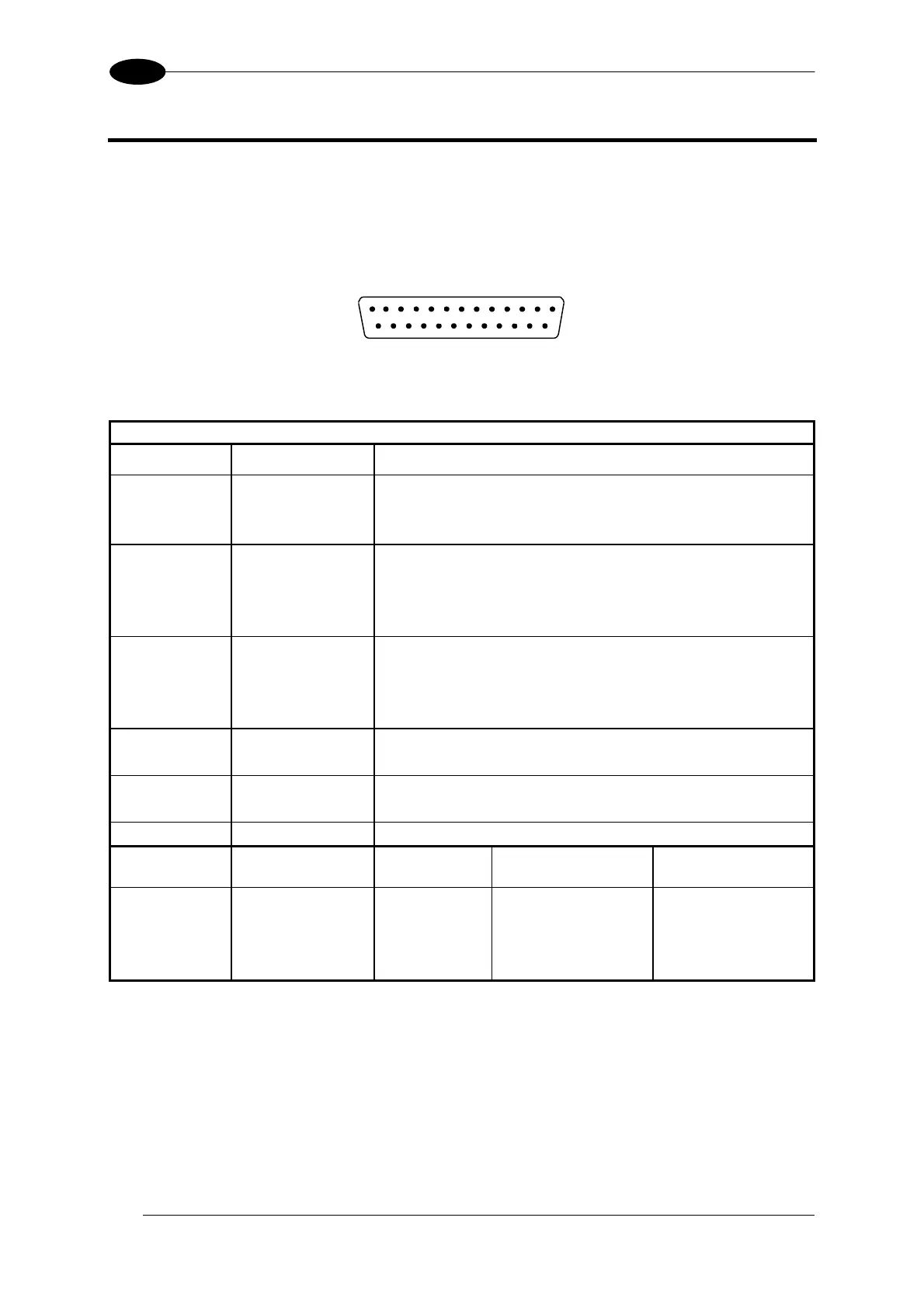

5 25-PIN CABLE ELECTRICAL CONNECTIONS
All DS2100N models are equipped with a cable terminated by a 25-pin male D-sub connector
for connection to the power supply and input/output signals. The details of the connector pins
are indicated in the following table.
13
2514
1
Figure 61 - 25-pin Male D-sub Connector
25-pin D-sub male connector pinout
Pin Name Function
13, 9 Vdc Power supply input voltage +
25, 7 GND Power supply input voltage -
1 CHASSIS Cable shield connected to chassis
18 I1A External Trigger A (polarity insensitive)
19 I1B External Trigger B (polarity insensitive)
6 I2A Input 2 A (polarity insensitive)
10 I2B Input 2 B (polarity insensitive)
8 O1+ Output 1 +
22 O1- Output 1 -
11 O2+ Output 2 +
12 O2- Output 2 -
20 RX Auxiliary Interface RX
21 TX Auxiliary Interface TX
23 ID+ ID-NET™ network +
24 ID- ID-NET™ network -
14, 15, 16, 17 NC Not Connected
Pin Name RS232
RS485
Full-Duplex
RS485
Half-Duplex
2 TX TX+ RTX+
3 RX *RX+
4 RTS TX- RTX-
5
MAIN INTERFACE
(SW SELECTABLE)
CTS *RX-
* Do not leave floating, see par. 5.2.2 for connection details.
