Datalogic DS2100N - Mounting GFC-200 Mirror

INSTALLATION
29
3
3.2.4 Mounting a GFC-200 Accessory Contact Reading Mirror
The GFC-200 is an 85° contact reading mirror that is mounted directly to the DS2100N
Scanner. The GFC-200 allows contact reading, eliminating the external optical path.

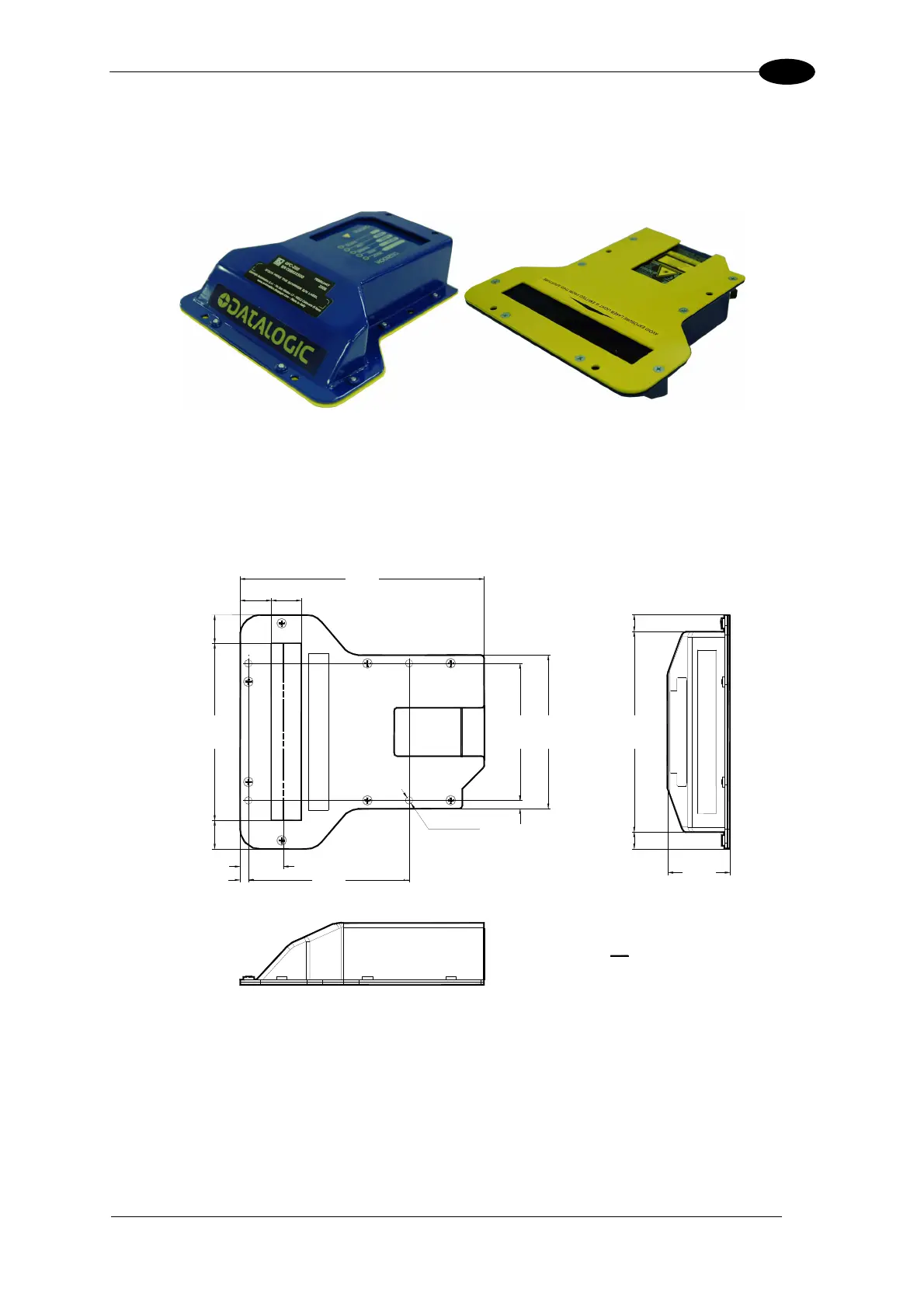

Figure 23 - GFC-200 General View
The overall dimensions are provided in the figure below and can be used for proper
installation.
37.2
[1.46]
82
[3.23]
96.6
[3.80]
5
[0.20]
5
[0.20]
92
[3.62]
106
[4.17]
18
[0.71]
18.8
[0.74]
146.5
[5.77]
120
[4.72]
Ø4.5
[Ø0.18] N°4
10
[0.39]
10
[0.39]
17
[0.67]
17
[0.67]
26
[1.02]
Scan Line
mm
in
Figure 24 - GFC-200 Overall Dimensions
