DS2100N REFERENCE MANUAL
4
1

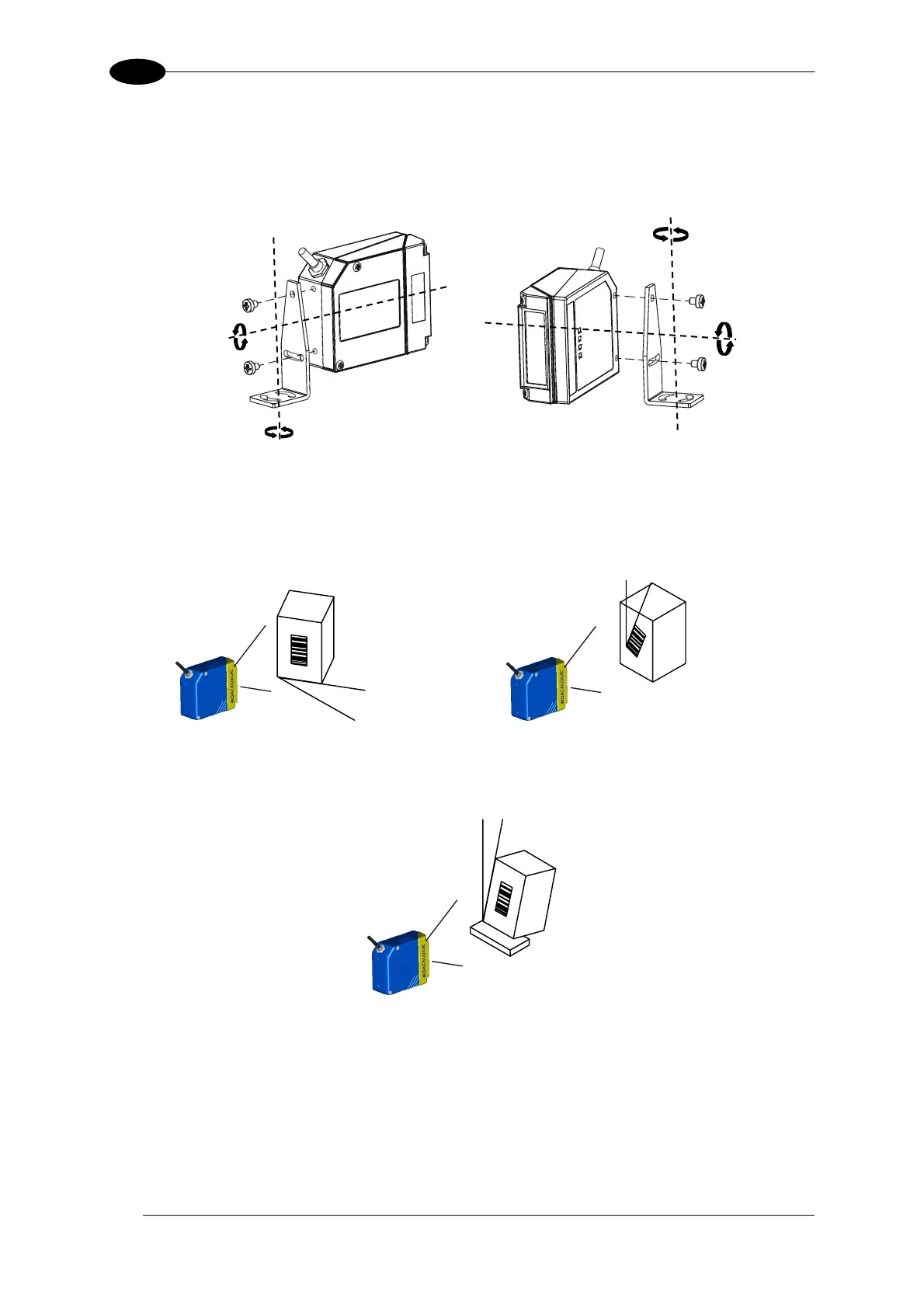

STEP 2 – MOUNTING AND POSITIONING THE SYSTEM
1. To mount the DS2100N, use the mounting bracket to obtain the most suitable position for
the reader as shown in the figures below.
Figure 3 - Positioning with Mounting Bracket
2. When mounting the DS2100N take into consideration these three ideal label position angles:
Skew 10° to 30°, Tilt 0° and Pitch 0°.
Assure at least 10° Minimize
Figure 4 –Skew and Tilt Angles
Minimize
Figure 5 – Pitch Angle
3. Refer to the Reading Diagrams in par. 7.4 to decide the distance your scanner should be
positioned at.
Skew
Tilt
Skew
Pitch
S
T
P
