INTRODUCTION
19
2

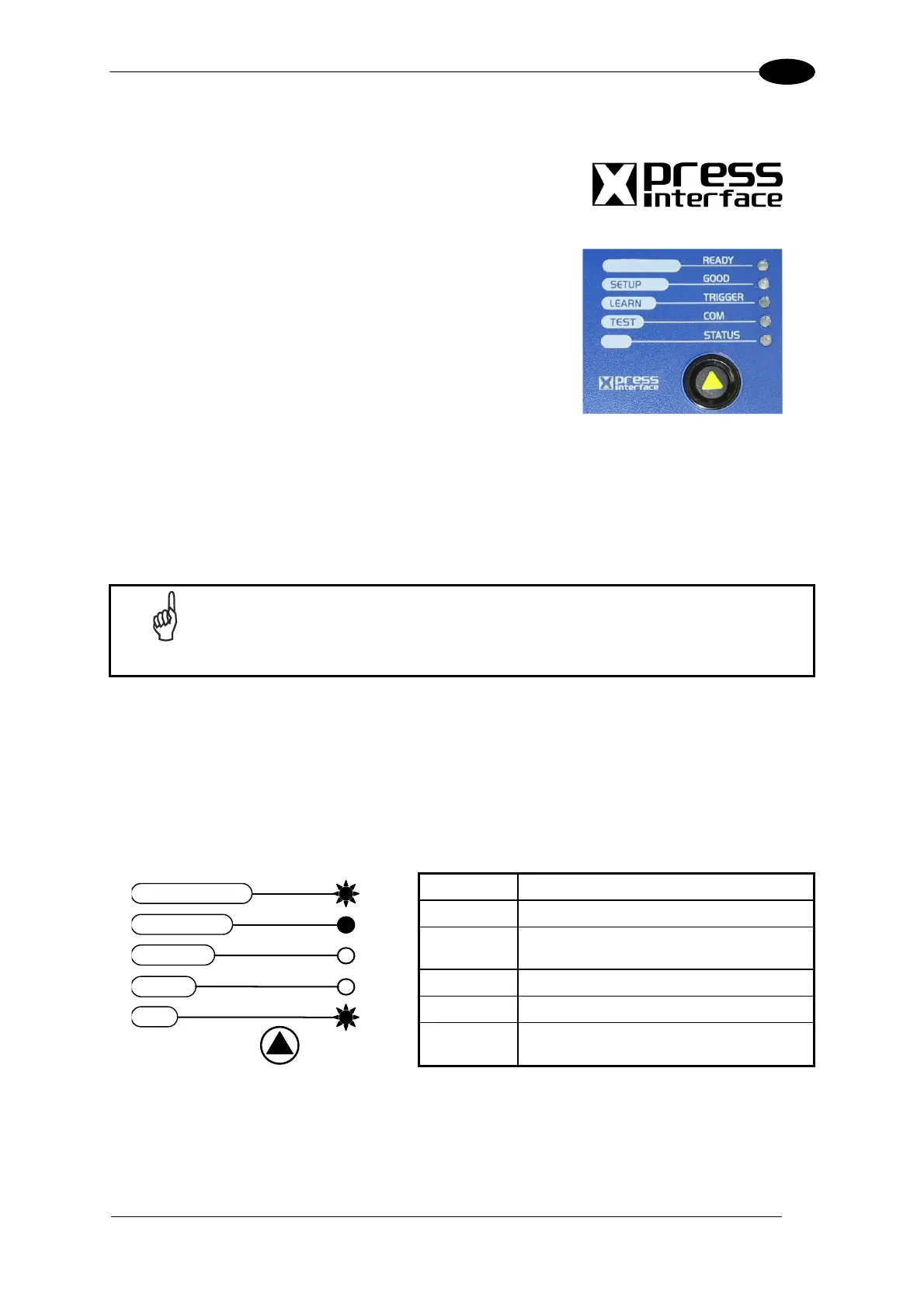

2.3 X-PRESS™ HUMAN MACHINE INTERFACE
X-PRESS™ is the intuitive Human Machine Interface
designed with the precise goal of improving ease of
installation and maintenance.
Status and diagnostic information are clearly presented
by means of five-colored LEDs, whereas the single
multi-function key gives immediate access to relevant
functions:
Autosetup to self-optimize reading performance
in demanding applications
Autolearn to self-detect unknown barcodes
Test Mode with bar-graph visualization to check
static reading performance
X-PRESS™ is the common interface adopted in all new products: “You learn one, you can
use them all”.
The colors and meaning of the five LEDs when in the one of the operating modes (On-Line,
Automatic or Continuous) are illustrated in par 2.1.1.
NOTE
The X-PRESS™ functions do not work if the motor or laser are turned off,
see chp. 9 for details.
2.3.1 Diagnostic Indication
The “STATUS” and “READY” LEDs blink simultaneously to signal the presence of a failure.
Diagnostic message transmission on interfaces can be enabled to provide details about
specific failure conditions.
At the same time one or more LEDs light up according to the following scheme:
LED STATUS
READY BLINK
GOOD
ON to indicate any Failure different than
Motor or Laser failures.
TRIGGER ON to indicate a Motor Failure.
COM ON to indicate a Laser Failure.
SETUP
LEARN
TEST
READY
GOOD
TRIGGER
COM
STATUS
STATUS BLINK
