3.3 POSITIONING
The DS2100N scanner is able to decode moving barcode labels at a variety of angles,
however significant angular distortion may degrade reading performance.
When mounting the DS2100N take into consideration these three ideal label position angles:
Skew 10° to 30°, Tilt 0° and Pitch 0°.
Follow the suggestions for the best orientation:

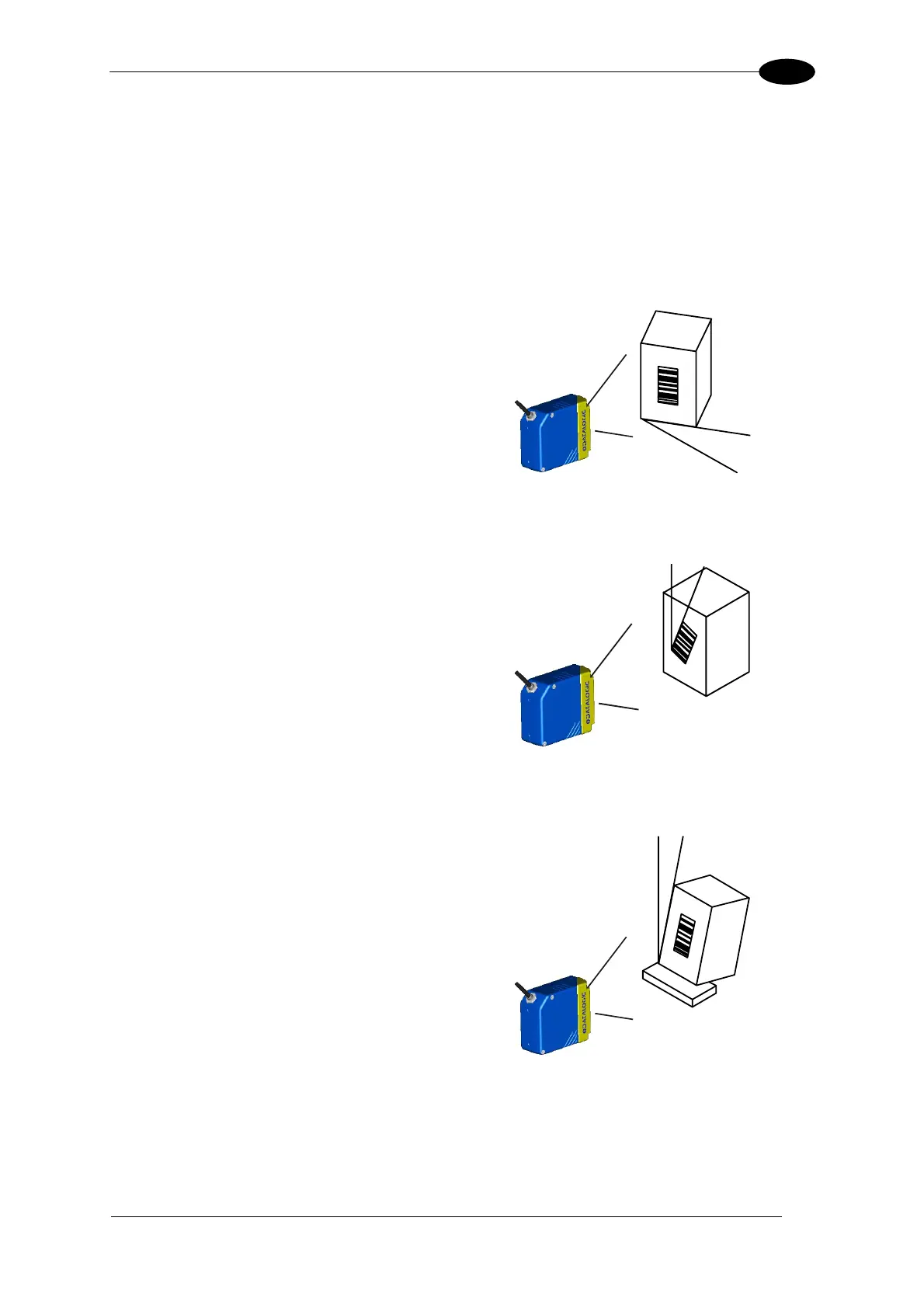

Figure 35 - Skew Angle
Figure 36 - Tilt Angle
The Skew angle is represented by the value
S in Figure 35. Position the reader to assure
at least 10° for the Skew angle. This avoids
the direct reflection of the laser light emitted
by the DS2100N.
For the raster version, this angle refers to the
most inclined or external raster line, so that
all other raster lines assure more than 10°
Skew.
The Tilt angle is represented by the value T
in Figure 36. Position the reader in order to
minimize th
e
Tilt angle.
By using the Reconstruction Reading Mode
software parameter, the tilt angle is less
critical and can be decoded even if the scan
line doesn’t cross the entire code.
See par. 7.1 or the Help On Line for details.
The Pitch angle is repr
esented by the valu
e
P in Figure 37. Position the reader in orde
to minimize the Pitch angle.
Figure 37 - Pitch Angle
S
T
P
