DS2100N REFERENCE MANUAL
26
3
3.2.1 Mounting DS2100N
Using the DS2100N mounting bracket you can obtain the most suitable position for the
reader as shown in the figure below:

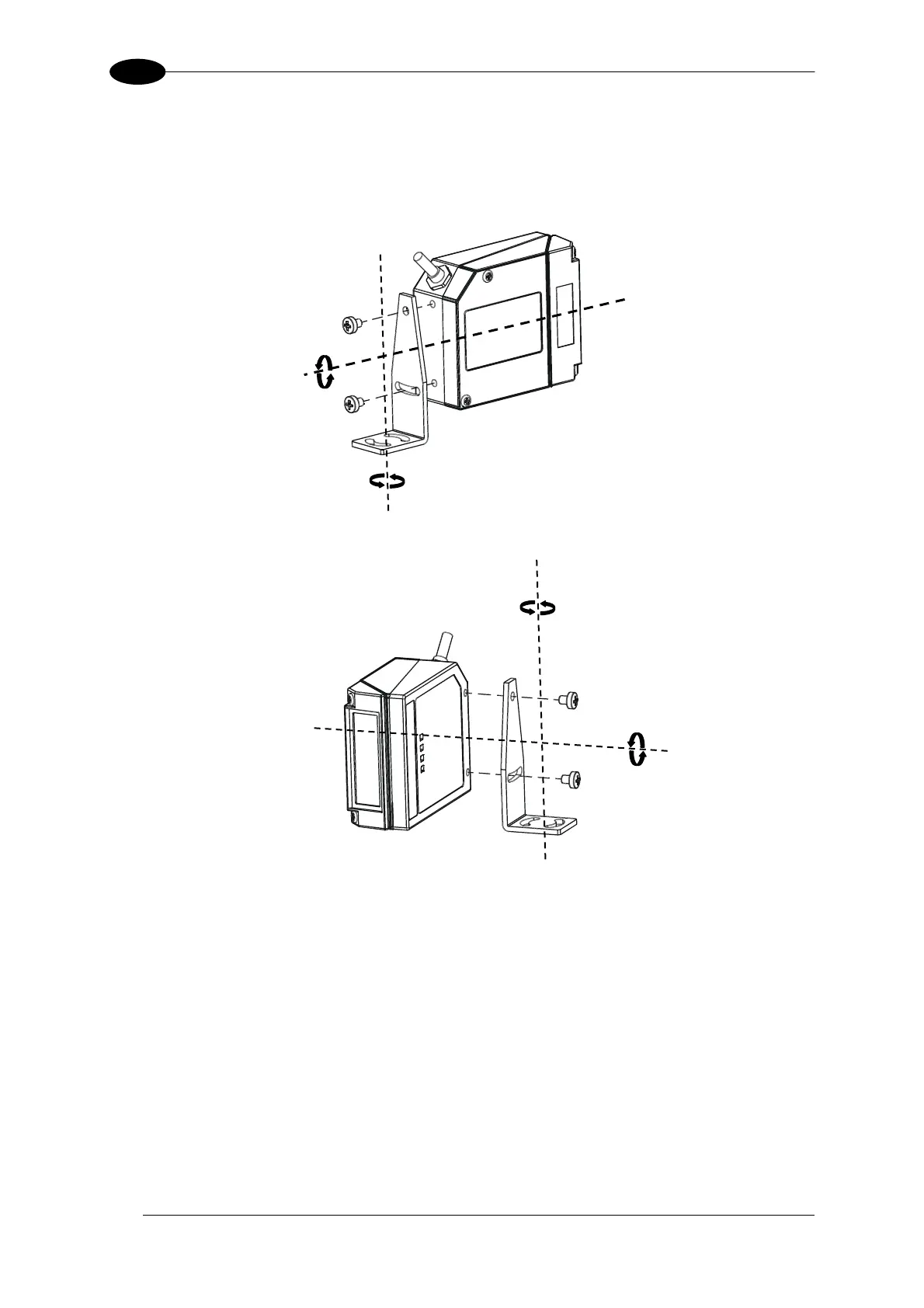

Figure 14 – Positioning with Mounting Bracket
Skew
Tilt
Skew
Pitch
