RAPID CONFIGURATION
1
1
1 RAPID CONFIGURATION
NOTE
This chapter illustrates a Stand Alone application. For other types of
installations, such as ID-NET™, Fieldbus, Pass-Through, Multiplexer
Layout, etc., refer to chapters 4, 5 and 6. For complete scanner
configuration using the Genius™ configuration progra
m, refer to the
Context-Sensitive Help On-Line.
STEP 1 – CONNECT THE SYSTEM
To connect the system in a Stand Alone configuration, you need the hardware indicated in
Figure 1.
In this layout the data is
transmitted to the Host on the main serial interface.
In Local Echo communication mode, data is transmitted on the RS232 auxiliary interface
independently from the main interface selection.
When On-Line Operating mode is used, the scanner is activated by an External Trigger
(photoelectric sensor) when the object enters its reading zone.

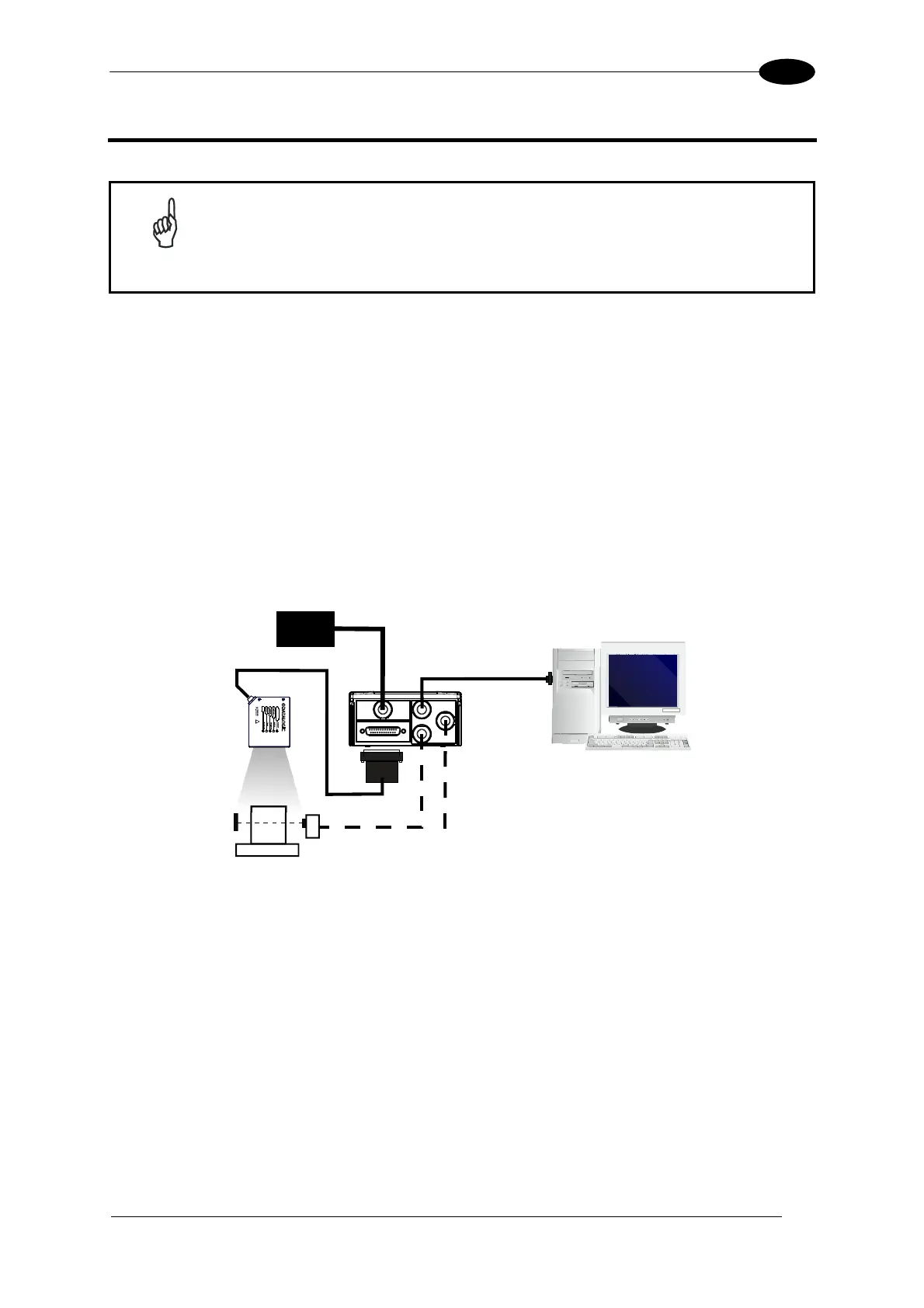

Figure 1 – DS2100N in Stand Alone Layout
DS2100N
Host
PG 6000
P.S.*
* Presence Sensor
(for On-Line mode)
MAIN
I/O, AUX
CBX100/500
To Next Page
