14

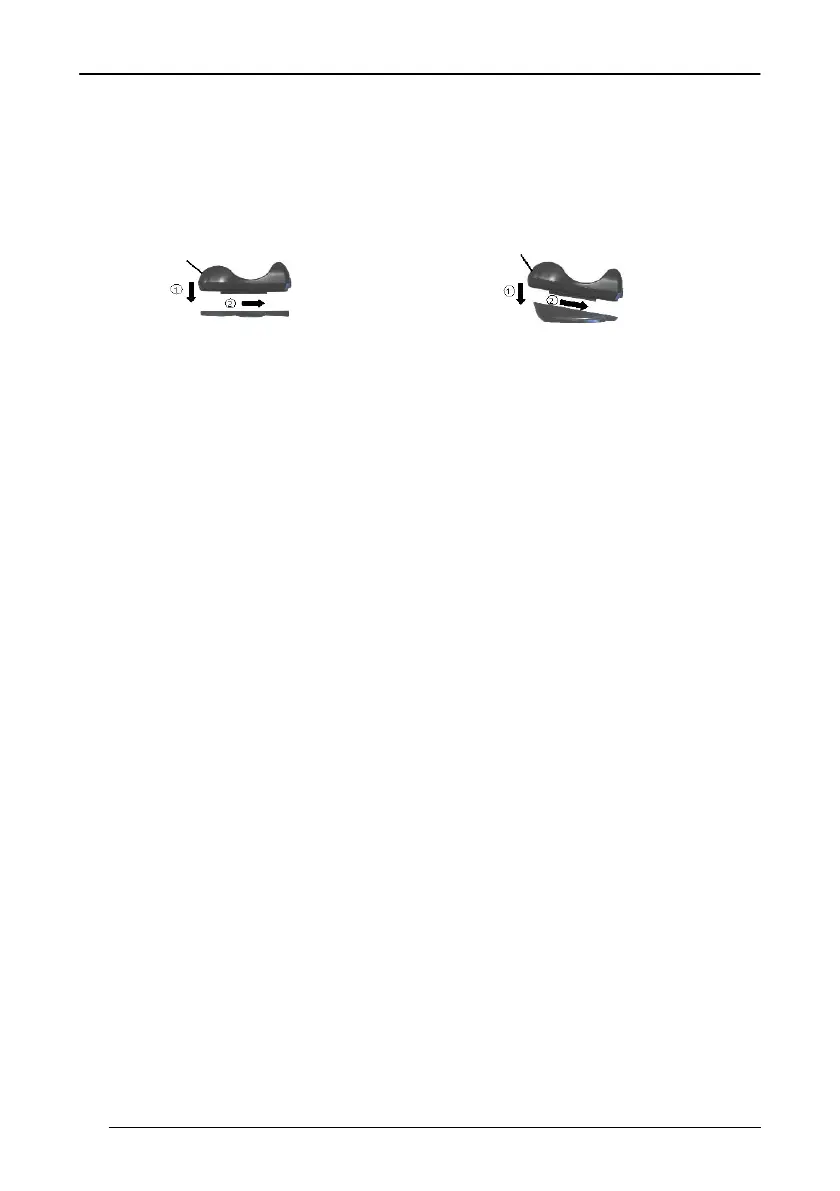

Portable Desktop Use
1. Correctly position the BC-80X0/C-8000 onto the base by sliding it along the
mounting tabs until aligned.
2. Carefully clean the rubber foot seats of the base to remove any impurities that
could reduce adhesion.
3. Remove the protective plastic from the rubber feet and stick them onto the
bottom surface of the base.
4. If mounting the BC-80X0 cradle, insert the antenna in the appropriate hole on
the body of the cradle and screw it clockwise until tight.
Fixed Desktop Use
For fixed desktop installation, use the adhesive strips or fixing screws (not provided)
according to your needs.
For mounting with adhesive strips:
1. Position the cradle onto the base by sliding it along the mounting tabs until
aligned.
2. Carefully clean the adhesive strip seats of the base to remove any impurities that
could reduce adhesion.
3. Remove the protective plastic from one side of the adhesive strips and stick
them onto the base surface.

Datalogic PowerScan M8300 Specifications

General

Scanner type	1D
Maximum range	30 m
Read rate (max)	40 reads/s
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Code 16K, Code 49, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Tilt reading angle	-20 - 20 °
Pitch reading angle	-55 - 55 °
Operating time	240 min
Dimensions (WxDxH)	114 x 69 x 210 mm
Bluetooth	No
Operating frequency	910 MHz
Input voltage	10 - 30 V
Battery capacity	2150 mAh
Power requirements	0.33 - 1A
Number of reads per charge	60000
Certification	IP64, China RoHS, EU RoHS, CDRH Class II, IEC 60825-1 Class 2
Keys quantity	3 keys
Product color	Black, Yellow
LED indicators	Charging, Power
Display resolution	32 x 96 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	393 g
