INSTALLATION
15

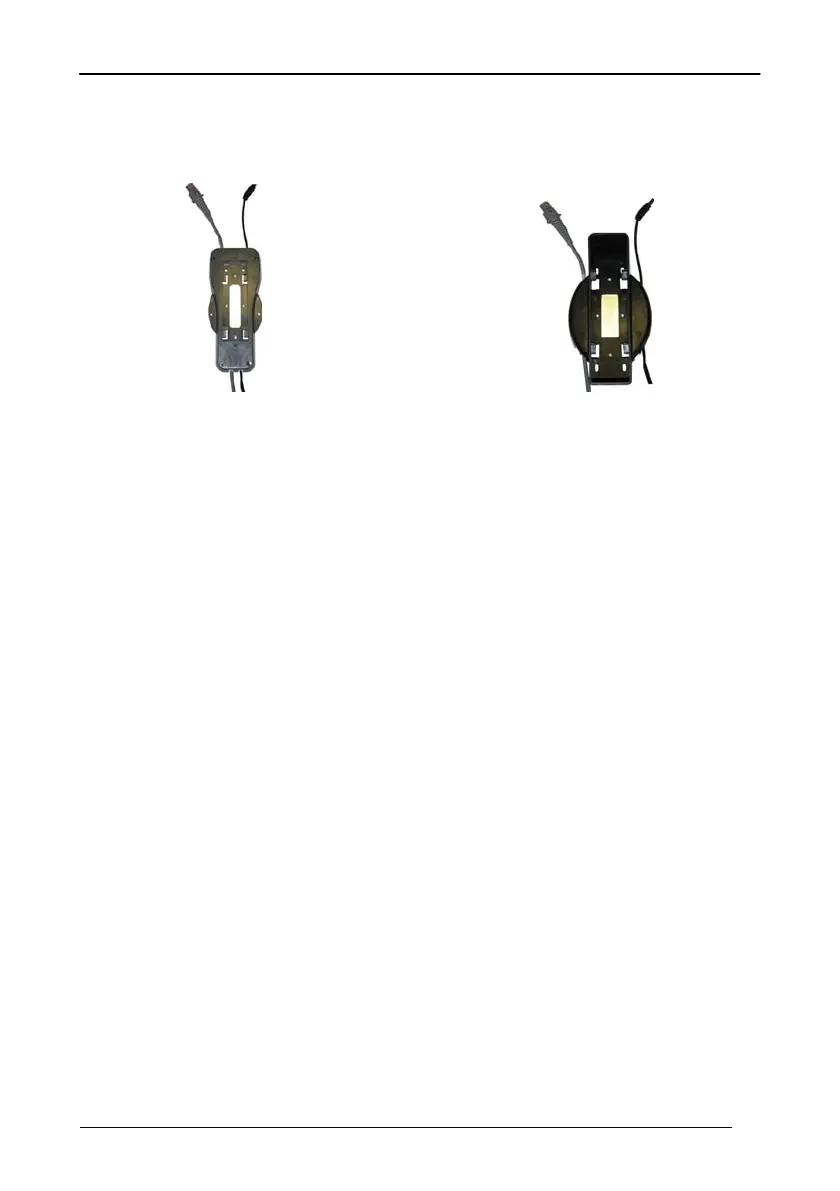

4. Position the cables to be connected to the BC-80X0/C-8000 cradle along the
dedicated channels, as shown in the figures below:
Horizontal Base Inclined Base
5. Remove the plastic from the other side of the strips and affix the base to the
table.
6. If mounting the BC-80X0 cradle, insert the antenna in the appropriate hole on
the body of the cradle and screw it clockwise until tight.
For mounting with screws:
1. Position the cables to be connected to the BC-80X0/C-8000 cradle along the
dedicated channels, as shown in the figures below:
2. Position the base on the table and affix it by means of the screws (not provided).
3. Position the cradle on the base by sliding it along the mounting tabs until
aligned.
4. If mounting the BC-80X0 cradle, insert the antenna in the appropriate hole on
the body of the cradle and screw it clockwise until tight.

Table of Contents

Other manuals for Datalogic PowerScan M8300

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Datalogic PowerScan M8300 and is the answer not in the manual?

Datalogic PowerScan M8300 Specifications

General IconGeneral
Scanner type1D
Maximum range30 m
Read rate (max)40 reads/s
Yaw reading angle-60 - 60 °
Decoding standardsGS1 DataBar, Code 16K, Code 49, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Tilt reading angle-20 - 20 °
Pitch reading angle-55 - 55 °
Operating time240 min
Dimensions (WxDxH)114 x 69 x 210 mm
BluetoothNo
Operating frequency910 MHz
Input voltage10 - 30 V
Battery capacity2150 mAh
Power requirements0.33 - 1A
Number of reads per charge60000
CertificationIP64, China RoHS, EU RoHS, CDRH Class II, IEC 60825-1 Class 2
Keys quantity3 keys
Product colorBlack, Yellow
LED indicatorsCharging, Power
Display resolution32 x 96 pixels
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 90 %
Weight and Dimensions IconWeight and Dimensions
Weight393 g
