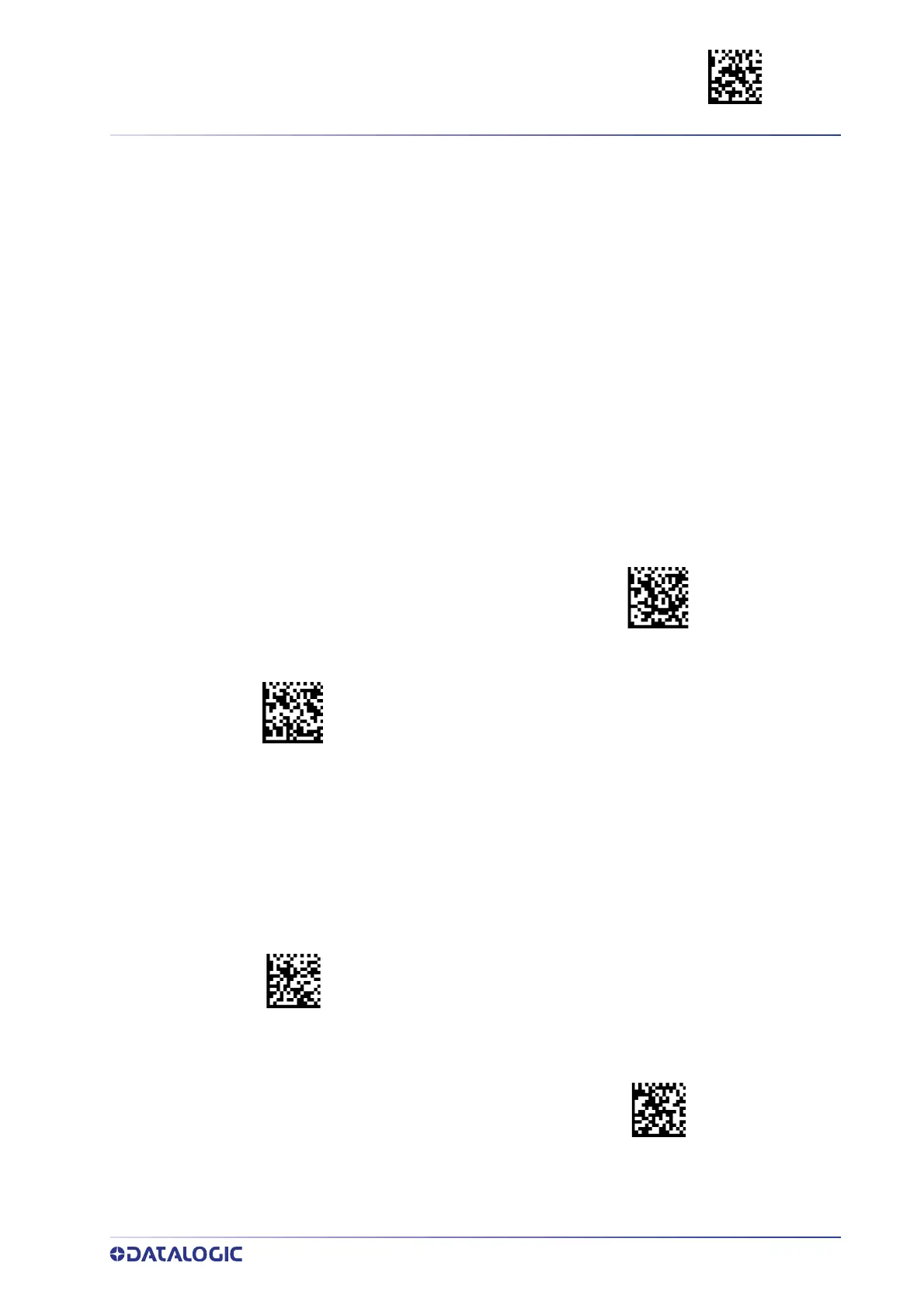

MULTIPLE LABEL READING
In standard (default) mode, when the reader’s aiming system is activated (by a trigger
pull, motion or other method depending on the mode), it then acquires and processes
each image in the area in front of it (the Volume). In this case, the reader stops process-
ing the image once it decodes a label. If several labels are present in the volume, only
the first label encountered is decoded and sent.
When Multiple Reading Mode is enabled, the reader keeps on processing the image
until all the labels present are decoded. The reader then sorts the data from all the bar
codes (if configured to do so) before transmitting it.
Multiple Labels per Frame
Specifies the ability of the reader to decode and transmit a set of code labels in a spe-
cific volume and in a single frame of time. When in Multiple Labels per Frame the
reader beeps and turns on the good read LED indication for each code read in a frame.
When Multiple Labels Mode is enabled, ISBT pairing, ABC Codabar pairing, and compos-
ites are not allowed.
Multiple Labels Ordering by Code Symbology
This feature allows you to specify the order multiple labels are transmitted by symbol-
ogy type, when Multiple Labels per Frame is enabled.
$CSNML00
Multiple Labels per Frame = Disable
Multiple Labels per Frame = Enable
$CSNML01
Select Symbologies for Multiple Labels Ordering
$CSNMS
To configure, scan the ENTER/EXIT PROGRAMMING
MODE bar code above, then the bar code at left fol-
lowed by the digits from the Alphanumeric charac-
ters in Appendix D, Keypad representing your
desired character(s). End by scanning the ENTER/
EXIT bar code.
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL
000000000000 = Random order
To Next Page
