Datalogic QuickScan QD2590

TROUBLESHOOTING
PRODUCT REFERENCE GUIDE 257
Figure 10 and Table 25 provide standard pinout information for the reader’s cable.

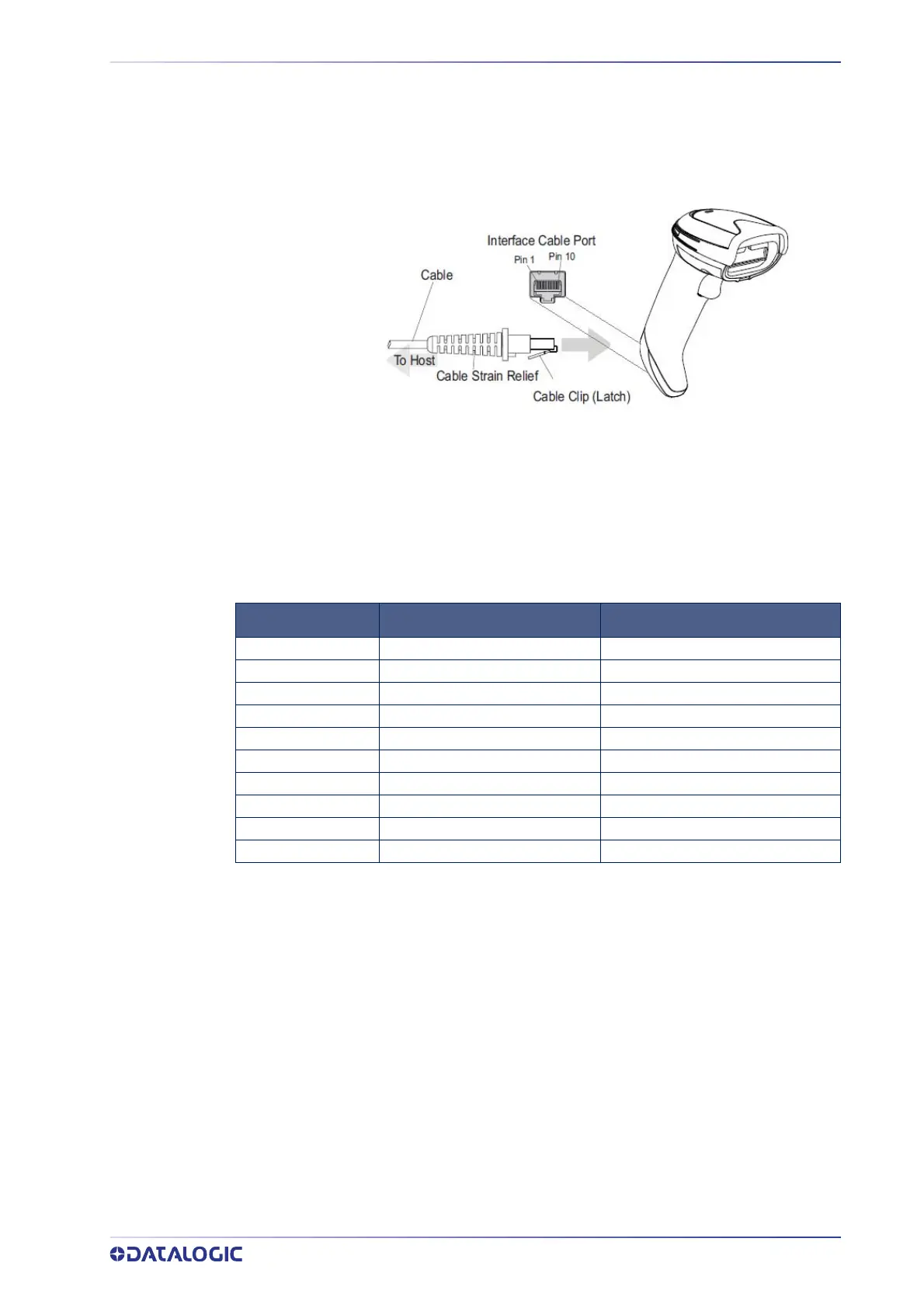

Figure 10 Standard Cable Pinouts
The signal descriptions in Table 25 apply to the connector on the reader and are for ref-
erence only.
Table 25 Standard Cable Pinouts — Reader Side
PIN RS232 USB
1 RTS (out)
2D+
3D-
4GND GND
5RX
6TX
7 VCC VCC
8
9
10 CTS (in)
