Getting Started
1-2 QuickScan
®
QS6500/QS6500BT
Manual Conventions
The symbols listed below are used in this manual to notify the reader of
key issues or procedures that must be observed when using the linear
imager:
Default Information
The highlighted and bold text configuration item values marked
throughout the programming sections are for the RS-232 Standard inter-
face. Default exceptions for other interfaces are listed in
Appendix D.
Nomenclature

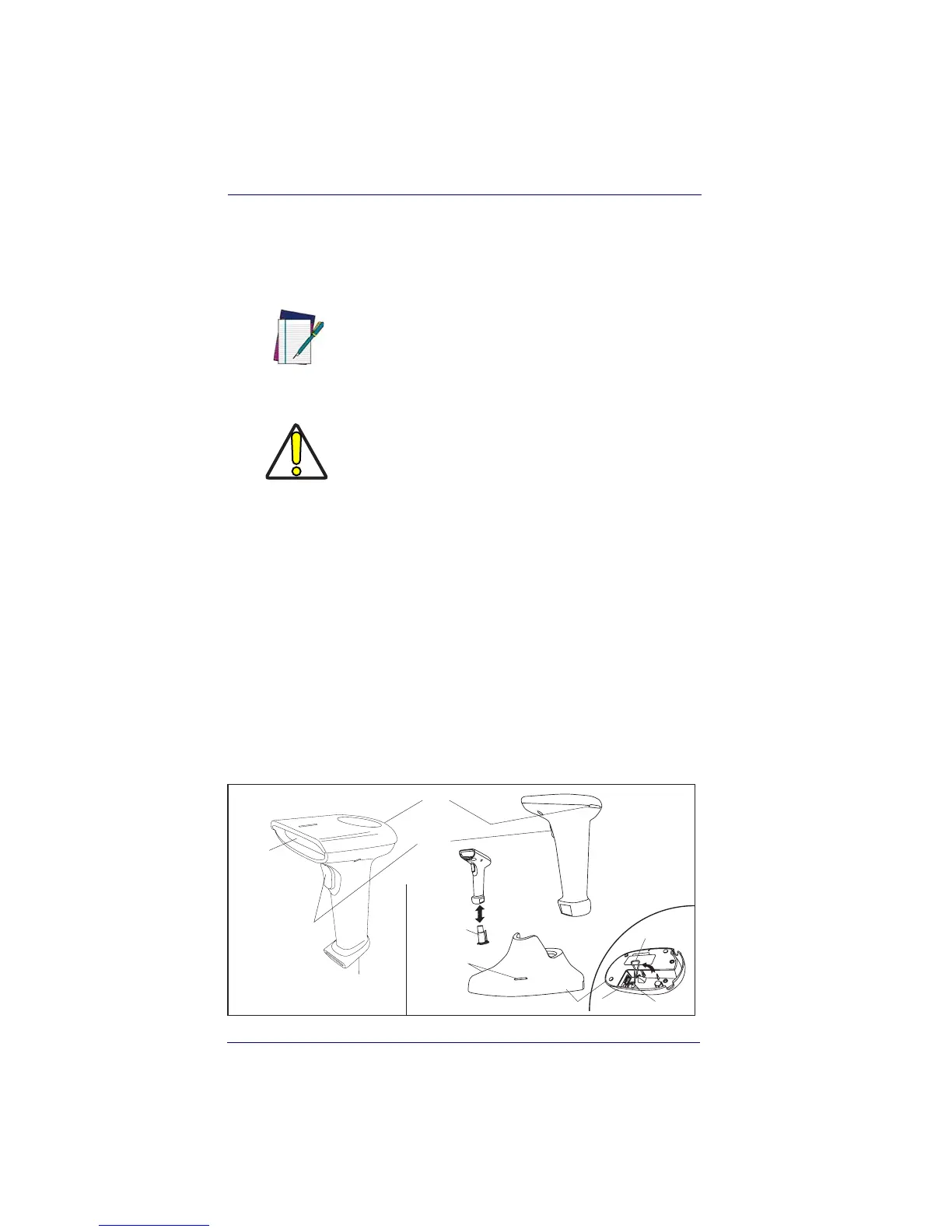

Figure 1-1a illustrates the features of the corded version of the linear
imager and
Figure 1-1b represents the BlueTooth version.
Figure 1-1
NOTE
Notes contain information necessary for prop-
erly diagnosing, repairing and operating the lin-
ear imager.
CAUTION
The CAUTION symbol advises you of actions
that could damage equipment or property.
Trigger
Interface
Cable Port
Indicator LEDs
Base Station
Cable
Retainer
I/F PortPower Port
Charging LEDs
Battery
Pack
Scan
Window
ab

Datalogic QuickScan QS6500 Specifications

General

Scan speed	450 sec/page
Tilt angle range	-60 - 60 °
Maximum scan area	610 mm
Decoding standards	- 1D - Code 16K - EAN/JAN - GS1 DataBar - PDF Models - GS1 DataBar Expanded Stacked - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional - MicroPDF417 - PDF417 - UPC A/E
Dimensions (WxDxH)	165 x 74 x 99 mm
Cable length	2.44 m
Standard interfaces	Keyboard wedge
Input voltage	4.5 - 14 V
Power consumption	300 mA
Certification	RoHS
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	181.4 g
