Datalogic QuickScan QS6500 User Manual

Interface Related Features
4-22 QuickScan
®
QS6500/QS6500 BT
RS-232 Interface Features — cont.

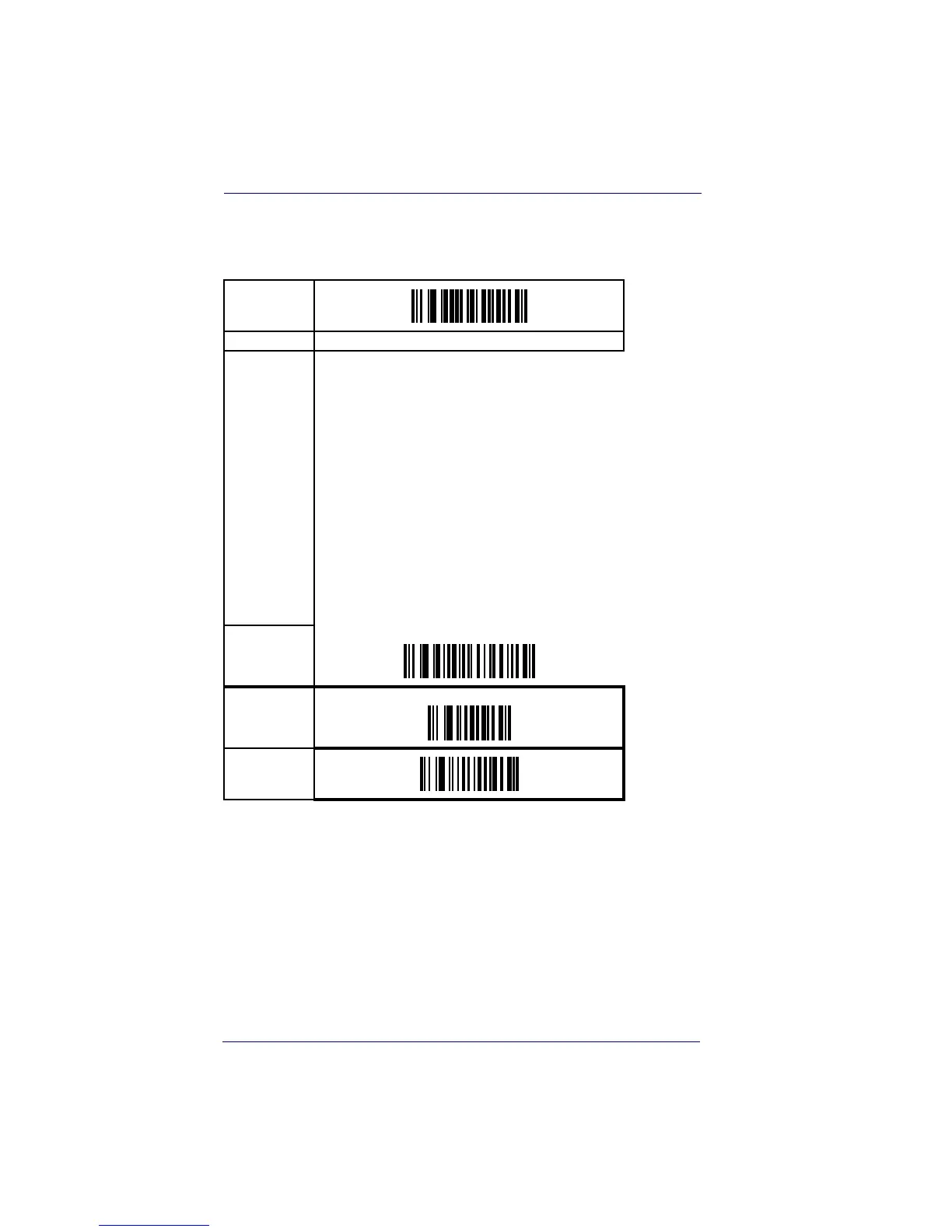

ACK NAK Retry Count
START
MODE BARCODE
This feature sets the number of times for the imager
to retry a label transmission under a retry condition.
0 = No retry
1 - 254 = Retry for the specified number of times
255 = Retry forever
To configure this feature, scan the “START” bar code
above to place the unit in Programming Mode, then
the “Set ACK NAK Retry Count,” followed by the dig-
its from the Alphanumeric table in
Appendix B,
Alpha-Numeric Pad
representing your desired retry
count. Accept your selection by scanning the “SET”
bar code below and finally, exit programming mode
by scanning the “END” barcode below
DEFAULT SETTING FOR THIS FEATURE: 03
Set ACK
Nak Retry
Count
SET
END

Datalogic QuickScan QS6500 Specifications

General

Scan speed	450 sec/page
Tilt angle range	-60 - 60 °
Maximum scan area	610 mm
Decoding standards	- 1D - Code 16K - EAN/JAN - GS1 DataBar - PDF Models - GS1 DataBar Expanded Stacked - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional - MicroPDF417 - PDF417 - UPC A/E
Dimensions (WxDxH)	165 x 74 x 99 mm
Cable length	2.44 m
Standard interfaces	Keyboard wedge
Input voltage	4.5 - 14 V
Power consumption	300 mA
Certification	RoHS
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	181.4 g
