Product Specifications
8-2 QuickScan
®
QS6500/QS6500 BT

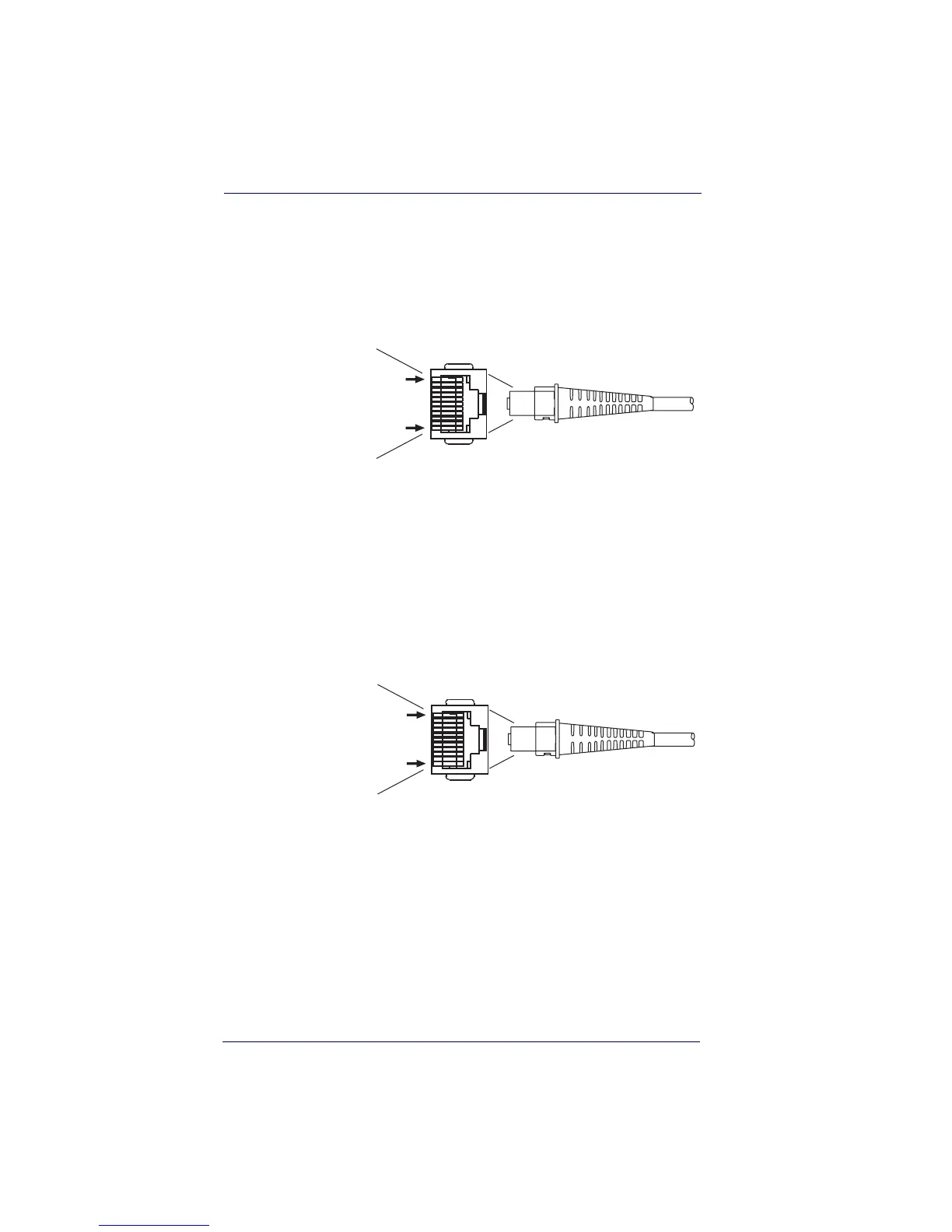

Standard Cable Pinouts (Primary
Interface Cables)
RS-232
Keyboard Wedge
1
2CTS
3
4RTS
5RXD
6TXD
7
8VCC_IN
9GND
10
Pin 10
Pin 1
10 Pin Modular Plug
(Connects to the imager module)
1
2KBDATA
3PCCLK
4KBCLK
5NC
6PCDATA
7NC
8VCC_IN
9GND
10
Pin 10
Pin 1
10 Pin Modular Plug
(Connects to the imager module)
