Datalogic QuickScan QS6500 User Manual

Interface Related Features
4-16 QuickScan
®
QS6500/QS6500 BT
Beep on ASCII BEL
Enables/disables ability of imager to beep (sound a good read tone) on
receiving an ASCII BEL (07 hex).
Beep on Not on File
Select for the host to beep (or not) when a not-on-file (host command)
condition is detected by the host.
ACK NAK Options
This enables/disables the ability of the imager to support the RS-232
ACK/NAK protocol. When configured, the imager and/or host sends an
“ACK” when it receives data properly, and sends “NAK” when the data is
in error. Selections for this option are:
•Disable
Host Echo
Quiet Interval
= 100msec
Signal
Voltage:
Normal RS-232
Signal Voltage:
TTL
No TTL
Inversion
Invert TTL
END

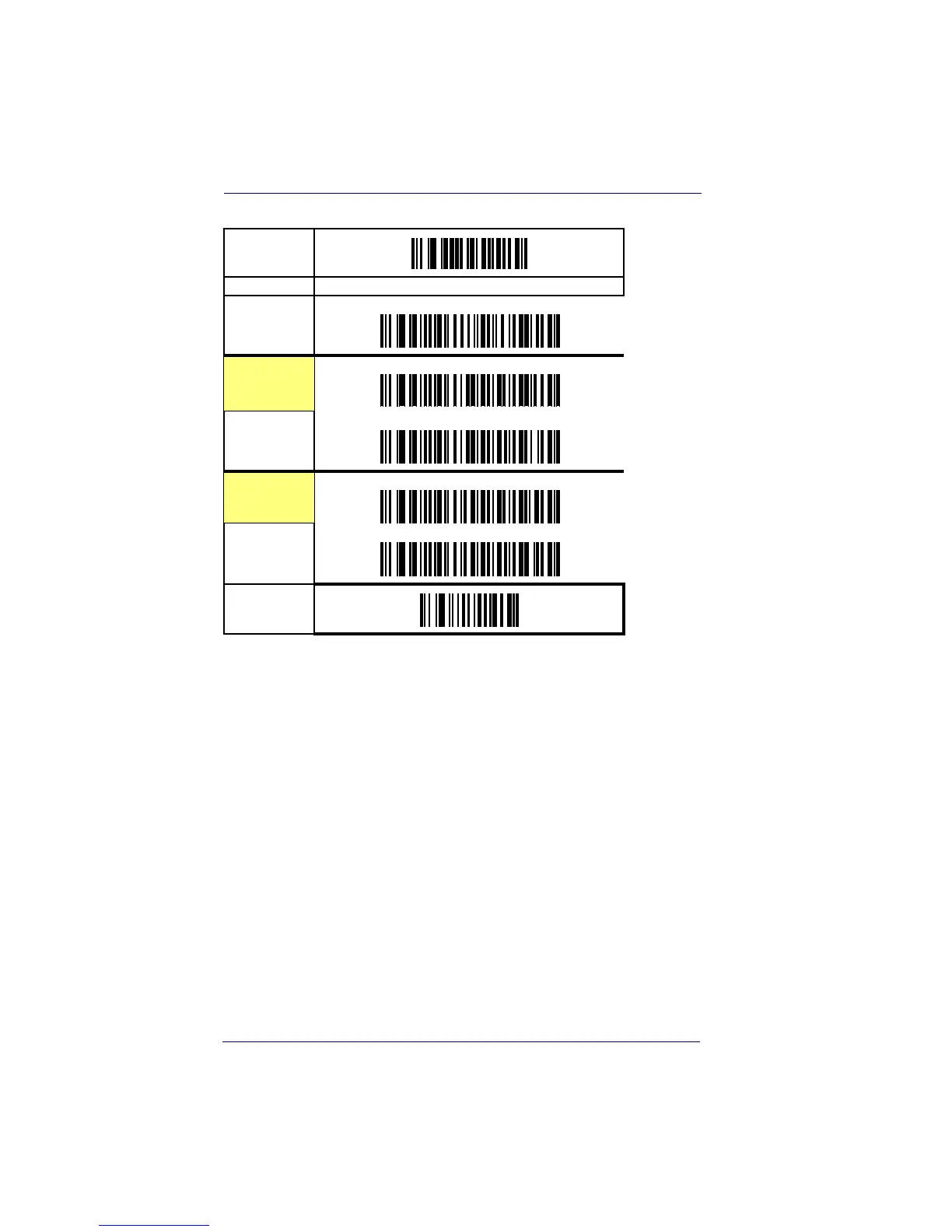

RS-232 Interface Features — cont.
START
STATE BARCODE

Datalogic QuickScan QS6500 Specifications

General

Scan speed	450 sec/page
Tilt angle range	-60 - 60 °
Maximum scan area	610 mm
Decoding standards	- 1D - Code 16K - EAN/JAN - GS1 DataBar - PDF Models - GS1 DataBar Expanded Stacked - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional - MicroPDF417 - PDF417 - UPC A/E
Dimensions (WxDxH)	165 x 74 x 99 mm
Cable length	2.44 m
Standard interfaces	Keyboard wedge
Input voltage	4.5 - 14 V
Power consumption	300 mA
Certification	RoHS
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	181.4 g
