Datalogic QuickScan QS6500 User Manual

Interface Related Features
4-18 QuickScan
®
QS6500/QS6500 BT
RS-232 Interface Features — cont.

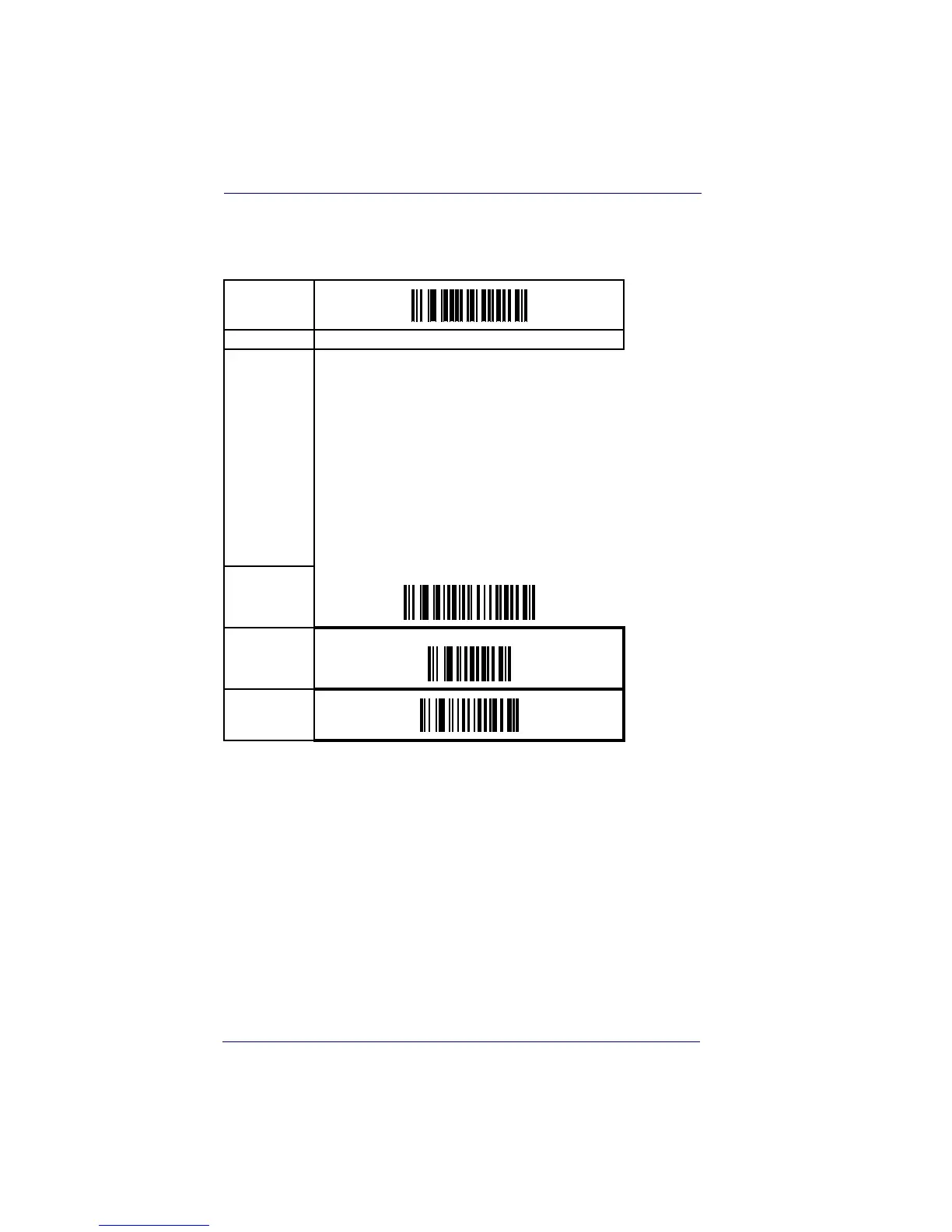

ACK Character
START
MODE BARCODE
Sets the ACK character from the set of ASCII charac-
ters or any hex value from 0 to FF. To configure this
feature, scan the “START” bar code above to place
the unit in Programming Mode, then the “Set ACK
Character,” followed by the digits from the Alphanu-
meric table in
Appendix B, Alpha-Numeric Pad
representing your desired character. Accept your
selection by scanning the “SET” bar code below and
finally, exit programming mode by scanning the
“END” barcode below.
DEFAULT SETTING FOR THIS FEATURE: 06 (0x06)
Set ACK
Character
SET
END

Datalogic QuickScan QS6500 Specifications

General

Scan speed	450 sec/page
Tilt angle range	-60 - 60 °
Maximum scan area	610 mm
Decoding standards	- 1D - Code 16K - EAN/JAN - GS1 DataBar - PDF Models - GS1 DataBar Expanded Stacked - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional - MicroPDF417 - PDF417 - UPC A/E
Dimensions (WxDxH)	165 x 74 x 99 mm
Cable length	2.44 m
Standard interfaces	Keyboard wedge
Input voltage	4.5 - 14 V
Power consumption	300 mA
Certification	RoHS
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	181.4 g
