ISDN Port
ISDN Port
ISDN Port
Diagram

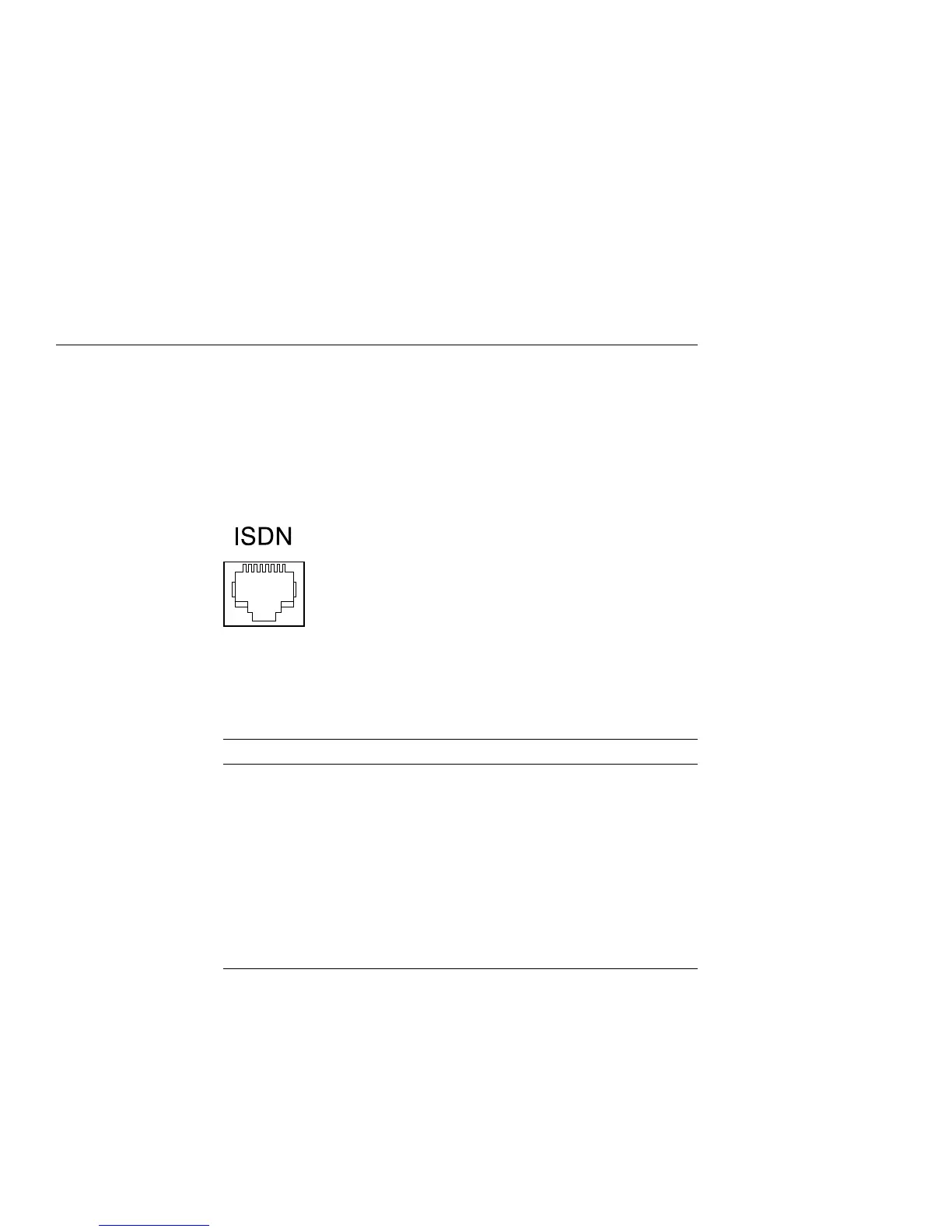

Figure B–6 shows the pin layout for the ISDN port.
Figure B–6 ISDN Port
8
1
MLO-008611
ISDN Port
Pin-outs
Table B–6 describes pin usage for the ISDN port.
Table B–6 ISDN Port Pin-outs
Pin Description
1 Not used
2 Not used
3 Transmit-
4 Receive+
5 Receive-
6 Transmit+
7 Not used
8 Not used
B–10 Port Pin-outs
