DSE Model 5110 Automatic Start Engine Management Instrumentation System
Part No. 057-009 5110 Operating Manual Issue 3.3 3/1/2006 11
5 PROTECTIONS
The module will indicate that an alarm has occurred in several ways;
The “Common alarm” LED will illuminate
(Warning = Red steady, Shutdown = Red Flashing)
If appropriate, the LCD display or LED indicators will display the appropriate alarm icon i.e. for battery
charging failure :
Hz
R
P M
51 .0
1530

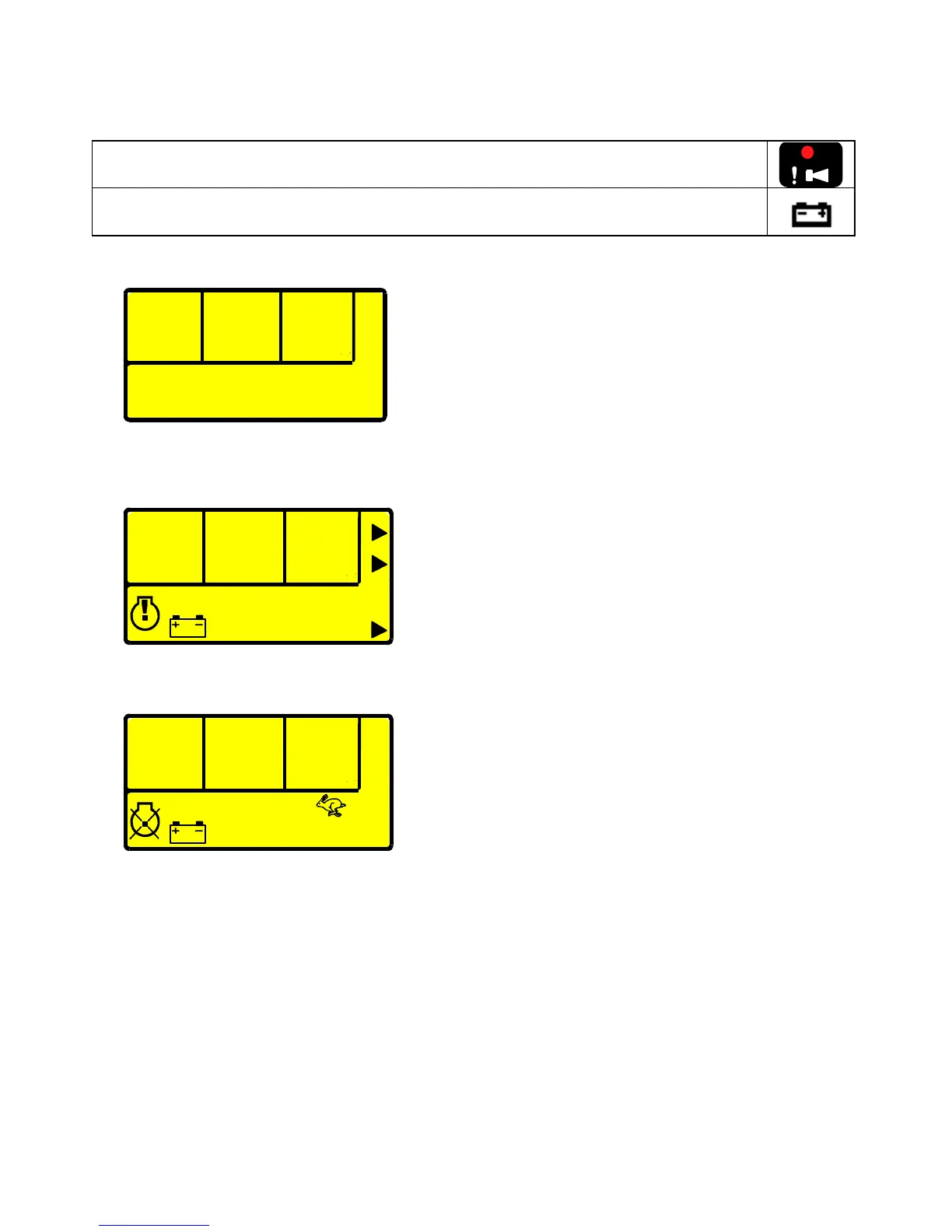

If no alarms are present the LCD
will extinguish any alarm icons.
In the event of a warning alarm the LCD will display the appropriate icon. If a shutdown then occurs the
module will display the appropriate icon. The original warning alarm icon will remain displayed.
Example:-
P S I
0 .8 11 .0
BAR
Charge alternator warning (all symbols steady)
Followed by….
Hz
R P M
0 .0
0
Charge alternator warning indicator still
present, common alarm indicator has
changed to a shutdown symbol and is
now flashing.
Also present is the flashing overspeed
LED.
Overspeed and Shutdown alarm Icons are displayed flashing. The original warning will remain displayed
as long at the triggering conditions remain. Any subsequent warnings or shutdowns that occur will be
displayed steady, therefore only the first-up shutdown will appear flashing.
