DSE Model 5110 Automatic Start Engine Management Instrumentation System
Part No. 057-009 5110 Operating Manual Issue 3.3 3/1/2006 45

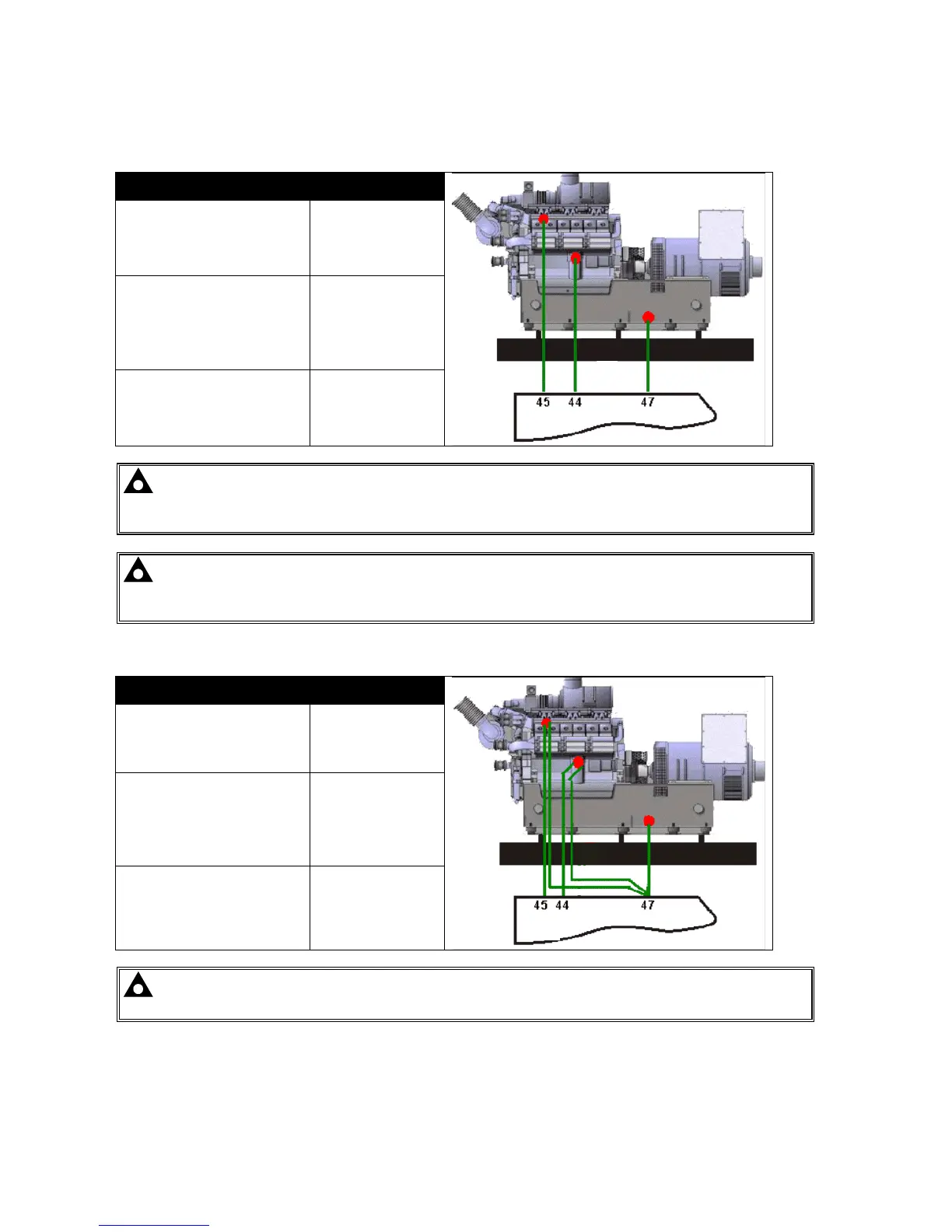

18.2 SENDER WIRING RECOMMENDATIONS
18.2.1 EARTH RETURN SENDERS
Connection Name Terminal Number
Oil pressure Sender 44
Coolant temperature
sender
45
Sender common 47
NOTE:- . It is important that terminal 47 (sender common) is soundly connected to an earth
point on the ENGINE BLOCK, not within the control panel, and must be a sound electrical
connection to the sender bodies.
NOTE:- . If you use PTFE insulating tape on the sender thread when using earth return
senders, ensure you do not insulate the entire thread as this will prevent the sender body from
being earthed via the engine block.
18.2.2 INSULATED RETURN SENDERS
Connection Name Terminal Number
Oil pressure Sender 44
Coolant temperature
sender
45
Sender common 47
NOTE:- . It is important that terminal 47 (sender common) is soundly connected to an earth
point on the ENGINE BLOCK, not within the control panel .
