DSE Model 5110 Automatic Start Engine Management Instrumentation System
Part No. 057-009 5110 Operating Manual Issue 3.3 3/1/2006 31
10 INSTALLATION INSTRUCTIONS
The model DSE 5110 Module has been designed for front panel mounting. Fixing is by 4 clips for easy
assembly.
10.1 PANEL CUT-OUT

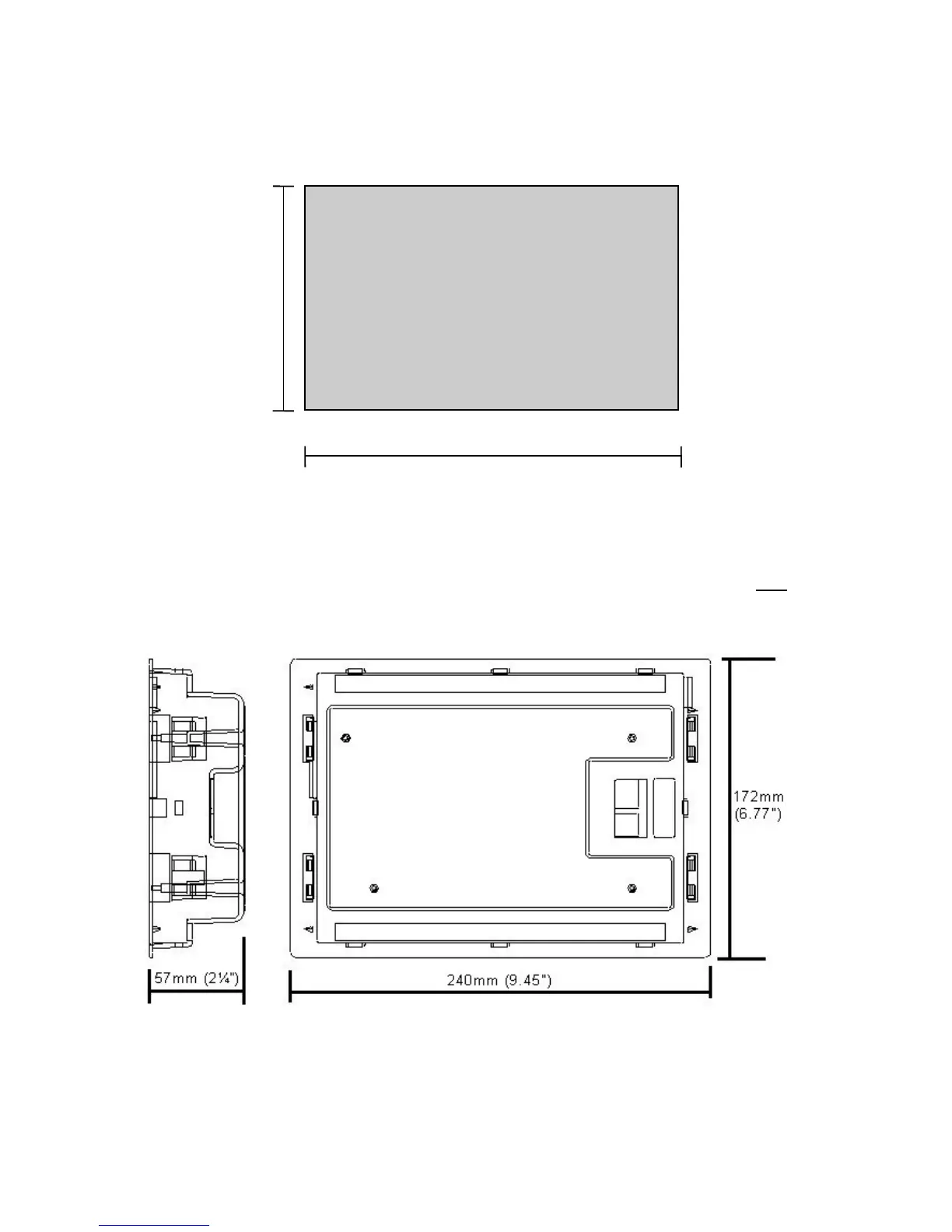

220.00mm
(8.7”)
FIG 3
Maximum panel thickness – 8mm (0.3”).
In conditions of excessive vibration the module should be mounted on suitable anti-vibration mountings.
10.2 COOLING
The module has been designed to operate over a wide temperature range -30 to +70º C. Allowances
should be made for the temperature rise within the control panel enclosure. Care should be taken NOT
to
mount possible heat sources near the module unless adequate ventilation is provided. The relative
humidity inside the control panel enclosure should not exceed 95%.
10.3 UNIT DIMENSIONS
Panel cutout 220mm x 160mm ( 8.7” x 6.3”)
160.00mm
(6.3”)
