DSE Model 5110 Automatic Start Engine Management Instrumentation System
Part No. 057-009 5110 Operating Manual Issue 3.3 3/1/2006 43
18 APPENDIX
18.1 ALTERNATIVE WIRING TOPOLOGIES
The 5110 series controllers can support different wiring topologies (AC systems) to suit the systems in
use worldwide. The ‘Typical connection diagram’ details how to connect the module when used in a 3
phase, 4 wire system (3 phase star connected alternators). Changes to this typical wiring diagram for
other AC systems are detailed below.
NOTE:- The factory default configuration for the 5110 module is for use with the 3 phase, 4
wire AC system. If another system is to be used, the controller must be reconfigured using the
front panel editor detailed elsewhere within this manual.

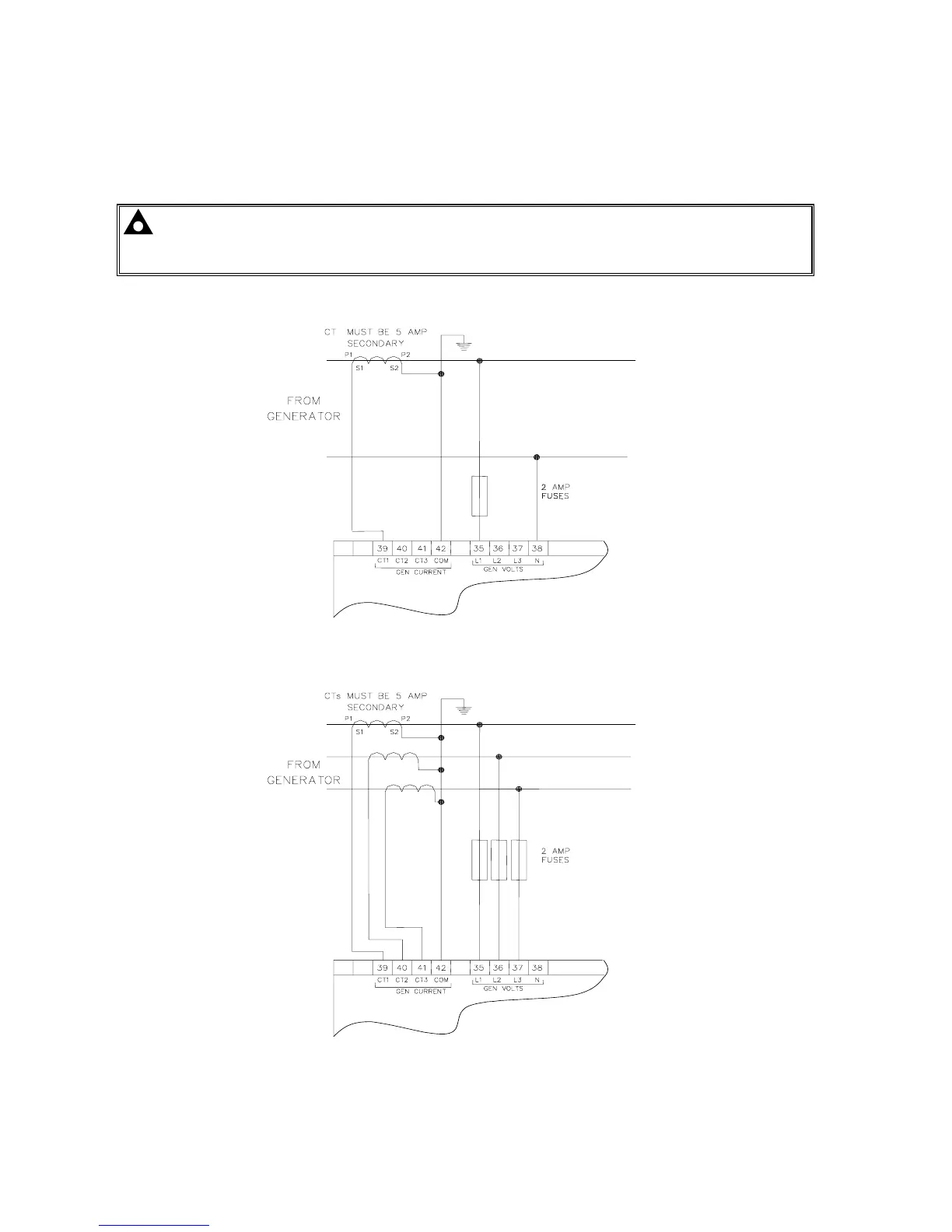

18.1.1 1 PHASE, 2 WIRE
Single phase alternator with neutral conductor.
18.1.2 3 PHASE, 3 WIRE
Three phase alternator DELTA.
