6 Part No. 057-009 5110 Operating Manual Issue 3.3 3/1/2006
2 IDENTIFICATION OF “ORIGINAL” 5110 AND “NEW” 5110
NOTE:- In April 2005, the 5110 controller was updated to include PC configuration. At this
time, a few minor changes to the front panel configuration were also made. This manual covers
both the “original” and the “new” 5110 controller (V2 onwards).
The “new” 5110 (V2 onwards) module is identified easily by the PRESENCE of the P810 module
configuration software on the rear of the module and the PRESENCE of the LOAD and
GENERATOR mimic on the fascia label. (see below)
The “original” 5110 module is identified easily by the LACK of the P810 module configuration
socket on the rear of the module and the LACK of the LOAD and GENERATOR mimic on the
fascia label. (see below)

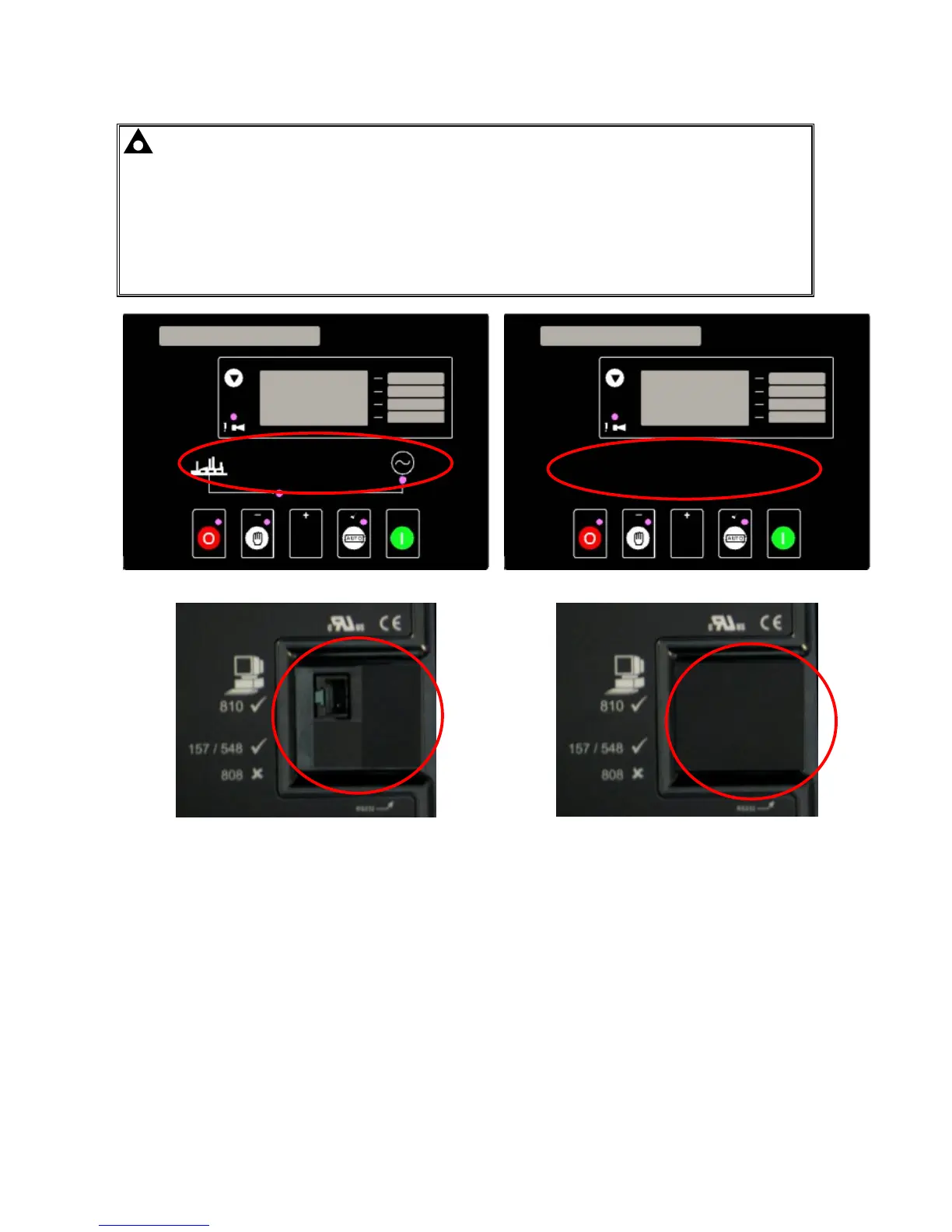

FASCIA OF NEW 5110 FASCIA OF ORIGINAL 5110
REAR OF NEW 5110 REAR OF ORIGINAL 5110
