22 Part No. 057-009 5110 Operating Manual Issue 3.3 3/1/2006
9 FRONT PANEL CONFIGURATION
In April 2005, the 5110 controller was updated to include PC configuration. At this time, a few minor
changes to the front panel configuration were also made.
This section details the configuration editor of the “new” 5110 module. For details of the configuration
editor for the “original” 5110, see the Appendix section of this manual.
To identify the “original” and “new” controllers, See the section entitled
Identification of “original” 5110
and “new” 5110
elsewhere in this manual.
NOTE:- PC Configuration is possible on the “new” 5110 controller (V2 onwards) in addition
to the Front Panel Configuration. PC configuration offers additional settings such as oil pressure
/ sender curve editing and the ability to load / save configuration files to disk.
9.1 ENTERING CONFIGURATION MODE
NOTE:- Configuration mode can ONLY be entered when the module is in the STOP mode
and the engine is at rest.

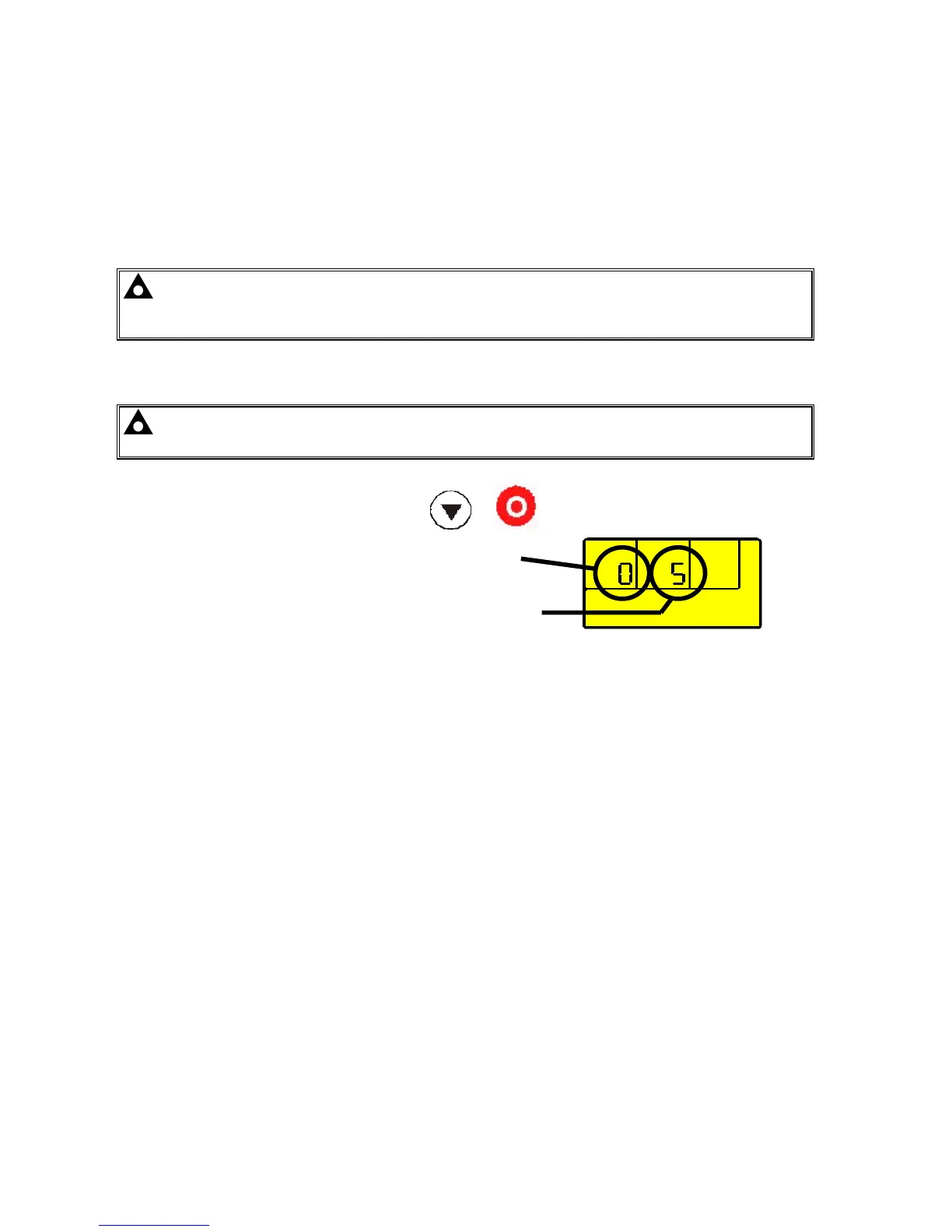

Press the DOWN and STOP buttons to enter
configuration mode.
and
The first configurable parameter is displayed.
In this example, the Start delay timer
(parameter 0) is currently set to 5s.
Parameter
(Start delay)
Current value
(5 seconds)
