7 POWER UP LCD DISPLAY
In April 2005, the 5110 controller was updated to include PC configuration. At this time, a few minor
changes to the front panel configuration were also made.
This section details the power up display of the “new” 5110 module.

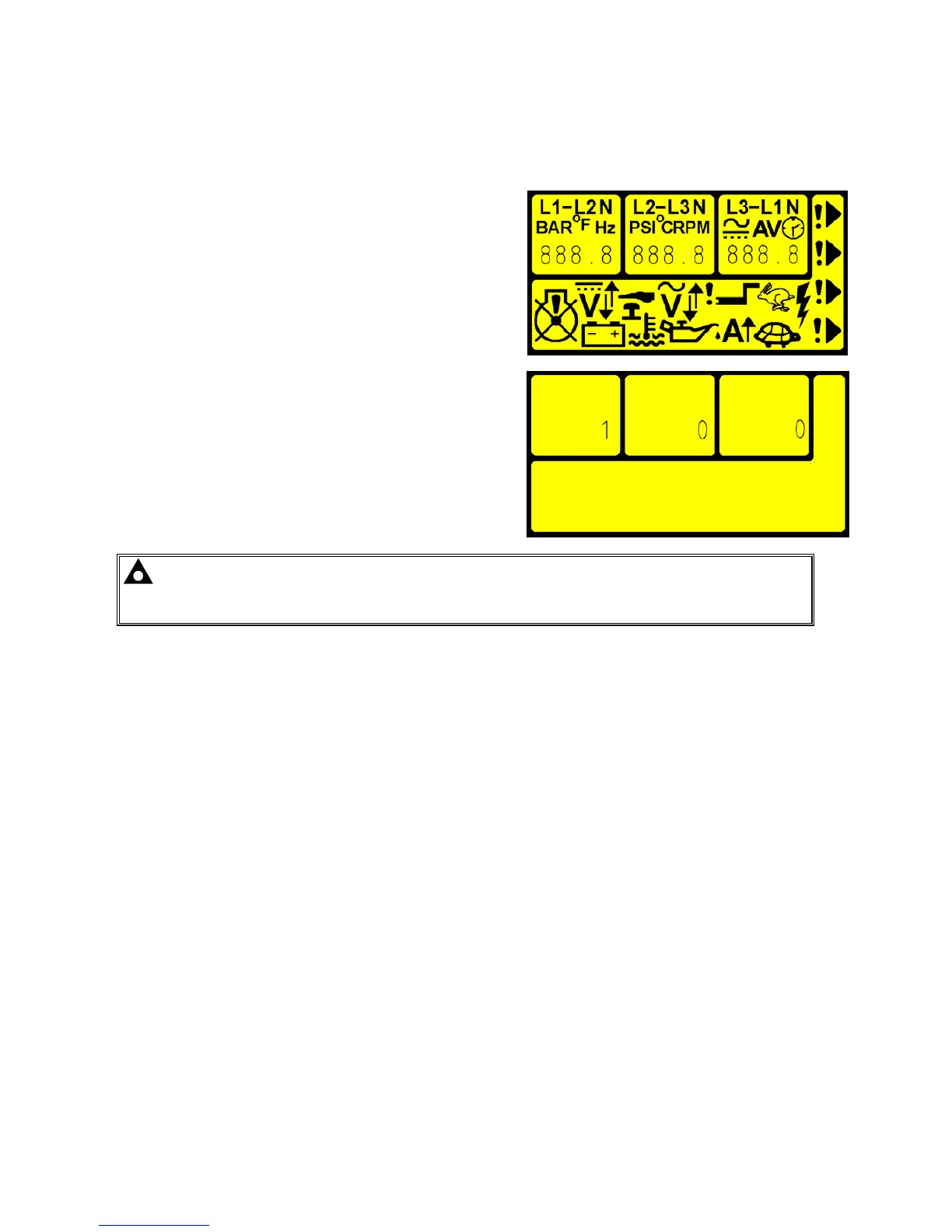

When DC power is first applied to the 5110 controller, a
short LCD test is performed that illuminates all LCD
segments.
After this, the module’s software revision number is
shown briefly.
For example, this display is showing software revision
1.00
NOTE:- The “
origina
l” 5110 controller does not have a power up LCD check or version
number display. The “
original
” controller is identified easily. See the section entitled
Identification of “original” 5110 and “new” 5110 (V2 onwards)
elsewhere in this manual.
