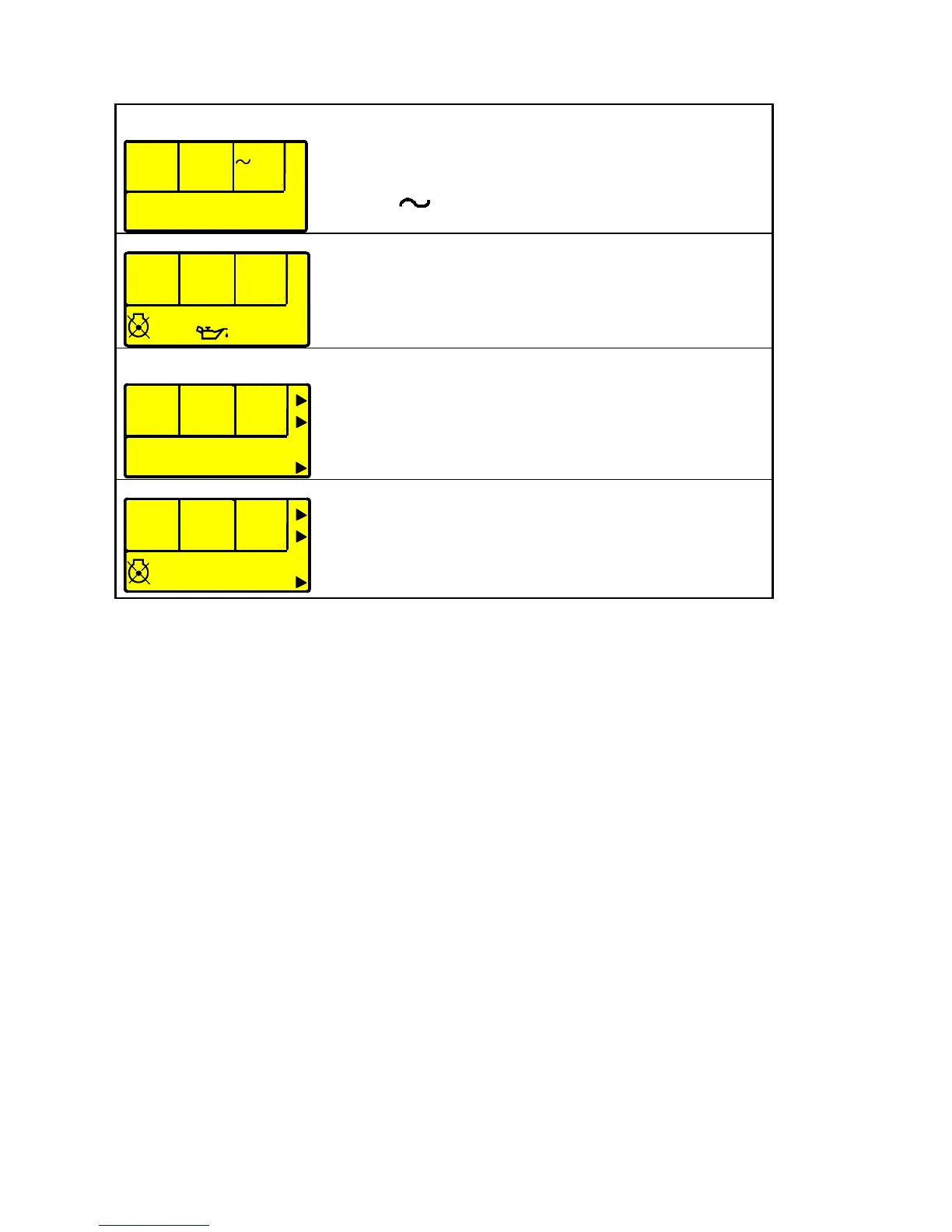

The LCD displays the various engine parameters such as ‘ENGINE
SPEED’, ‘OIL PRESSURE’, ‘HOURS RUN’, etc.
Each instrument is displayed with the appropriate units of measure.
In this example, the values being displayed are Generator phase to
phase AC
voltages V.
ALARM ICONS
P S I
0 .0 0 .0
BAR
The LCD also displays the exact nature of any alarm condition that
may have occurred such as LOW OIL PRESSURE using
appropriate icons. This allows very specific alarm conditions to be
brought to the operators’ attention. Refer to the ‘Protections’
section of this manual for details of the alarms.
USER DEFINED
INDICATIONS
The LCD displays the user-defined indications when configured
and active. The icons will illuminate and point to the appropriate
text insert label. These indications can be used to indicate internal
states (i.e. Engine Running, Safety On, etc).
USER DEFINED ALARMS
!
!
The LCD displays the user-defined alarms when configured and
active. The icons will illuminate and point to the appropriate text
insert label. These alarms can be used to indicate the operation of
external alarms (i.e. ‘Low Fuel Level’, ‘Low Coolant level’ etc) or to
indicate internal alarms (i.e. Fail to Stop, MPU fault, etc).
