Deep Sea Electronics Plc DSE5110

18 Part No. 057-009 5110 Operating Manual Issue 3.3 3/1/2006
6.3 VIEWING THE INSTRUMENTS
It is possible to manually scroll to display the different instruments by repeatedly operating the scroll
button. Once selected the instrument will remain on the LCD display until the user selects a different
instrument or after a period of inactivity the module will revert to the initial display (Hz/RPM).
Instrument Page Order:-
• Frequency / RPM
• AC Voltage Line-Neutral (<<<Not Shown on 3 phase 3 wire (Delta) version of the module)
• AC Voltage Line-Line
• AC Line Current
• Oil Pressure
• Coolant temperature
• Engine Hours Run
• DC Battery Voltage

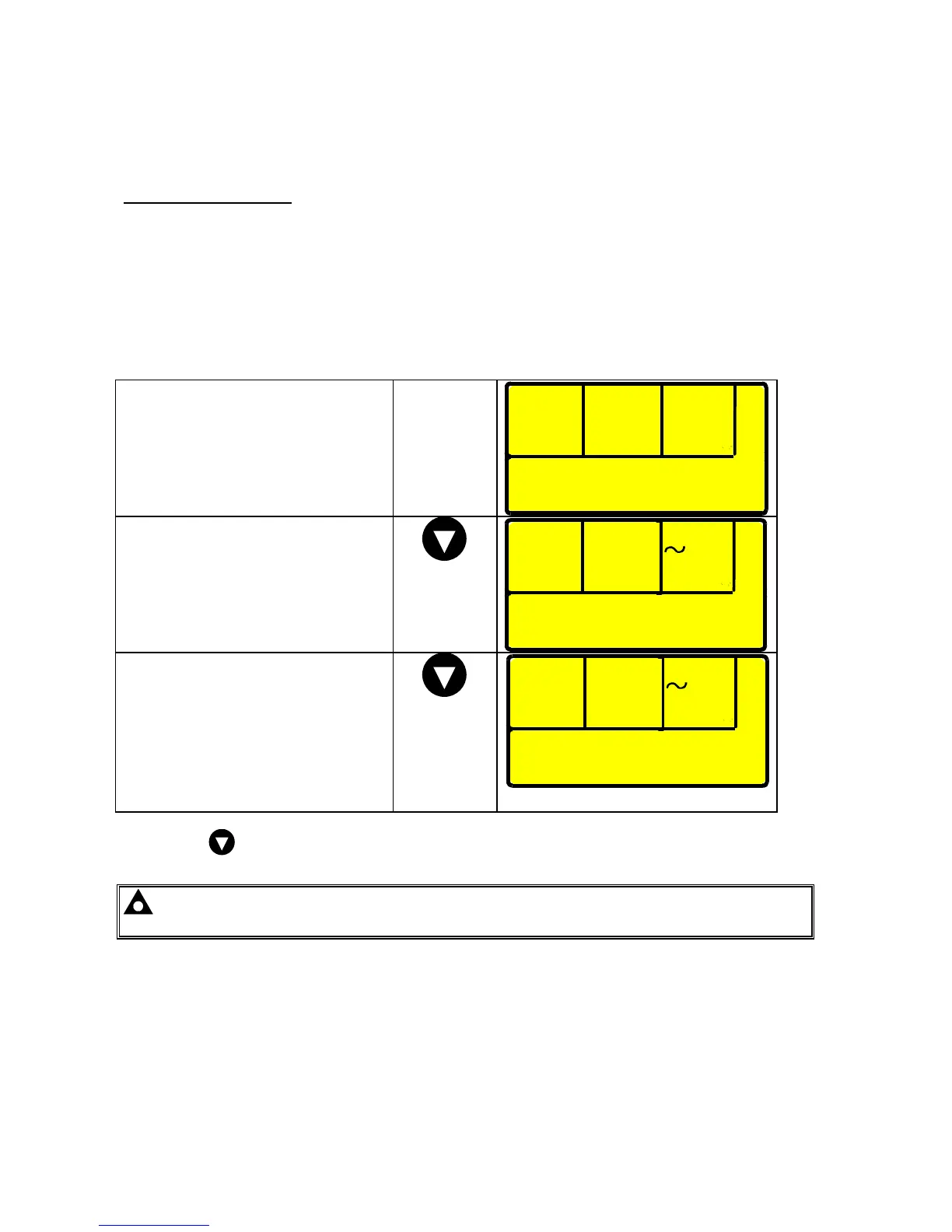

Manually Selecting an Instrument
Initial display (Hz/RPM)
Hz
RPM
51.0
1530
Pressing the DOWN button the LCD will
then show (Generator L-N voltages)
2
1
2
.
3
2
0
9
.
1
19
6
.
7
L1- N L2- N L 3- N
V
Pressing the DOWN button the LCD will
then show (Generator L-L voltages)
417.3 409.6 39 9 .
7
L1- L2 L2-L3 L 3 - L 1
V
Pressing the
button again will scroll through each individual instrument eventually returning to the
original instrument displayed.
NOTE:-Once selected the instrument will remain on the LCD display until the user selects a
different instrument or after a period of inactivity the module will revert to the initial display.
