Deep Sea Electronics Plc DSE5110

42 Part No. 057-009 5110 Operating Manual Issue 3.3 3/1/2006

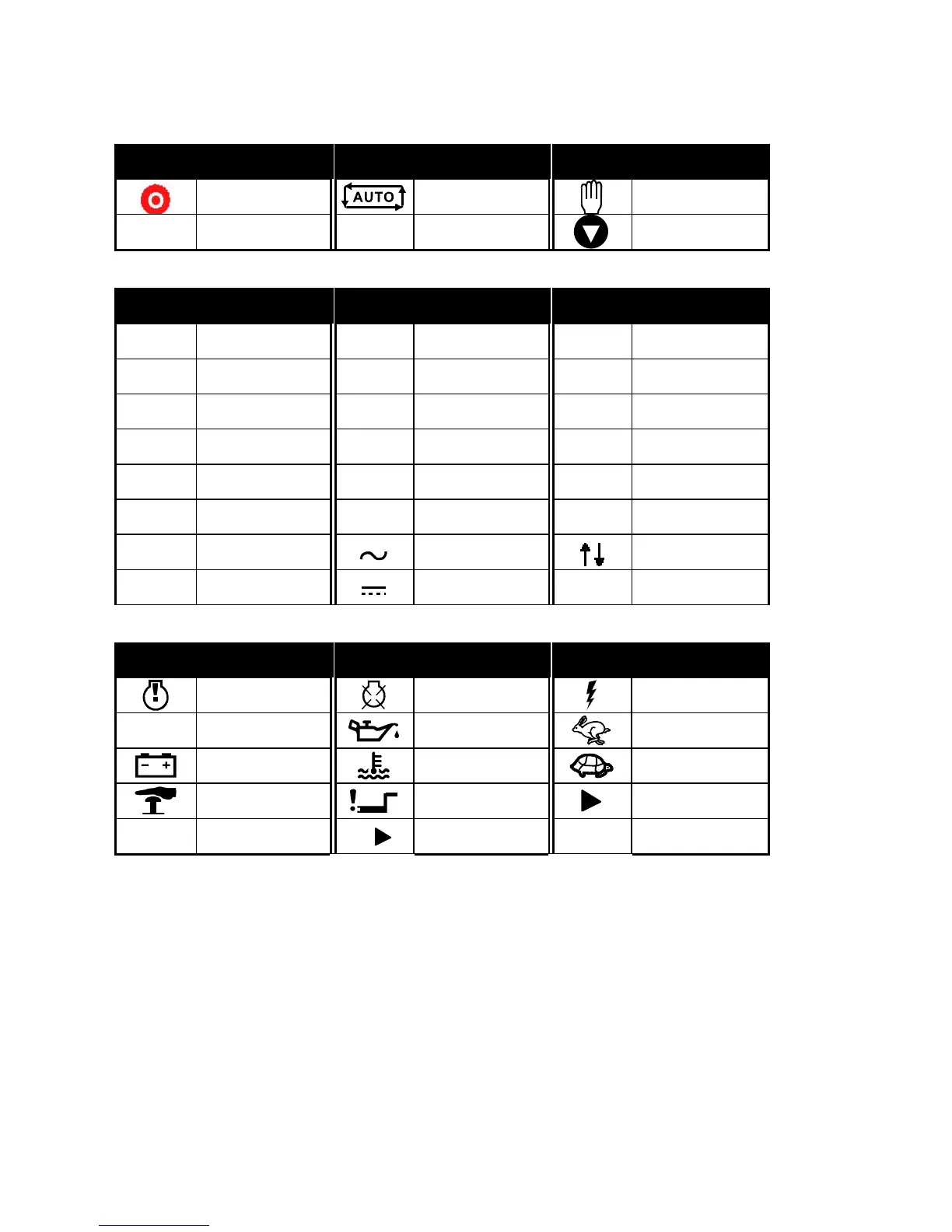

17 ICONS AND LCD IDENTIFICATION
17.1 PUSH BUTTONS
Display Description Display Description Display Description
Stop/Reset Auto mode Manual mode
I
Start (when in
manual mode)
Scroll
17.2 STATUS / MEASUREMENT UNITS
Display Description Display Description Display Description
L 1
Phase
L 2
Phase
L3
Phase
L 1 - N
Phase - Neutral
L 2 - N
Phase - Neutral
L3- N
Phase -Neutral
L 1- L 2
Phase - Phase
L 2- L 3
Phase - Phase
L3- L1
Phase - Phase
BAR
Pressure
HPa
KPa Oil Pressure
Units
PSI
Pressure
V
Voltage
o
F
Temperature
Hz
Frequency
A
Amperes
o
C
Temperature
RPM
Speed
¤
Hours Run
AC
Parameter being
adjusted
DC
17.3 ALARM INDICATIONS
Display Description Display Description Display Description
Warning Alarm
Shutdown Alarm
Electrical Trip
Low Oil Pressure
Over-speed
Charge Fail
High Coolant
Temperature
Under-speed
Emergency Stop
Fail to start (Over-
crank)
Auxiliary
Indication
!
Auxiliary Alarm
(Warning or Shutdown)
