Edit Configuration – Expansion
100
4.14.4 DSE2152 ANALOGUE OUTPUT MODULE

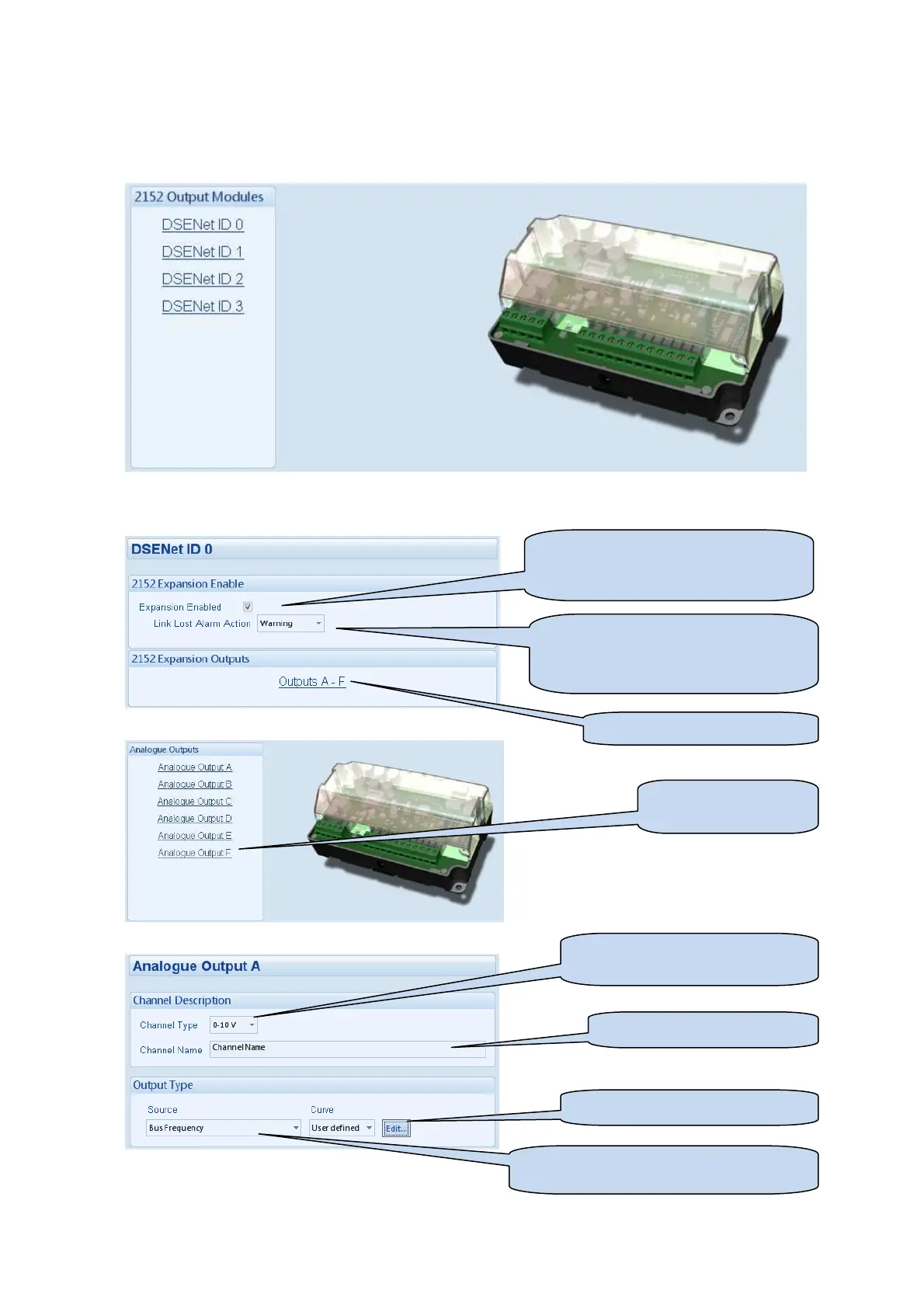

Select the DSENet ID of the output expansion you wish to configure. The ID of the expansion output module
is set by rotary decimal switch accessible under the removable cover of the device.
The following is then shown:
Click to enable or disable the option.
The relevant values below will appear
greyed out if the alarm is disabled.
Select the alarm type of the
alarm. This alarm will take action if the
expansion module is not detected by
Click to configure the outputs
Then select the output
you want to configure
Select the required function of the
output. 0-10V or 4-20mA
Select which measured parameter is to be
used to drive the output channel
Name the output appropriately
Edit the sensor curve if required.
To Next Page
