Edit Configuration - Generator
48
4.7.4 GENERATOR CURRENT
The Generator Current page is subdivided into smaller sections.
Select the required section with the mouse.

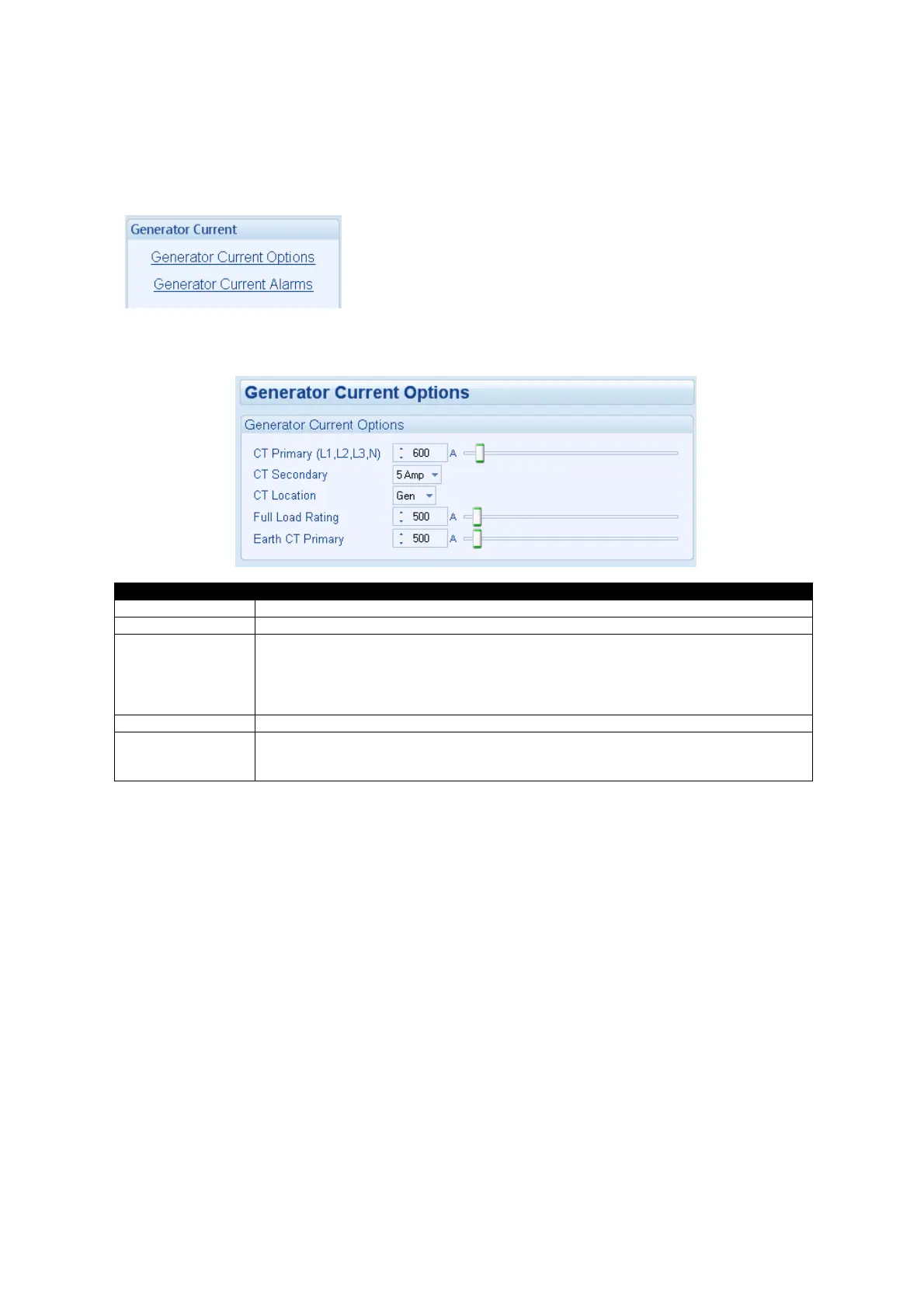

4.7.4.1 GENERATOR CURRENT OPTIONS
Timer
Description
CT Primary Primary rating of the Current Transformers
CT Secondary Secondary rating of the Current Transformers
CT Location Determine the location of the Current Transformers
Gen: The CTs are in the feed from the generator and shows only generator current and
power
Load: The CTs are in the common feed to the load. The module displays load current
and power, provided by the mains supply or the generator.
Full Load Rating Full load rating (100% rating) of the generator
Earth CT Primary Primary rating of the Current Transformer used for earth fault (optional)
Where No Earth Fault CT is fitted, ensure the Earth Fault Alarm is disabled and the CT
common is wired correctly.
To Next Page
