DEEP SEA ELECTRONICS DSE7400 - Outputs; Digital Outputs

Edit Configuration - Outputs
30
4.5 OUTPUTS
4.5.1 DIGITAL OUTPUTS
The list of output sources available for configuration of the module outputs is listed in the section entitled
Output Sources.

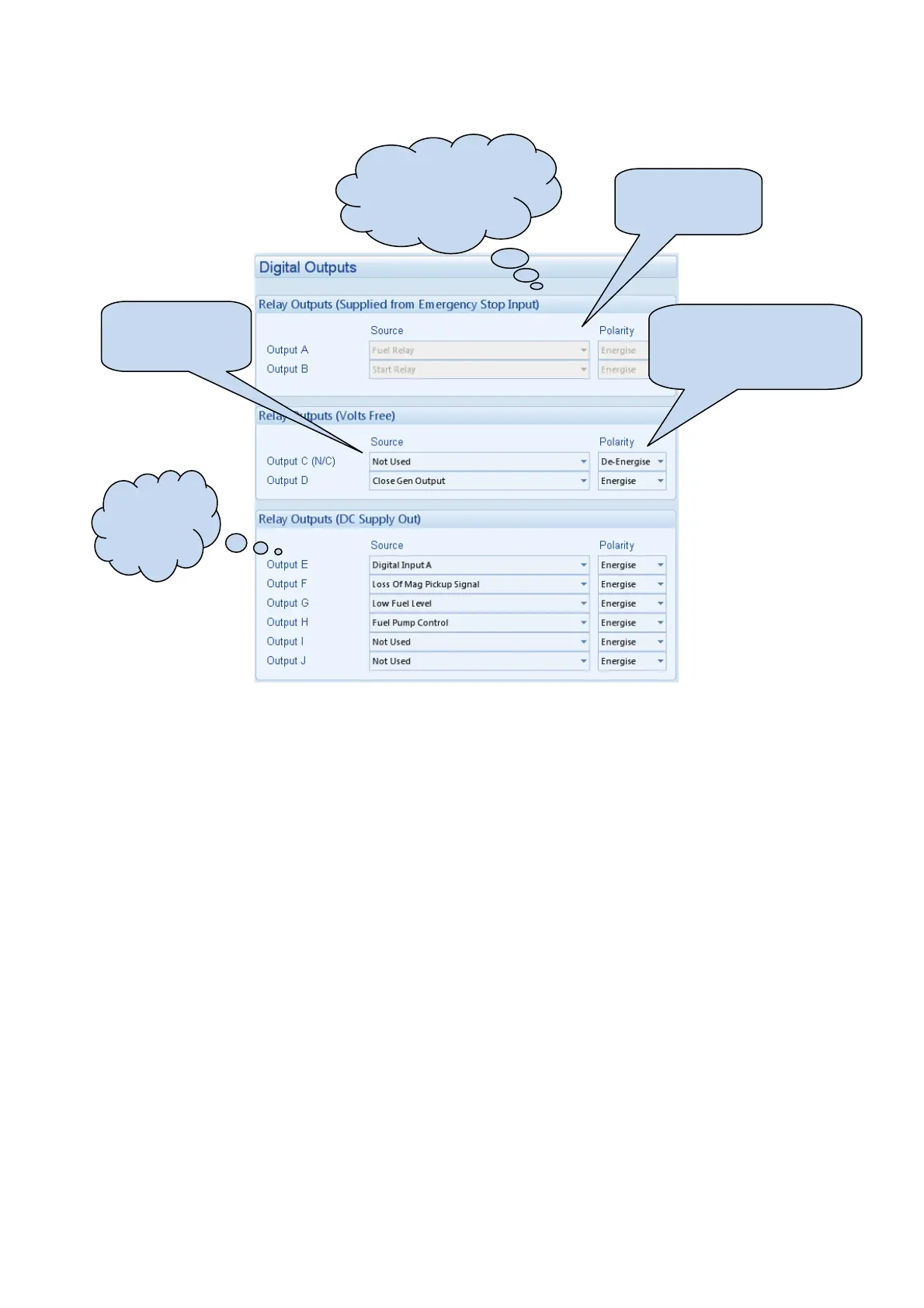

Select if the relay is to
energise or de-energise
upon activation of the
source
Select what the
output is to be
used to control
These labels
match the
typical wiring
diagram
These are greyed out as
they are fixed, not
adjustable
unless a CAN
engine has been
selected
Outputs A & B
applicable to
DSE8610/DSE86
20 only
