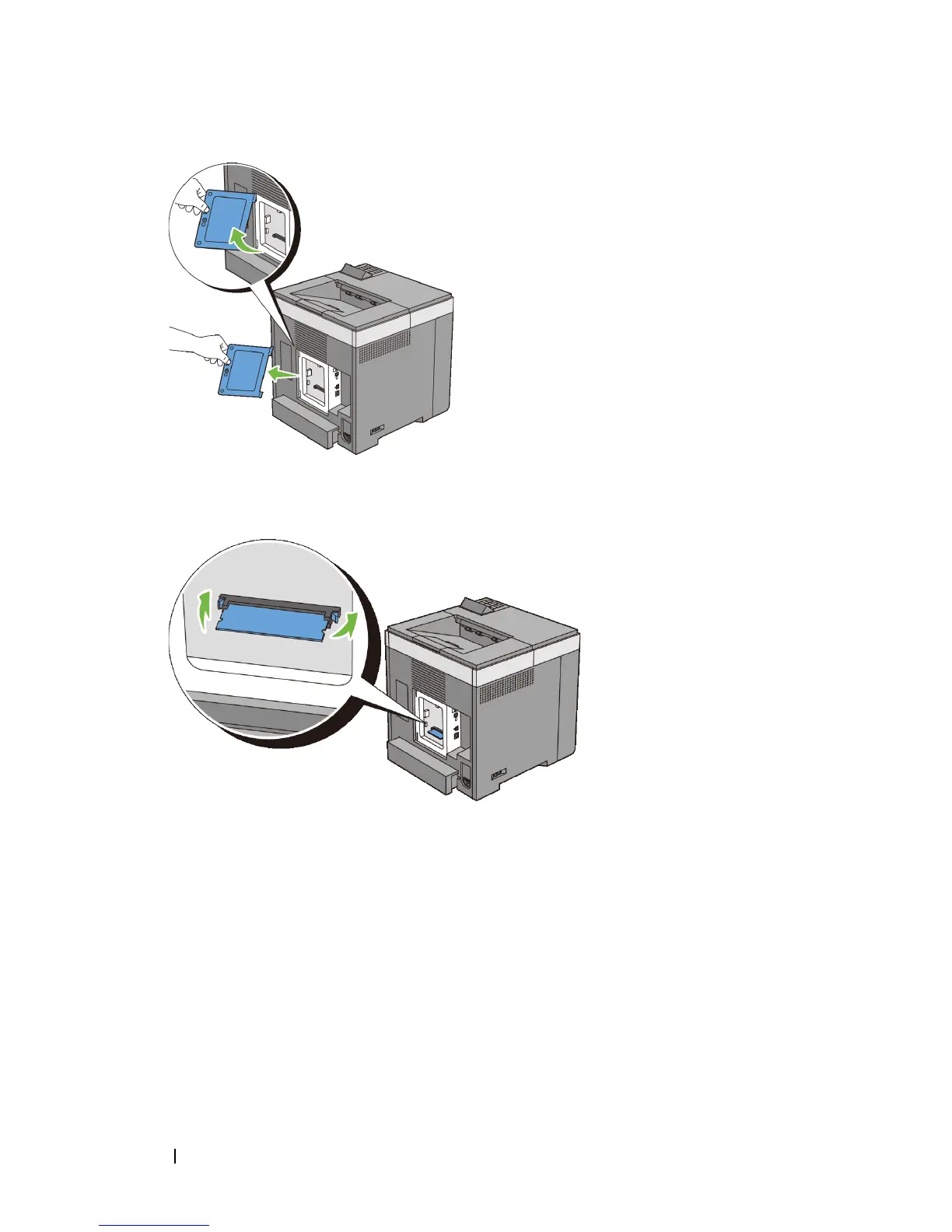

Push the clips on both sides of the slot outward to raise the memory module

up.

Hold the memory module and pull it straight out.
