Dell 2150cn - Page 44

To Next Page

To Previous Page

42 Installing Optional Accessories

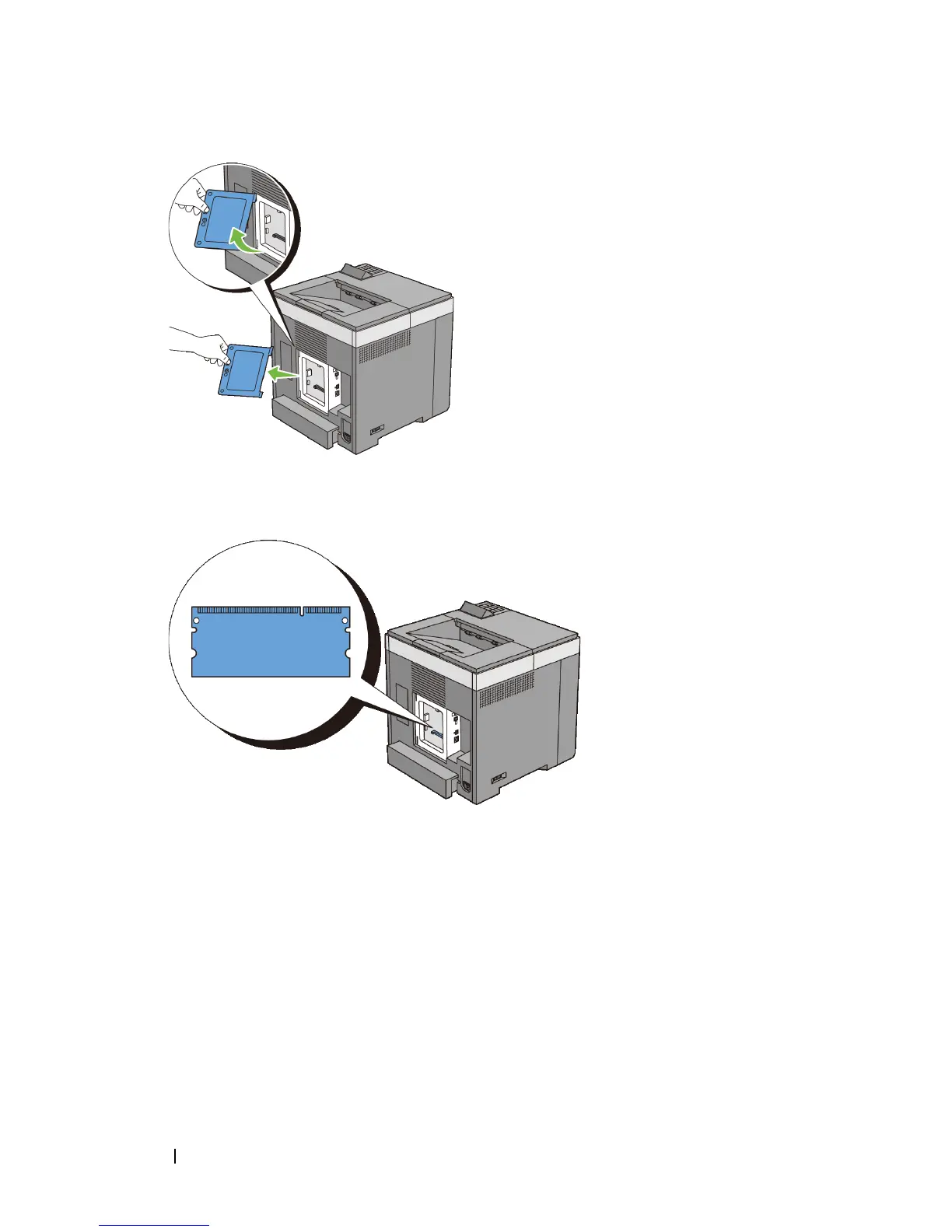

Align the connector of the memory module with the slot, and insert the

memory module into the slot.

Push the memory module firmly into the slot.
