CAUTION: To prevent damage, do not expose the toner cartridge to light for more than a few minutes.
CAUTION: Do not touch the green underside of the toner cartridge. Use the handle on the cartridge to avoid touching
this area.

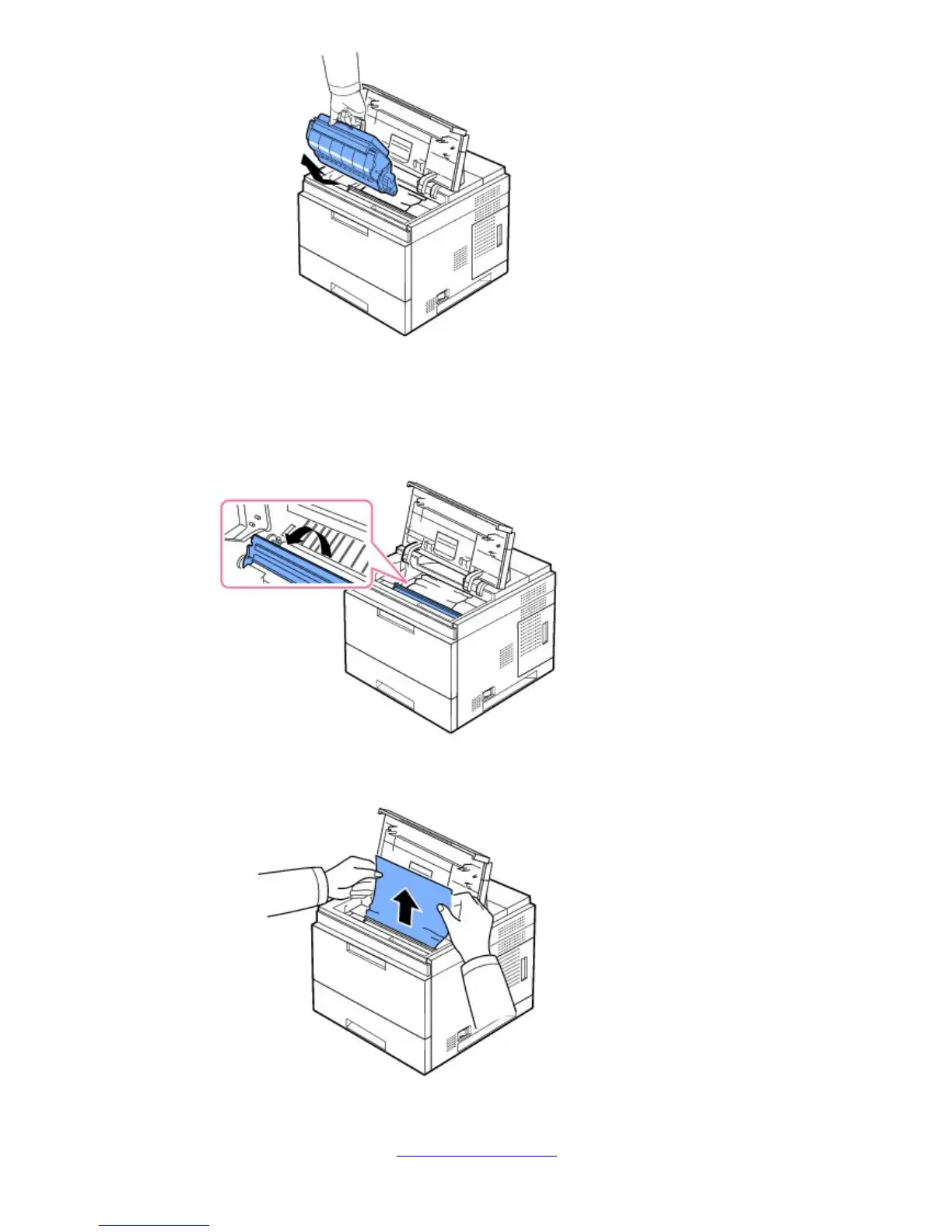

2. Carefully lift up the feed guide.
3. Remove the jammed paper by gently pulling it straight out.
If you cannot see the paper in this area or if there is any resistance removing the paper, stop pulling and go to the
paper exit area. For more information, see
"In the paper exit area".
