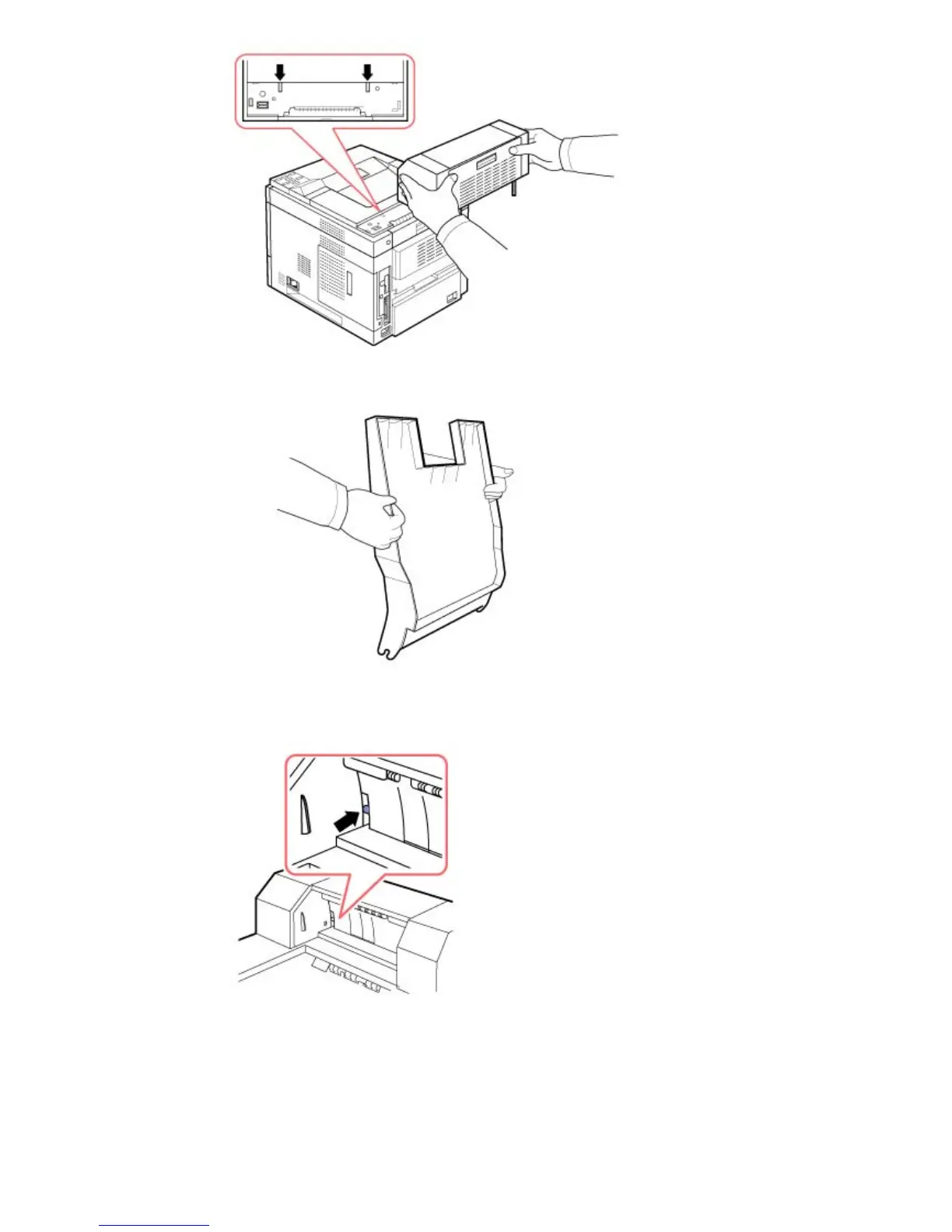

5. Grasp the Output Expander stacker as shown.

6. Locate the slots on the Output Expander where the stacker will be inserted.

7. Align the stacker, as shown.
