Dell Alienware 17

To Next Page

To Previous Page

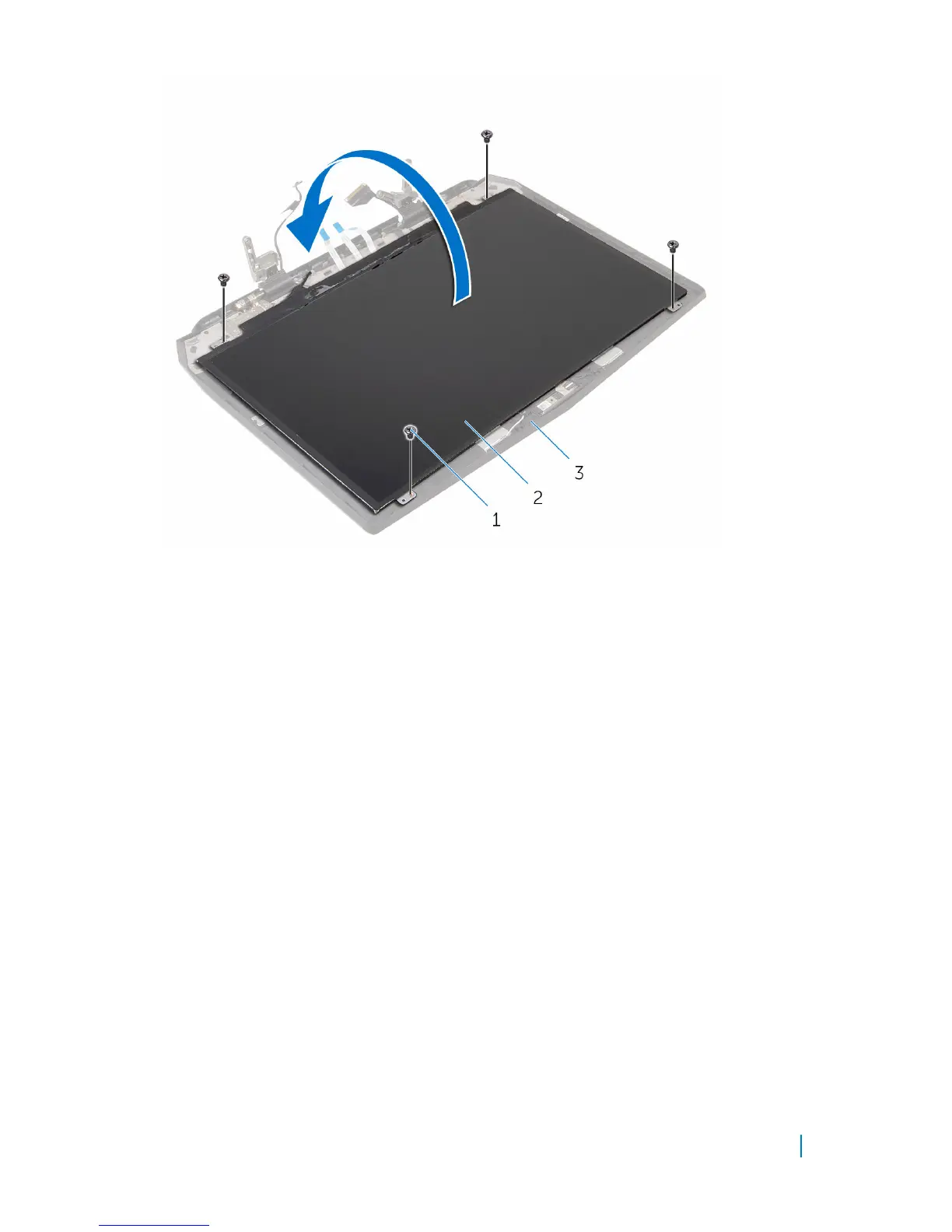

1 screws (4) 2 display panel

3 display back-cover

3 Lift the latch and disconnect the display cable from the display panel.

4 Lift the display panel off the display assembly.

Removing the display panel 112
