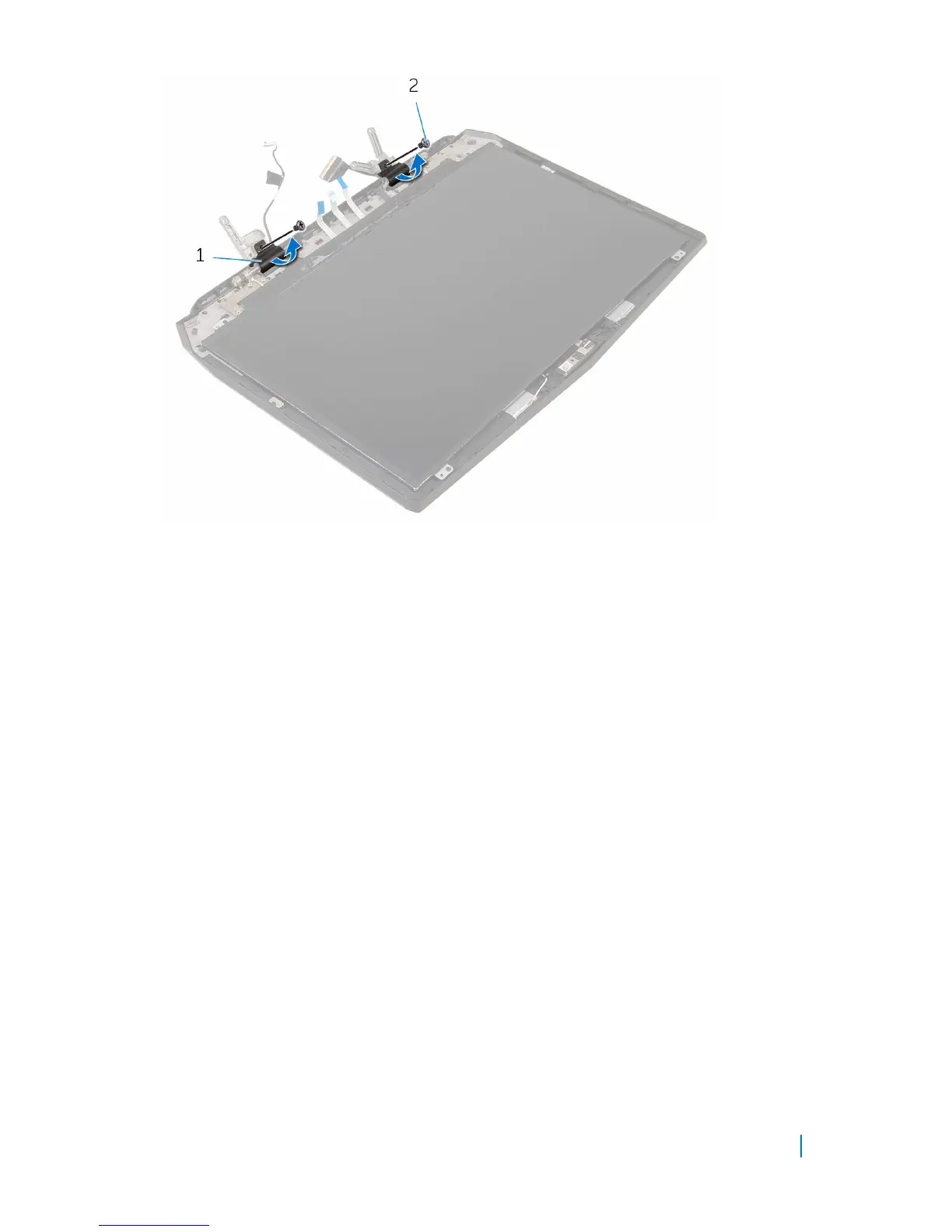

1 hinge caps (2) 2 screws (2)

3 Remove the screws that secure the display hinges to the display back-cover.

4 Lift the display hinges off the display back-cover.

Removing the display hinges 116
