Dell Alienware 17

To Next Page

To Previous Page

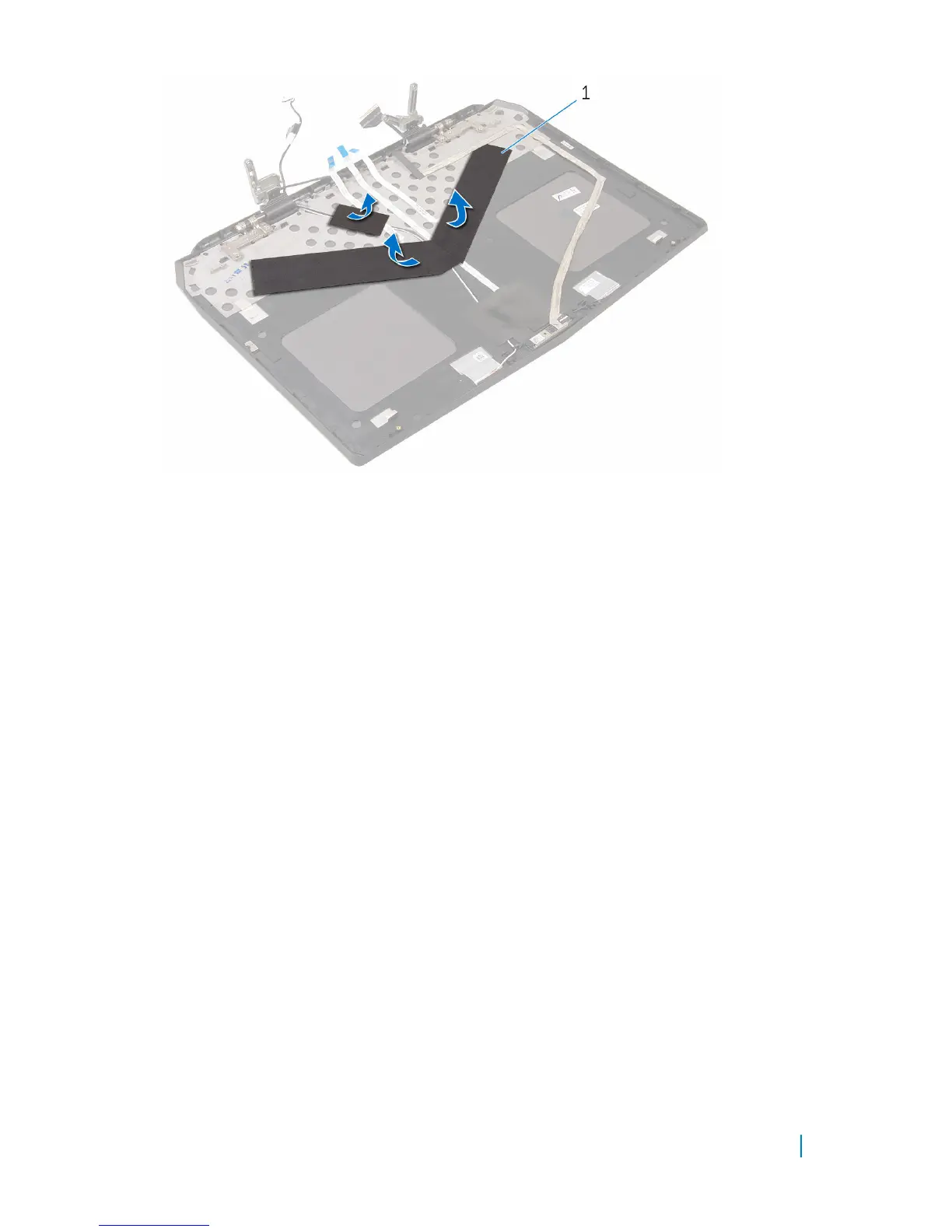

1 mylar

2 Lift the display-board cables and the display-panel AlienFX LEDs off the display

back-cover.

Removing the display-panel AlienFX LEDs 130
